Xiamen Better Silicone Rubber Co., Ltd

Silicone Keymat

Share to:

  • SKD-
  • Better
  • 3926901000
Quantity:

Silicone Keymat

Silicone Rubber Keymat, known as Silicone Keypad & Silicone Keyboard, Silicone Rubber Button, which is made of elastomeric translucent & transparent silicone rubber material by compression mold tooling, and is widely used in industrial electronic products, medical products, consumer products as reliable switches performance.

Silicone Keymat & Keypad Features

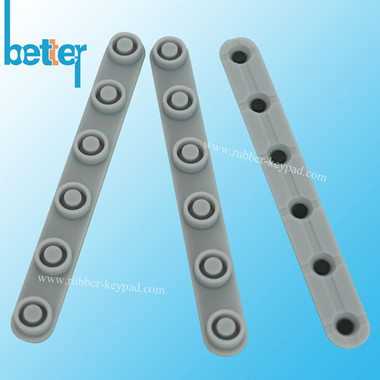

Rubber Keypad    Rubber Button
Silk Scree
n Printing Silico
ne Keymat                   Single, 3, 5 & 6 Rubber Key Mat & Pad

Characters or symbols on silicon keypad’s surface                   As a rubber button pad or sealing pad for switch control

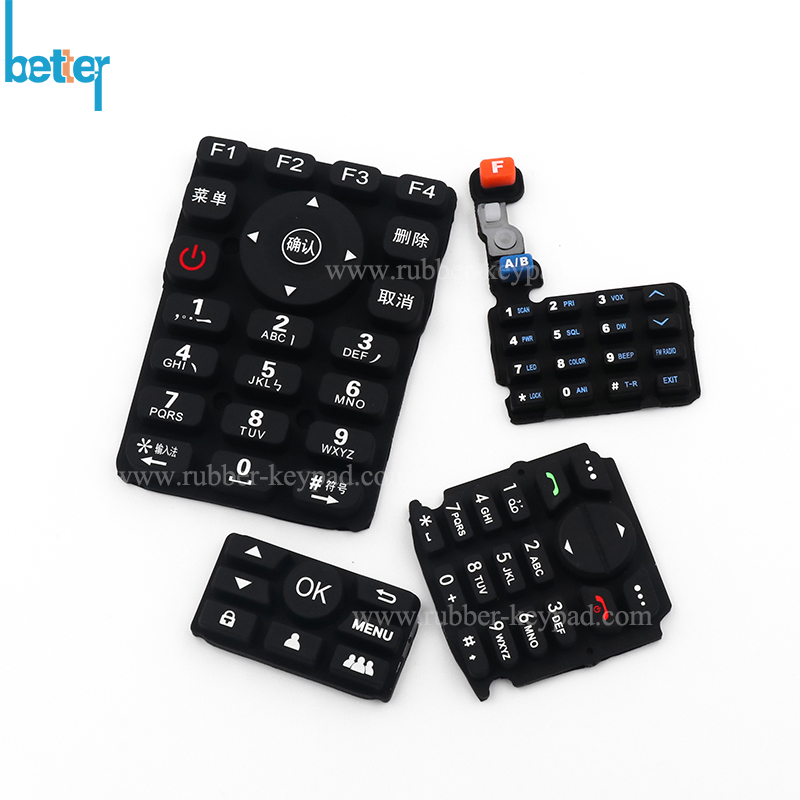

Laser Engraving Keypad    Remote Control Keypad
Laser Cutting Silicon Keymat                          Remote Control Silicon Keymat & Keyboard

Laser Etched Process for Desired Backlight Symbols             Multi-Process for TV Set, Air Condition & Fan Remote Controller
Epoxy Coating Rubber Keymat    Conductive Keyboard

Epoxy Coating Silicone Keymat                       Electrically Conductive Ink Printing Keymat

Epoxy Resin Coating for Keypad's Surface Protection             Transfer Conductive Printing for Keyboard Conduction

PU Coating Silicon Keypad    graphite rubber keypad
PU Coating Silicone Keymat                             Graphite Pads & Carbon Pill Silicone Keymat

PU ink Coating for Matte & Light Button Icons Protection     Black Carbon Pills for Keypads Conduction
Plastic Rubber Keyboard    Metal Pills Keyboard

P + R Plastic Rubber Keymat                               Silicone Keymat with Metal Pills

Silicone Rubber Keypad Glued Plastic Button Caps                Copper & Golden Pills for Keypads Conductive

Overmoulding Rubber Keypad    nickel pill rubber keypad
Different Hardness Silicone Rubber Keymat    Silicon Keymat with Conductive Nickle Pads

Overmolding buttons + pads, Dual durometer Keypad              Keyboard Pill which mixed with conductive Nickle Powder
fluorescent silicone keyboard    Silicone Membrane Keyboard

Fluorescent & Glow-in-Dark Keymat             Silicone Rubber Keymats with Metal Domes

Mixed Fluorescent powder with silicone before molded        Backing Adhesive Metal Domes + Silicone Rubber Keyboard
Keypad Design Guide

Keypad Contact Types

Silicone Rubber Keypad Contacts

Carbon Pill
Conductive Ink Printing
Metal Domes
Metal Conductive Pill
Life Time
About 10 Millions
About 10 Millions
About 10 Millions
Above 10 Millions
Resistance
10-100 Ohms
50-350 Ohms
1-100 Ohms
1-100 Ohms
Diameter
1.5-8mm
Available
Available
Available
Thickness
0.2-0.6mm
10-20 Microns
0.05mm-0.1mm
0.05mm-2mm
Advantage
Lower Resistance Stable Life Time
Any Shape is Available
Lower Resistance
Lower Resistance
DisAdvantage
Shape Limted
Resistance Limited
Bad Tactile Feel eithout Dust-free Functions
Low Production Efficiency, High Unit Price

Keypad Legend Types and Surface Protection


Legends
Screen Printing Keypad
Laser Etched Keypad
Molded Legends Keypad




Protective Cover

Color-filled-in Keypad
PU Spraing Coating Keypad (Matte&Bright Surface)
Matte Smooth Coating Keypad
Epoxy Coating Keypad
Plastic + Rubber Keypad (Plastic Key Cap & Cover)
Metal + Rubber Keypad (Metal Key Cover)

Travel /Stroke Sketch

Typical Force/Stroke Curve

Keypad Processes
Our Company

Xiamen Better Silicone Co., Ltd is specialized in designing and manufacturing all kinds and configurations of Silicone Rubber Products for a wide range of applications. Our  silicone rubber keypad solutions combine excellent conductivity, reliability and long life span, which can meet all the environment's requirements and fit your individual needs.



Quick Quotation Requirements

1. Offer 2D & 3D Design drawings or samples

2. Keypads Legends demands.

3.Keypad's Surface Protective Coating Demands.

4. Keypad's Conduction Ways or Resistance Demands


Better Silicone Keypad

Xiamen Better Silicone Rubber Co., Ltd is specialized in designing and manufacturing all kinds and configurations of Silicone Rubber Keypads for a wide range of applications....
