Molded Rubber Boots & Molded Rubber Bellow is also known as rubber expansion joints, rubber boots, rubber corrugated pipe and rubber sylphon bellows. Rubber bellow is an essential part of many different systems, such as industrial systems and medical systems.
  • RB-1

  • Better

  • 3926901000

Molded Rubber Boots and Rubber Bellows

Molded Rubber Boots & Molded Rubber Bellow is also known as rubber expansion joints, rubber boots, rubber corrugated pipe and rubber sylphon bellows. Rubber Bellow is an essential part of many different systems, such as industrial systems and medical systems.

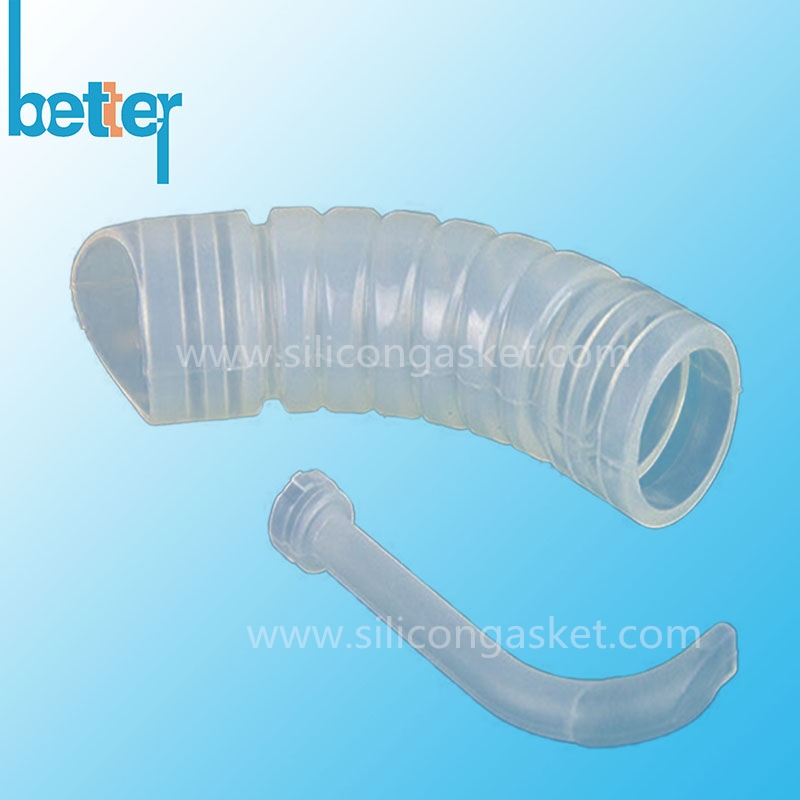

Molded Rubber Bellow
Rubber Bellow & Rubber Boot Function

Molded Rubber Bellow are flexible seals used in a range of applications for sealing dust and other environmental elements in applications with a calculated range of motion. Rubber Bellow is a kind of sealing products which is usually made of springing material and through the molding way to make it in the ring ship. It is generally used to seal the fluid liquid or gas, often works as a part of the whole set of sealing parts.

Molded Rubber Boots provides a wide range of rubber support with a reinforcement that depends on the pressure required. These types of Rubber Bellows isolate noise and vibration, when it comes to damage caused by vibration and movement, each rubber bellow protects piping systems by avoiding such hazards.

Molded Rubber Boots & Rubber Bellow Materials

Molded Rubber Bellow  material depends on the using purpose and the working environments, not on the price. Our factory can provide the products made from different materials for the diversified requirements. main material contains: NR, CR, NBR, SBR, VITON, SILICON, HNBR, etc.

Molded Rubber Boot & Rubber Bellow Production Process

Mode of production: custom made
rubber boots use three rubber molding methods, compression molding, transfer molding and rubber injection molding. Each of these methods has certain attributes that would be relevant based on the criteria of the application.

Surface treatment: Talc, silicone grease, graphite coating or pressure sensitive adhesive (PSA).

Rubber Boots & Rubber Bellow Features

Rubber Bellows come in diameters from 1" to 120" and can be made with any elastomer material. Various movement requirements can be met; Non-standard designs are manufactured as required;
Compensating and damping material properties;
High working pressure, anti-burst and good elasticity;
long service life and high operational reliability.

Rubber Boot & Rubber Bellow Advantages

High Flow Capacity: the smooth interior walls and low friction of
rubber bellow result in low flow resistance and high volume;
Corrosion Resistant:
rubber boot is non-conductors of electricity and immune to electro chemical reactions caused by acids, bases, and salts that cause corrosion in metals.
Low Installation costs:
rubber bellow is lightweight and is installed with solvent cement and gasket joint. Ease of installation reduces the installation costs;
Environment-friendly: rubber bellow can be recycled.

Rubber Bellow Applications

Damp oscillation, noise and vibration
Compensate expansion caused by differences in temperature
Provide an elastic wall seal for penetration assemblies
Compensate pipeline movements aboard ship
Relieve system strain due to thermal change, wear or settling
Compensate for misalignment
