What are Conductive Contact in Rubber Keypads?

Views: 12     Author: rubber-keypad.com     Publish Time: 2025-05-09      Origin: Site

Conductive pill is the contact medium between the rubber keypad and PCB board. A typical silicone rubber keypad involves designing a flex key webbing around the perimeter of the button. When the key is pressed, the flex key webbing allows the center of the key to make contact with the circuit, then produces a tactile response for user.

In rubber keypads, there are typically two methods of making contact with the actual switch: dome switches or conductive pills.

The basic raw material of conductive pills are typically manufactured from a silicone.

There are four prevalent conductive materials—carbon black, gold-coated, silver-coated, and nickel particles.


Carbon Black Particles (Conductive "Black Dots")

· Composition

Amorphous carbon clusters (10-50μm) with sp⊃2; hybridized structures

· Conductivity‌

10⊃2;–10⊃3; Ω·cm

· Advantages‌

Cost-effective.

Stable contact resistance over 1 million cycles.

· Limitations‌

Susceptible to arcing in high-voltage (>12V) applications.

15-25% resistance drift under 85°C/85% RH aging tests.

· Application Example

The most common conductive way. Such as, TV remote controls, etc. Silicone rubber keypad for electronic products.

Shape

Type

Diameter

Thickness

Resistance
round, square or customized smooth or texture surface 2-8mm
0.4-0.6mm

<100ohms

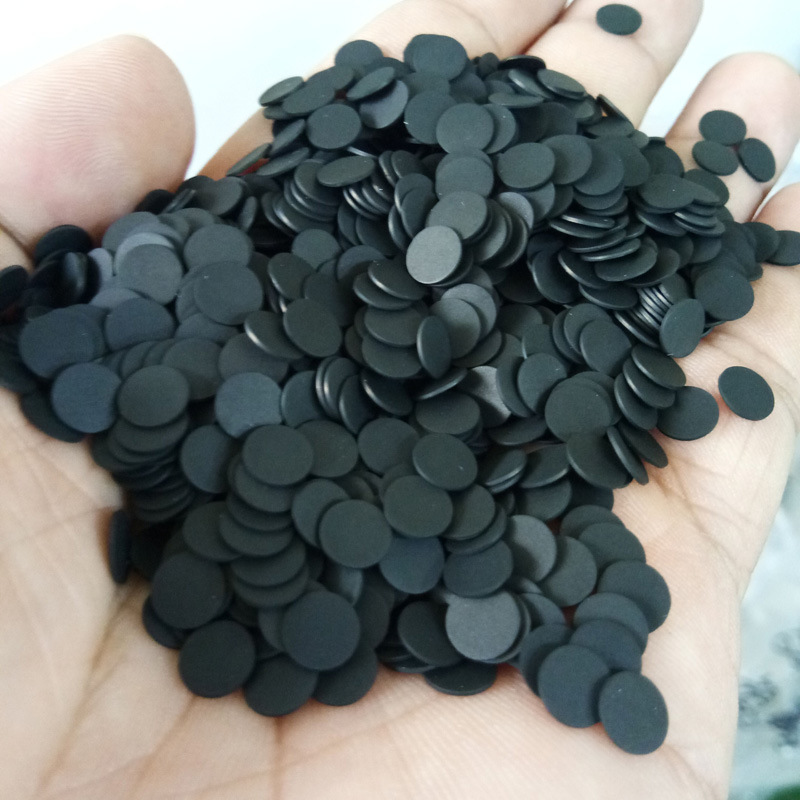

conductive carbon pills

Smooth Surface Carbon Pill

Conductive Carbon Black Particles

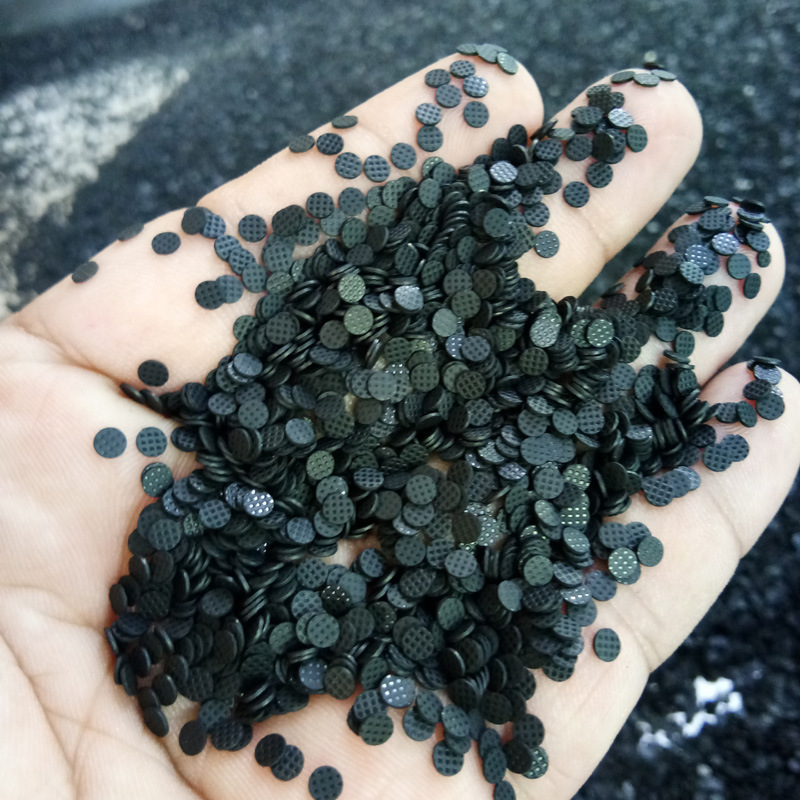

Texture Surface Carbon Pill


Gold-Coated Particles(Conductive Glod Pills)

· Structure‌

Polymer cores (30-80μm) with 0.2-0.5μm gold plating

· Conductivity‌

5-20 mΩ·cm (Ohmic behavior)

· Key Metrics‌

Contact resistance <100mΩ maintained after 10⁶ cycles

Corrosion resistance up to 200°C (ideal for automotive ECUs)

· Trade-offs‌

Material cost higher than carbon

Requires pulse plating for uniform coverage

· Application

Silicone rubber keypad for auto industry, medical device

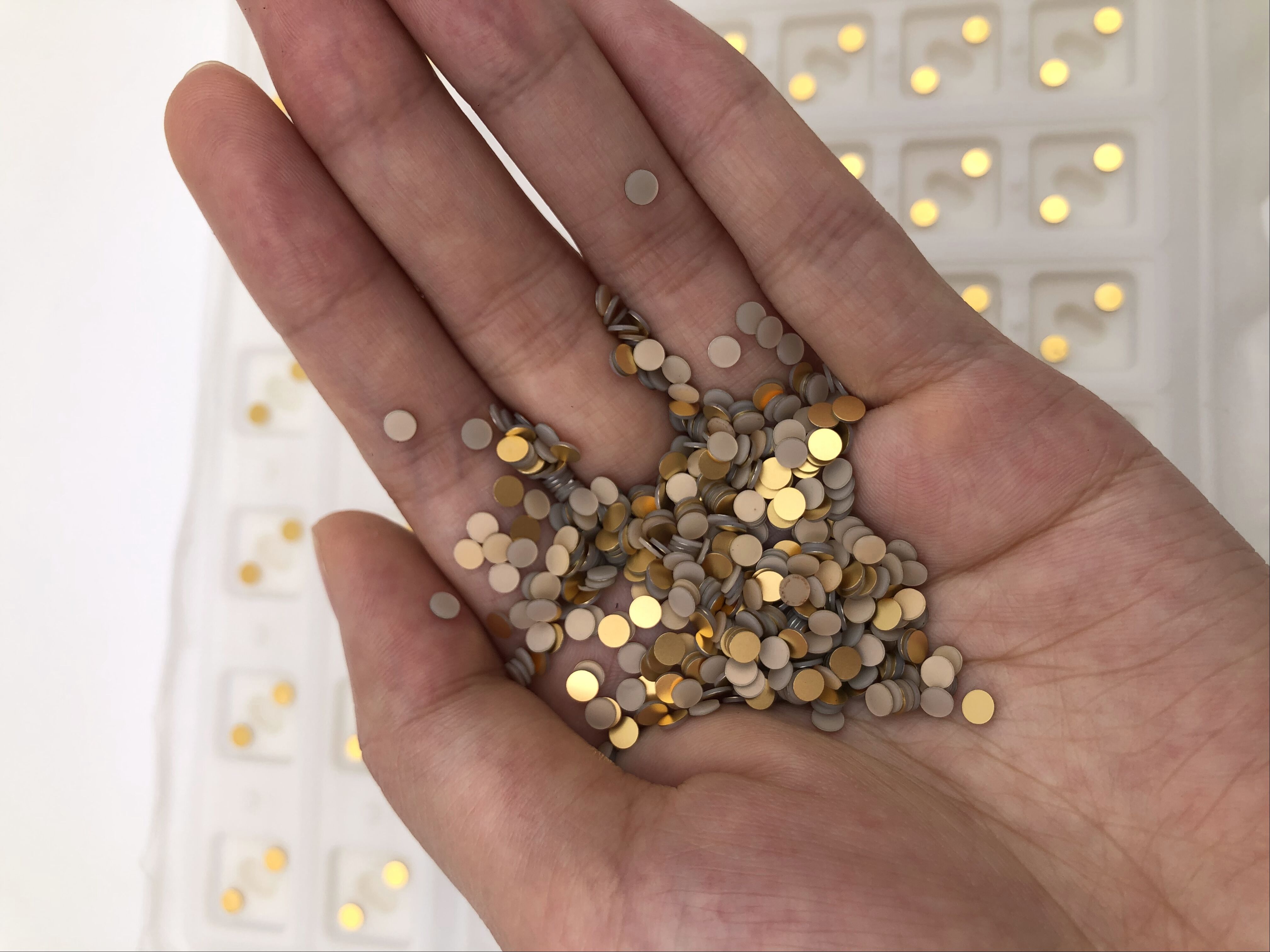

Gold-Coated Particles(Conductive Glod Pills)

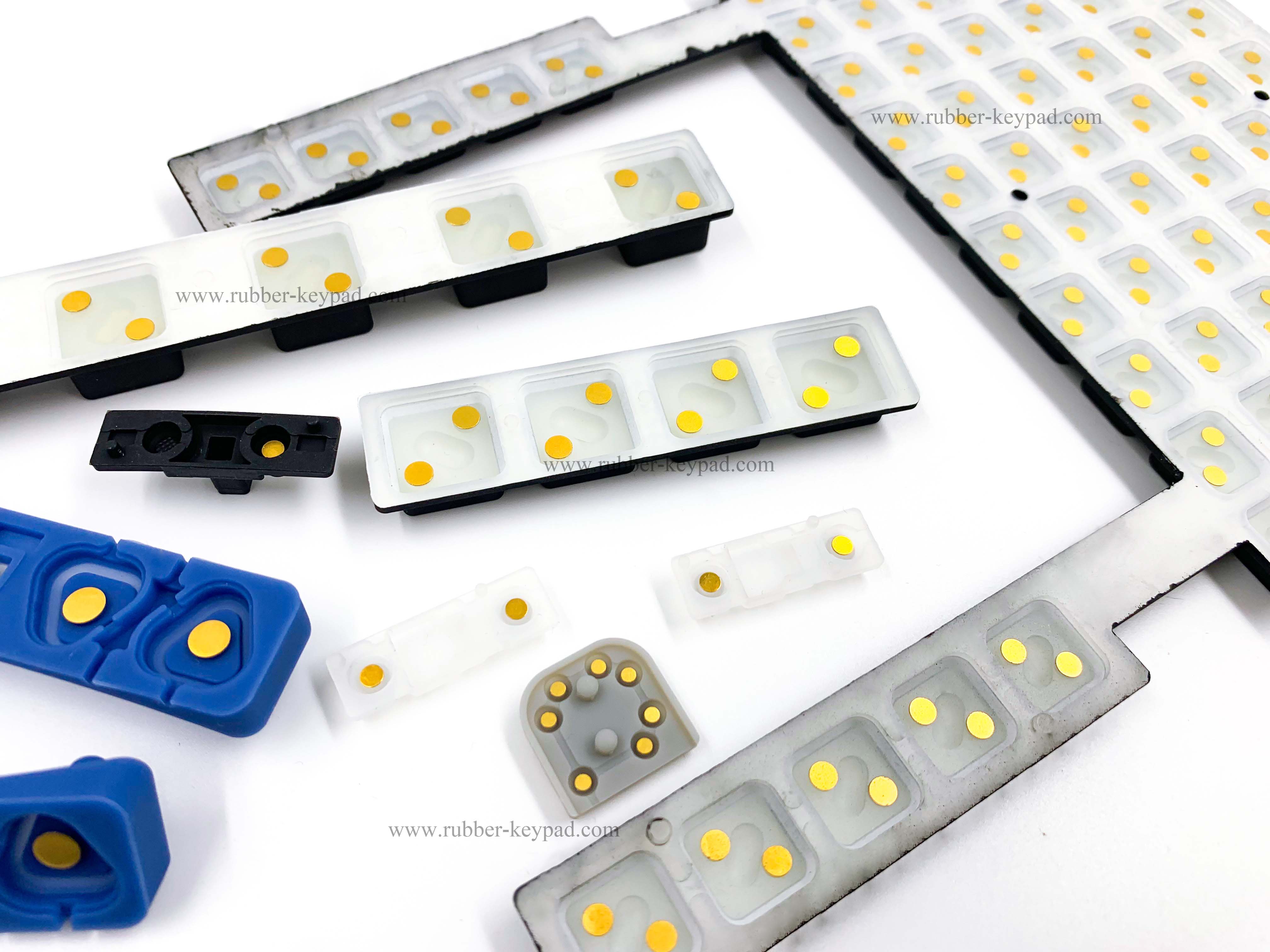

Gold-coated conductive pills rubber keypad

Silver-Based Conductive Pills

· Variants‌

Ag flakes (1-10μm): 1.6×10⁻⁶ Ω·cm (near-bulk sliver conductivity)

AgNW (nanowires): 80% transmittance at 10Ω/sq for transparent keypads

· ‌Failure Modes‌

Sulfur-induced tarnishing reduces conductivity by 40% in 500hr H₂S tests

Migration risk under >50% strain

· Application

Ag-PDMS composites enabling stretchable input devices.

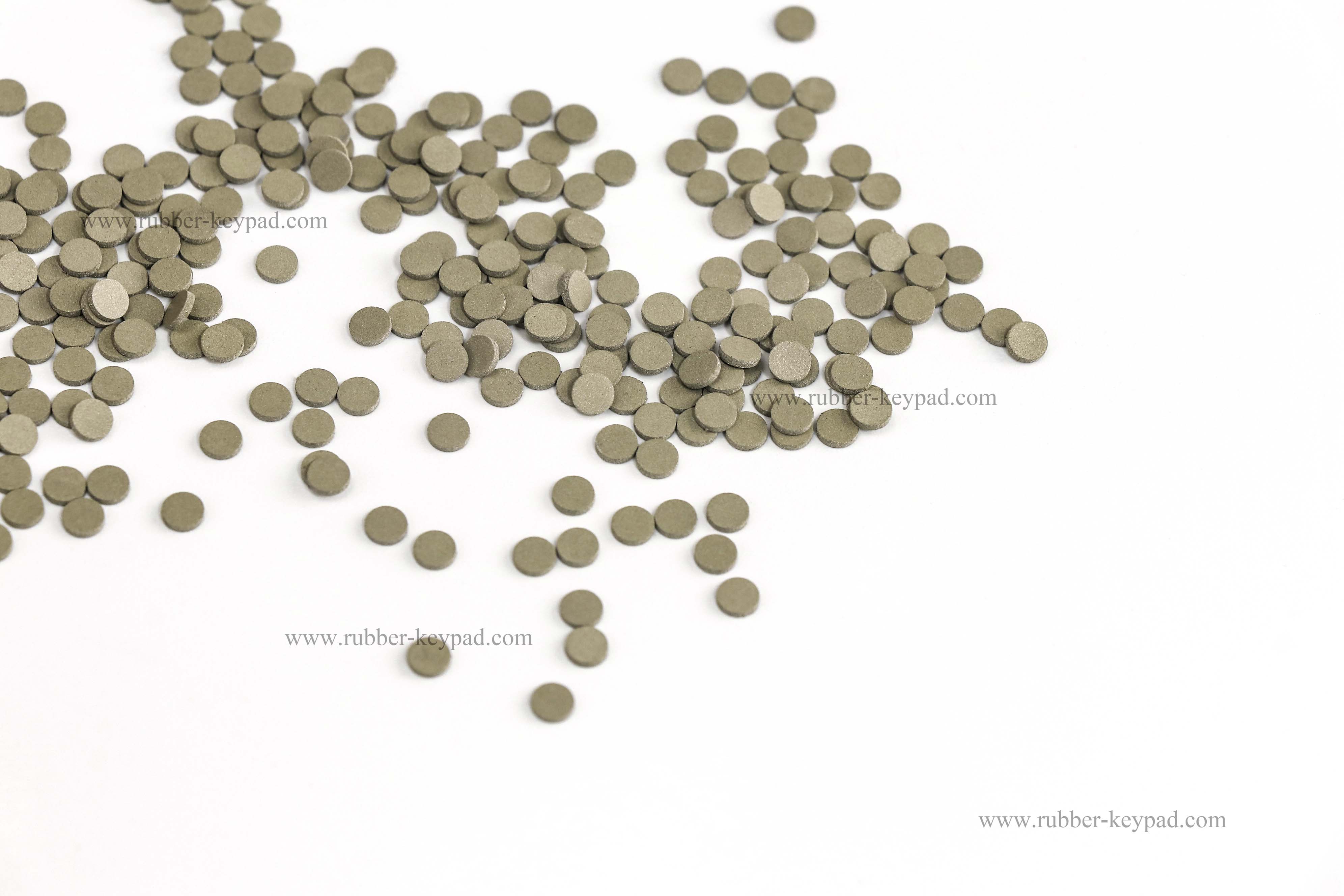

Silver Conductive Pills For Silicone Rubber Keyboard

Nickel Conductive Elements

· Design‌: Electroless Ni-P coatings (3-8μm) on silicone cores

· Performance

Initial resistivity: 50-100 μΩ·cm

20% resistance increase after 500 thermal cycles (-40°C↔125°C)

· Cost-Benefit

Cheaper than gold pill

Limited to non-critical DC circuits <100mA

· ‌Industrial Application

White goods control panels with IP54 sealing.

Nickel Conductive Pills For Silicone Rubber Button Pad

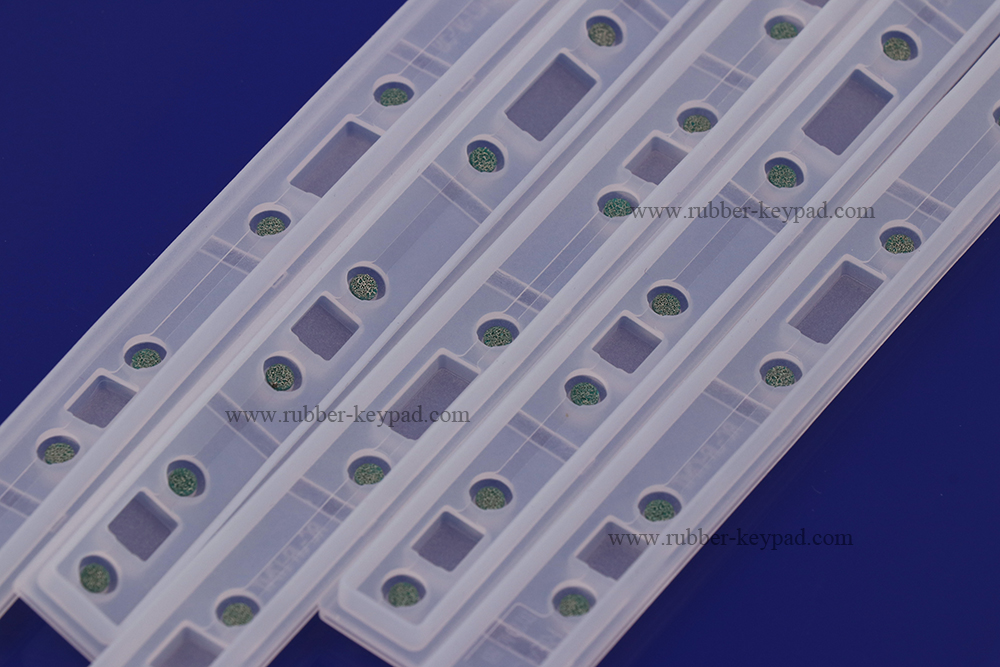

nickel pill for conductive keypad

Necessary tool for conductive rubber keypad.

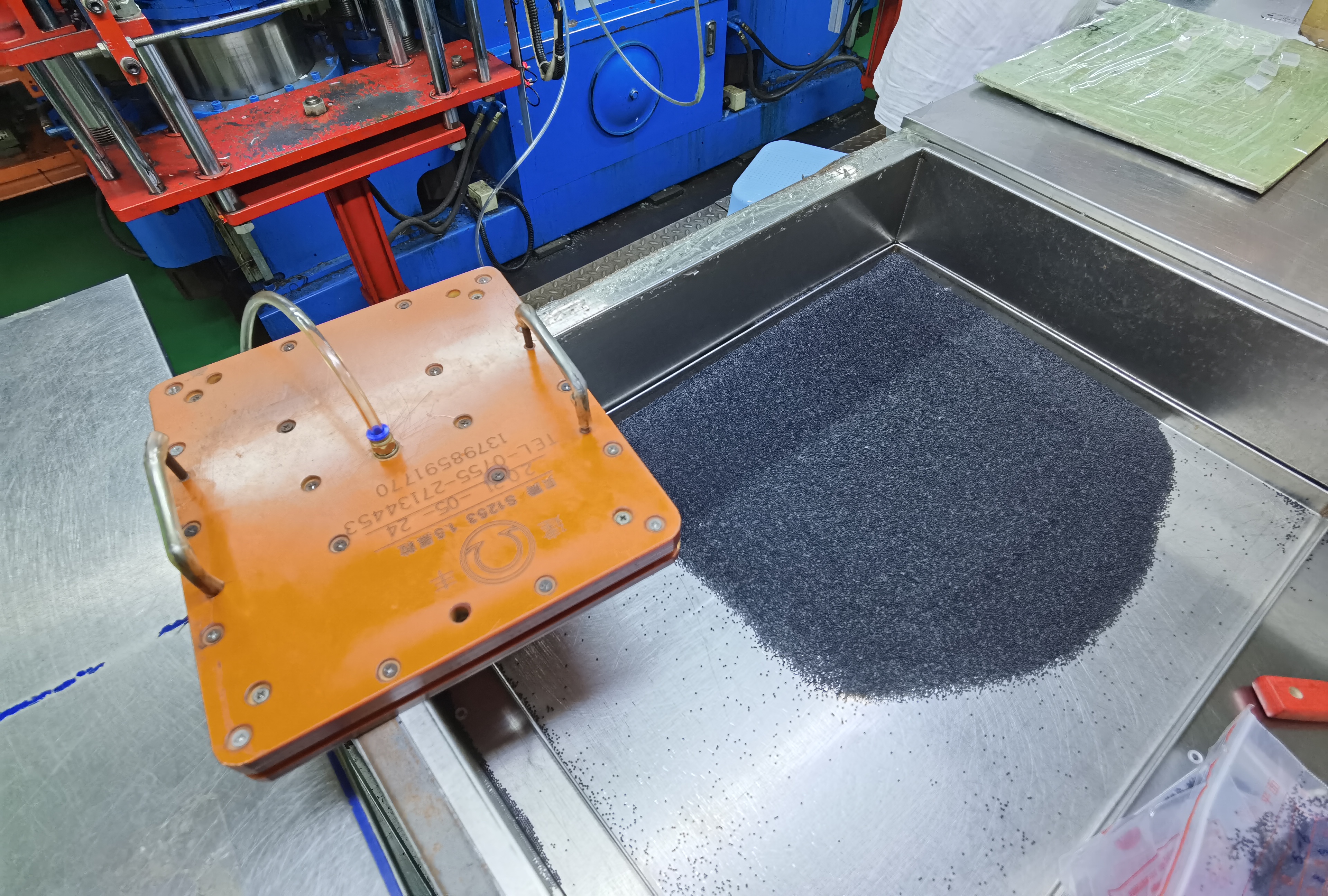

Conductive carbon pill tool


How to produce Conductive Rubber Keyboard?
