Carbon Pills

Carbon Pill, also known as Carbon Puck and Electric Conductive Pill, is the
heart that conducting interface between keypad and PCB, which usually made by mixing 60% VMQ and 40% conductive carbon black, produced by die-cut molding and compression molding. Carbon Pills are widely used for control device products in switch system such as phone keypadRemote Keypads, etc.

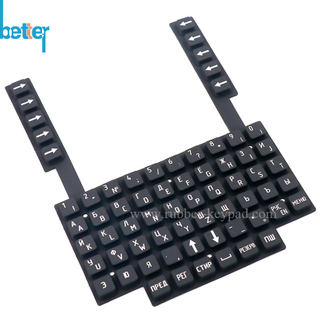

Keypad carbon pills
Conductive carbon pill’s quality affects silicone keypad quality
During vulcanizing process, low temperature and short vulcanizing time wouldn affect a good combination of carbon pills and silicone keypads. Even carbon pills fall off the rubber keypad.
High mold temperature will cause big liquidity of silicone raw material in the mold, which lead to forming in mold. This is also a reason for bad combination of carbon pills and rubber keypads.

Incomplete exhaust would result in air traps on rubber buttons and carbon pills falling off.
Low molding pressure and insufficient silicone material also cause that carbon pills fall off the rubber keypad.

Contact Pill
There are two kinds of carbon pills, one with textured surface, the other with smooth surface. Both carbon pills are in the same effect, used for wear resistant and long lasting life.

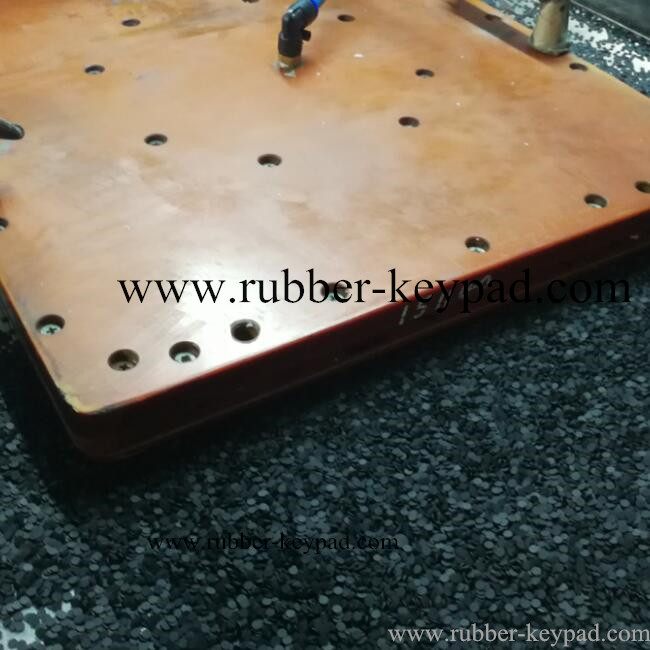

Carbon Pill ToolingCarbon ContactsBlack Carbon Pill
