Electrically Conductive Silicone Rubber Gasket

Views:82     Author:Site Editor     Publish Time: 2019-01-25      Origin:Site

Conductive  Gasket  Material

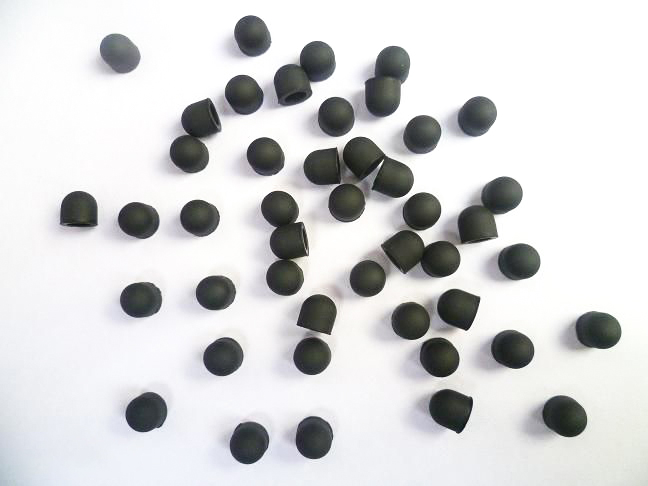

How does silicone rubber conduct electricity?conductive elastomer gasket

Conductive silicone rubber is based on silicone rubber, adding conductive

filler, crosslinking agent and other materials, compounding and vulcanization.

Usually, common silicone rubber has low conductivity,add conductive filler

can increase its conductivity.Common used conductive fillers are available:

Metal powder(like silver powder,nickle powder,copper powder etc),and

non-metal material(like graphite,carbon black,CNT and conductive fiber etc).

Compare with metal powder, though the non-metal material have lower conductivity,

they can promise the physical properties.

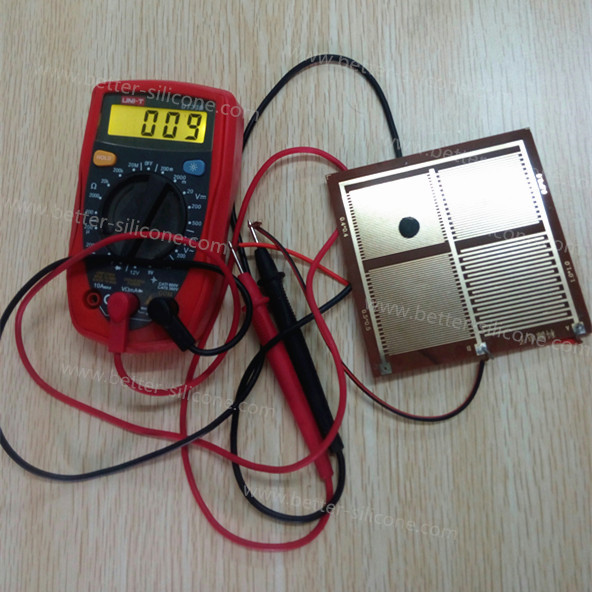

electrically conductive silicone sheet

Items


Name

Conductive Silicone Rubber

Density(g/cm)

1.80~2.50

Hardness(shore A)

40-70 Shore A

Tensile strength(MPa)

≥1.0

Tear Strength(KN/m)

≥8.0

Elongation at break(%)

≥100

Volume Resistivity(Ω·cm)

3-10

Conductive Rubber Silicone includes following several major types:

CONSIL-NC

graphite nickel plating filled in silicone rubber

CONSIL-V

CONSIL-A

CONSIL-A

silicone rubber (aluminum silver)

CONSIL-N

nickel plated silver filled in silicone rubber

CONSIL-C

silicone rubber (copper plating silver)

SC-CONSIL

graphite filled in silicone rubber

CONSIL-R

silicone rubber (fine silver)

CONSIL-II

silver filled in silicone rubber molded gasket

Where does conductive silicone rubber used?

The main function for conductive silicone rubber is seal and electromagnetic shielding.

Shielding properties can up to 120dB( 10GHz). The conductive silicone rubber has excellent electromagnetic seal and water vapor seal, it is able to have excellent conductivity ( blanketing frequency reaches 40GHz) under certain pressure.


Conductive Silicone Rubber Application:

1. Cooling cable accessories and heat shrinkable cable accessories for power pipes, stress dispersing rubber and cable plugs.

2. Keyboard, buttons and other bottom contacted conductor.

3. Photocopying machine roll.

4. Wire connecting pipe.

5. When the conductive silicone volume resistance below 10 ohm cm , conductive silicone has electromagnetic shielding function. That is, the volume resistance below 10 ohm , mainly used in electromagnetic shielding occasions, also for chassis, cabinets, shelters, power transmission and transformation projects and microwave waveguide system, connector pads, etc.
