Carbon pill silicone buttons are one kinds of conductive silicone keypads. Carbon pill switch buttons are more durable than condcutive ink printing keypads. Conductve carbon pills are made from rubebr infused with graphite (carbon). When pressing the silicone rubber buttons, the carbon pills push again the circuit board to forming the electric current.
  • Better-01

  • Better-Silicone

  • 3926901000


What is Conductive Carbon Pills?

Carbon Pills & Graphite Pads are widely used in silicone rubber keypad due to its economy and low resistance. Conductive carbon pills is made by adding carbon to macromolecule elastomer (such as silicone) to reduce its volume resistance. The resistance depends on carbon particle properties and filling quantity. The samller the carbon particle, the lower resistance the conductive carbon pills. Carbon pills are widely used in carbon pill button, carbon pill switch and conductive keypad.

carbon pill button

Carbon pills are made by die-cutting tools or compression molding. There are two kinds carbon pills, textured finish pills and smooth finish carbon pills.  Silicone rubber keypad manufacturers usually adopt four conduction ways to make the rubber keypad according to the keypad resistance requirements and application. They are conductive ink, carbon pills, metal dome and golden pills.

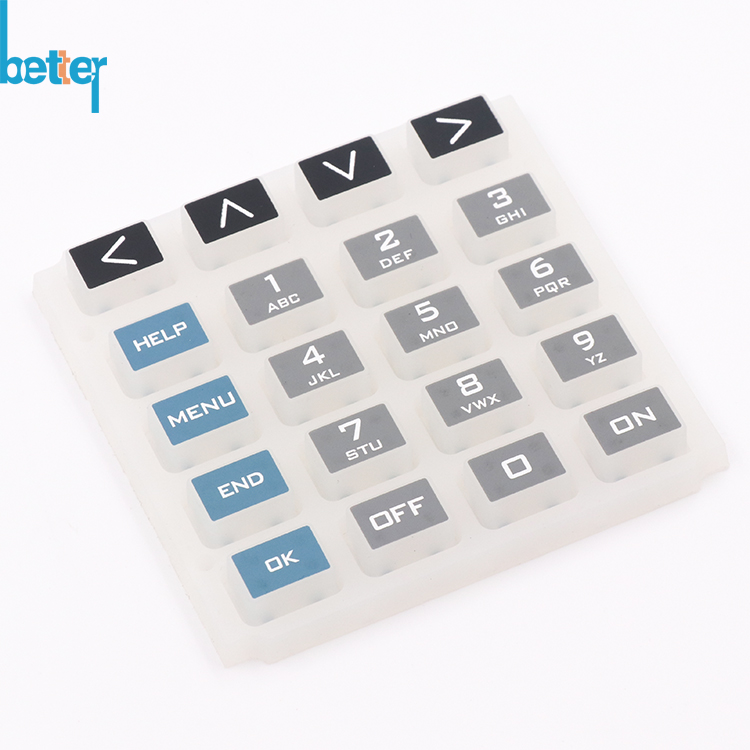

Golden Pills Conductive Silicone Keypadkeypad 4x4 transparent silicone buttton

Carbon Pills Silicone Buttons Manufacturing Process

Different from conductive ink keypad which is prnted with conductive ink after compression molding, carbon pill silicone keypads are combined with the carbon pills during the compression molding. Before compression molding, the carbon pills are placed into the mold cavities by positioning tool. So the carbon pills will be combined with the silicone while the vulcanization. The time of vulcanization and the mold temperature will affect the combination of carbon pills with silicone button pad. Low temperature will cause th falling of the carbon pills, while high temperature will cause the melting of carbon pills into the silicone.

The Advantages of Carbon Pill Silicone Keypad

1. More durable than conductive ink keypad

Compared with carbon conductive paint keypad, carbon pill switch button are more durable as it can not be erased with long-term usage. The electric resistance of conductive ink button will increase after the long-time usage, but the resistance of carbon pill switch is stable.

2. Save more cost

The metal domes keypad or golden pill keypad button are rather expensive. For silicone rubber keypad manufacturing, conductive carbon pills are enough to  meet keypad resistance requirements. The price of carbon pills is cheaper than than the metal pills.

The Disadvantages of Carbon Pill Switch Button

1. Carbon pills buttons can not be reworked once molded

Unlike conductive ink keypad, it is infeasible to rework carbon pill button keypad if the carbon pills falling off from the silicone keypad.

2. Limited shapes of the carbon pills

The regular shape of carbon pills in market is only round. If the irregular shapes are needed, such as trianle carbon pills, it need to customize. So the custom made carbon pills are expensive. Moreover, the production efficency is lower than conductive ink priting buttons, because the carbon pill need to be gripped by the position tool and then put them into the mold cavities, which will take more time and labor source.

silicone keypad carbon pill

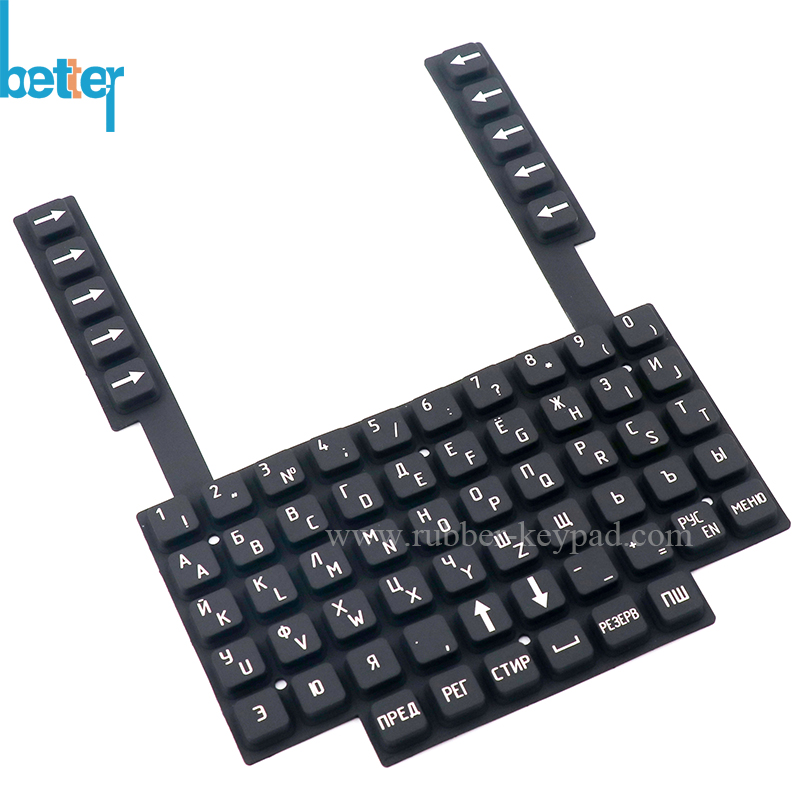

Different Types of Silicone Keypads

Conductive Silicone Keypad 4x4    conductive carbon pills siwtch

                      Silk screen printing keypad                                                      Laser engraved illuminated backlit silicone keypad

epoxy silicone keypad carbon pill    carbon pill button

           Epoxy coating silicone rubber buttons                                               PU coating silicone rubber button pad

conductive carbon pills button    Plastic Cap Rubber Keypad Buttons

         Oil coating conductive silicone switch buttons                               Rubber keypad buttons with plastic caps

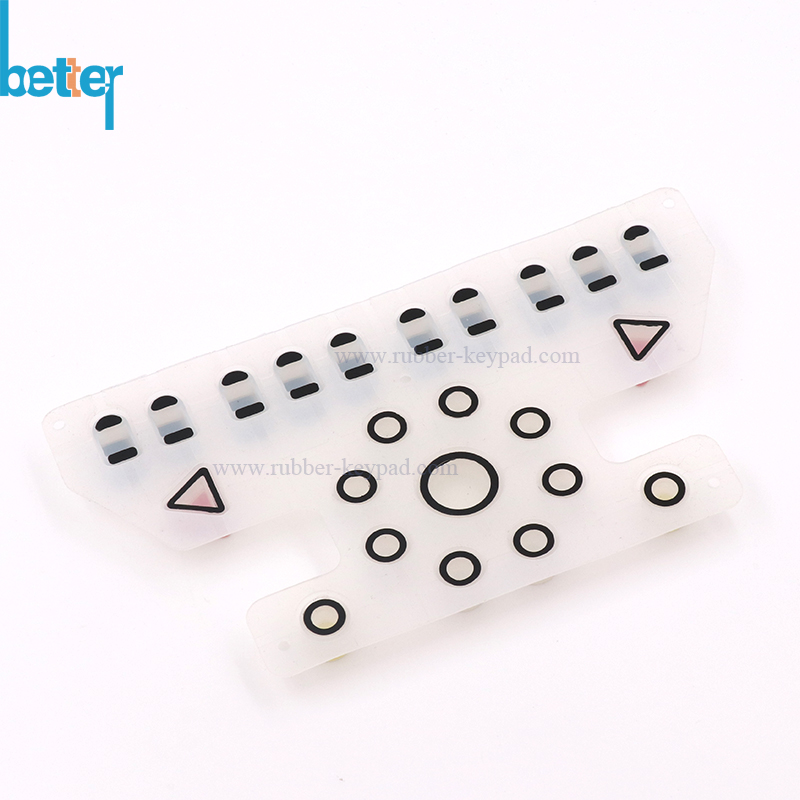

silicone rubber keypad design guide    conductive pills silicone keyboard

          Conductive ink prting silicon keypad                                                Conductive Gold Pills Silicone Keypad

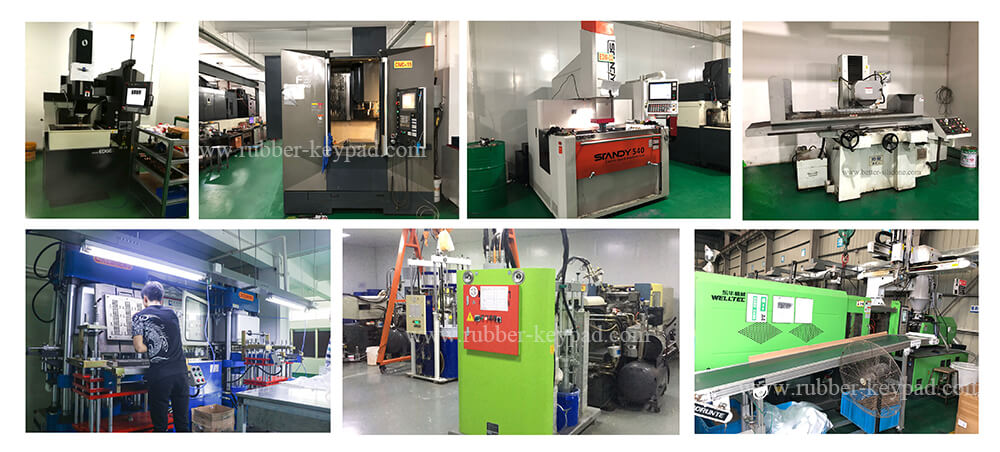

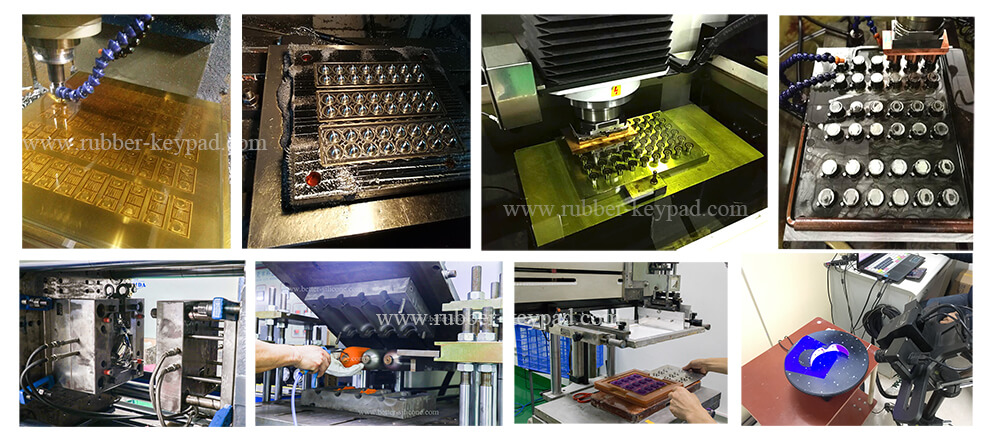

Silicone Rubber Keypad Manufacturing Process Machines
