Silicone Rubber Keypad & Keyboard have many conductive ways, like carbon pills & graphite pads, conductive ink printing, metal domes, nickles pills, copper & golden pills.
Availability:
Quantity:

Conductive Keyboard
Conductive Keyboard & Conductive Buttons, which is a kind of Silicone Rubber Keypad with electrically conductive ink paint. Also known as conductive silicone keyboard & keypads, conductive buttons pads. Silicone Keyboard have some electrically conductive ways: carbon pills &
graphite pads, conductive ink printing, metal domes, nickle pills, copper & golden pills.

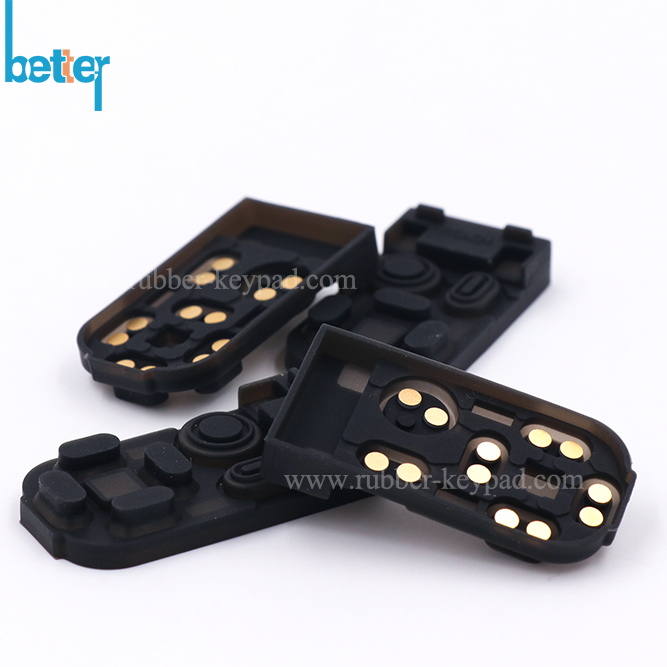

Conductive Rubber Keyboard.jpg


Different electrically conductive ways have different features and applications.

Conductive Keypad

Rubber Keyboard with Graphite Pads & Conductive Carbon Pills

Graphite Pads, known as Conductive Carbon Pills
Carbon Pills & Graphite Pads main features: Common keypad's conductive ways, Lower Resistance, Stable Performance, Long life time and Cheapest Unit Cost. Rounded Carbon Pills is common
Disadvantage:

  • Conductive Shape Limited

  • Resistance Limited: Above 10 Ohms. Common conductive resistance 50-150 Ohms

carbon pills.jpg

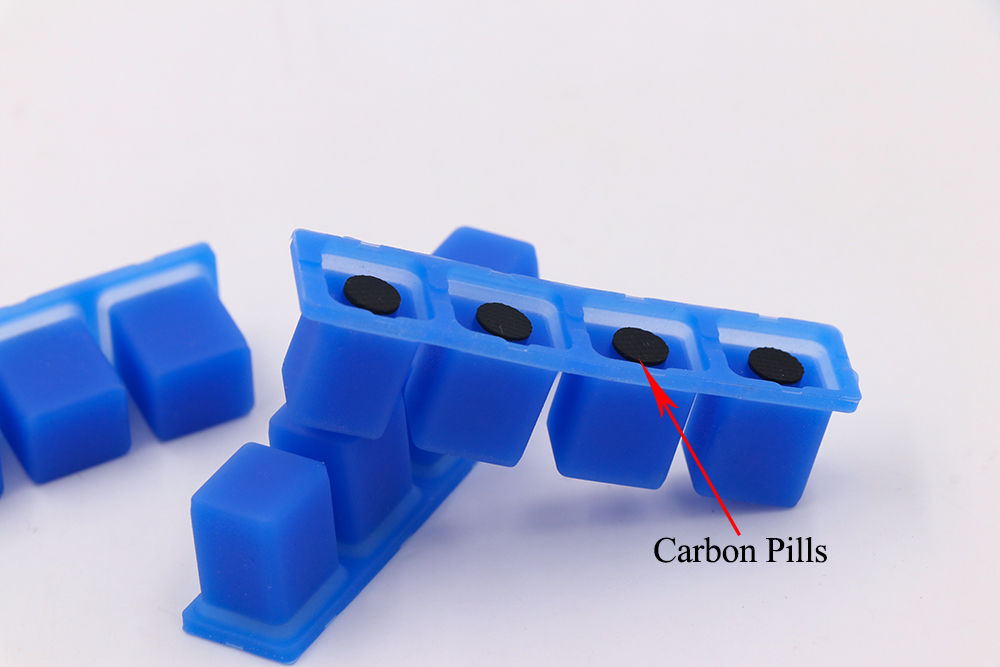

conductive graphite pad.jpg
Electrically Conductive Ink Printing & Painting:
Features: Common Rubber keyboard Conductive Ways,
Advantage:

  • Not condutive shape limited,

  • Cheapest Unit Cost.

Disadvantage:

Resistance Limited, mainly above 50 Ohms (mainly depends on conductive ink materials)

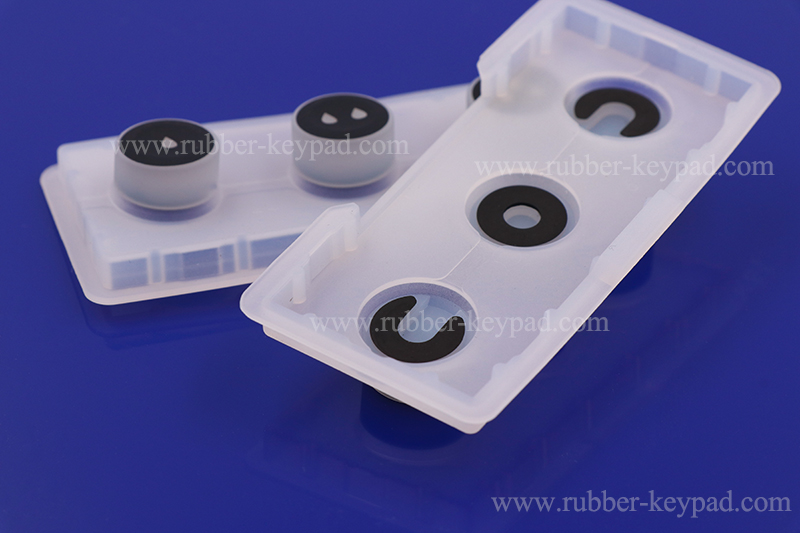

  • carbon conductivity rubber keypad.jpg
    Metal Domes:
    Features: Lower resistance, Common keyboard's Conductive Ways,
    Disadvantage: Bad Tactile Feel, Without Dust Free Functions
    Metal Domes Keypad
    tv Remote with Keypad.jpg

    Rubber Keyboard with Copper & Golden Pills
    Features: Lowest Resistance, Stable Performance, long life time.
    Mainly used in Automobile Products
    Disadvantage:

  • Lower Production Efficiency, Expensive Unit Cost
    Rubber Keyboard With Metal Pills

    rubber keyboard with copper pills.jpg
    Rubber Keyboard with Nickle Pills & Pads
    Features: Lowest Resistance, Stable Performance, long life time.
    Mainly used in Automobile Products
    Disadvantage: Expensive Unit Cost

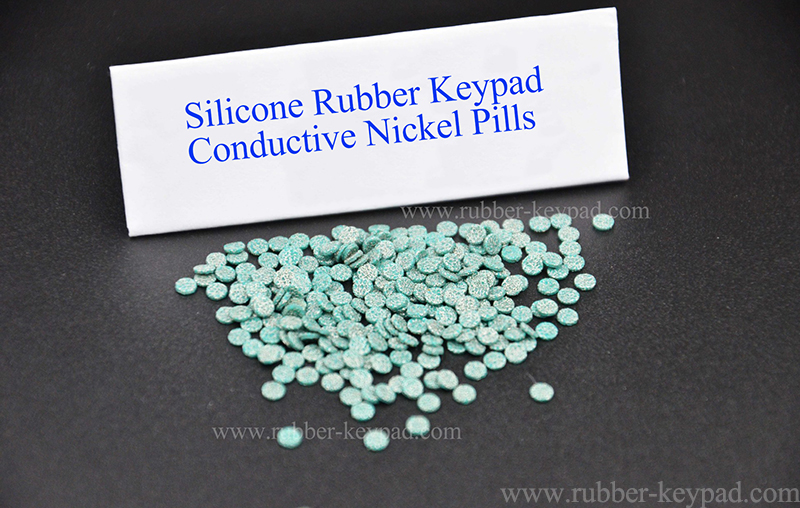

    conductive nickel pills.jpg

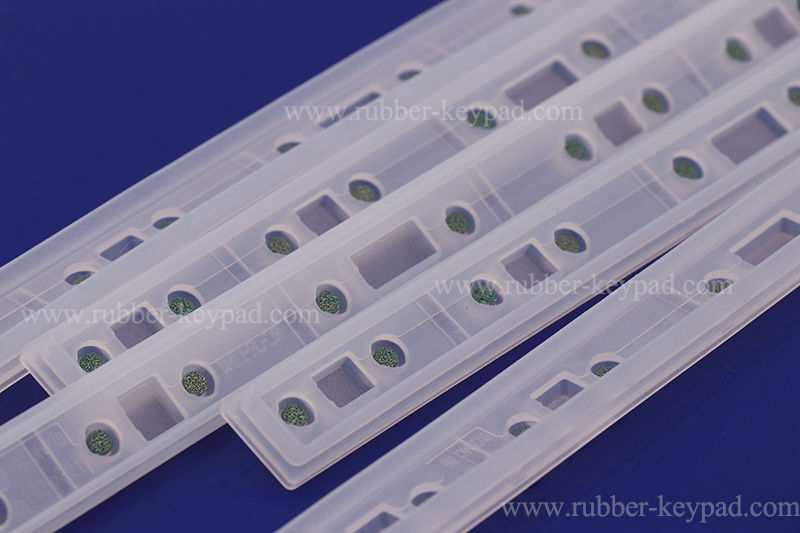

    conductive silicone buttons with nickel pills.jpg
