Silicone Button Membrane Keyboard & Keypads

Share to:

Silicone Button Membrane also called as Rubber Membrane Buttons,Silicone Rubber Membrane Keypad & Keyboard,Rubber membrane keyboard,Silicone Rubber Button Pads.
Silicone Button Membrane is made from clear elastomer silicone rubber material. Use silicone button compression molding or liquid silicone rubber LSR injection molding.
Silicone Button Membrane are widely applied in electronic keypad switch,remote control device button,medical device and machinary device.

  • MS
  • Better
  • 3926901000
Quantity:

Silicone Button Membrane

Silicone Button Membrane also called as Rubber Membrane Buttons,Silicone Rubber Membrane Keypad & Keyboard,Rubber Membrane Keyboard,Silicone Rubber Button Pads.

rubber button pad

Silicone Button Membrane is made from clear elastomer silicone rubber material. Use silicone button compression molding or liquid silicone rubber LSR injection molding.

silicone elastomer

push button on off switch

Silicone Button Membrane are widely applied in electronic keypad switch,remote control device button,medical device and machinary device.

Silicone Button Membrane Production Processing

Silicone Button Membrane Manufacturiing Steps

1. Prepare high clear elastomer silicone rubber material

2. First vulcanization by compression moulding and then form the silicone rubber button pad base.

3. Do balck and white color spraying.

4. Laser etched characters.

5. Silkscreen pinting.

6. Surface PU polyurethane coating

7. Epoxy coated on the keys.

8. Die-cut the burr of silicone button membrane.

9. Apply 3M adhesive layer.

silicone pads

Use die-cut tooling to remove the burr/flash of the silicone button membrane.

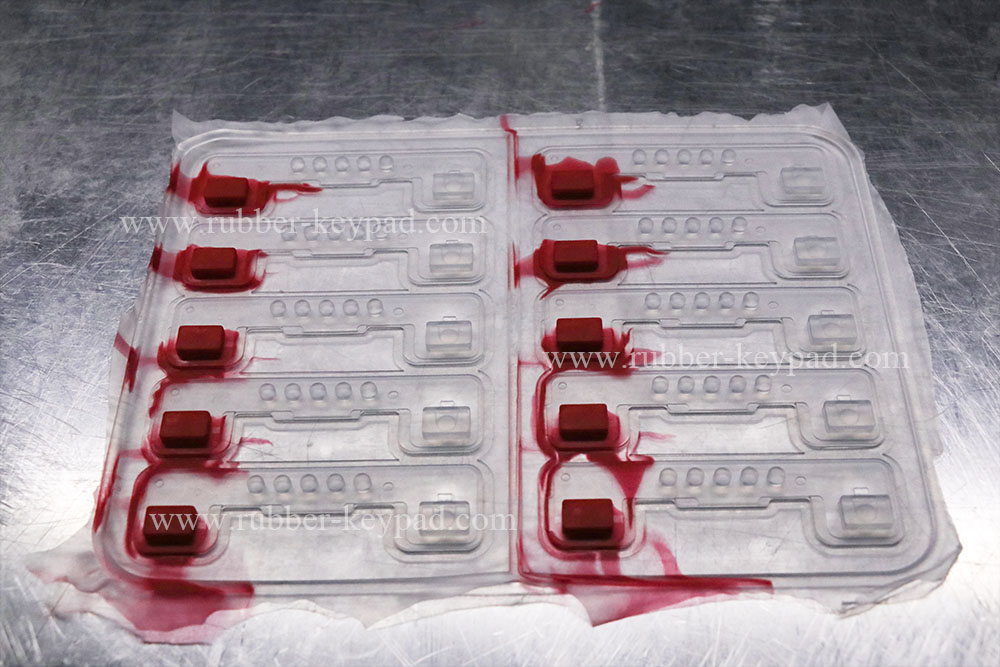

Mask the clear silicone rubber keys & buttons with silicone keycaps. In order to avoid the overspray of black ink.

push button

Silicone Button Membrane Conductive

Silicone Button Membrane can be non-conduction or conductive. Silicone Membrane Keyboard Cover which have no coductivity is kind of silicone button keycap for electronics.

Silicone Rubber Button Pads with conductivity use conductive ink printing, carbon pills,metal dome,metal pills and nickel pills under keys.

Notes: Different conductive ways have different resistance. Customer can choose according to the application of silicone membrane keypad. Generally, Silicone Rubber Button Pad with Conductive ink printing and conductive carbon pills are the most common solutions.

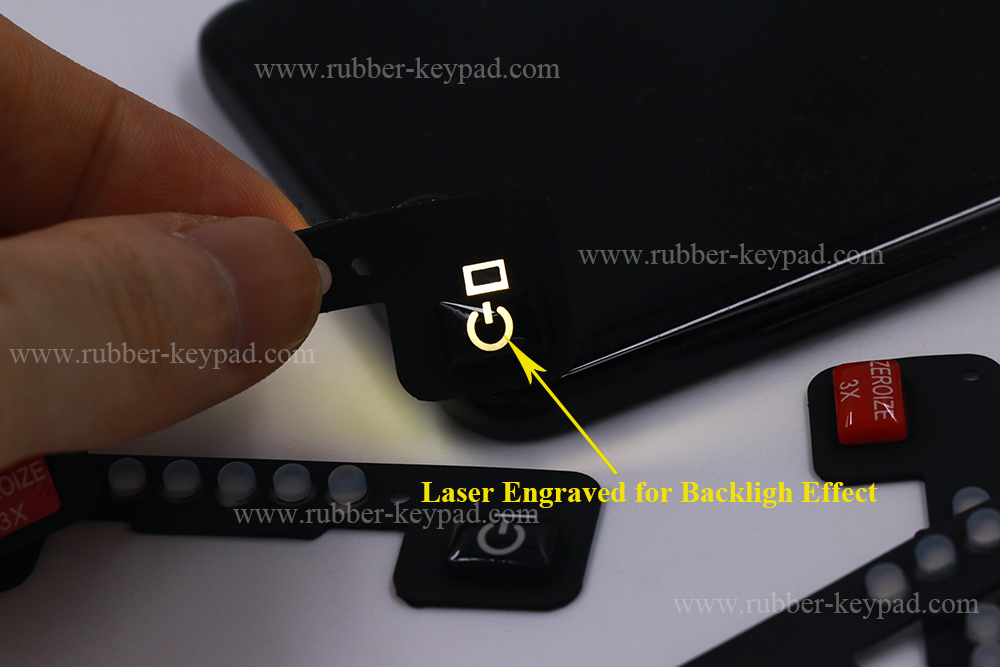

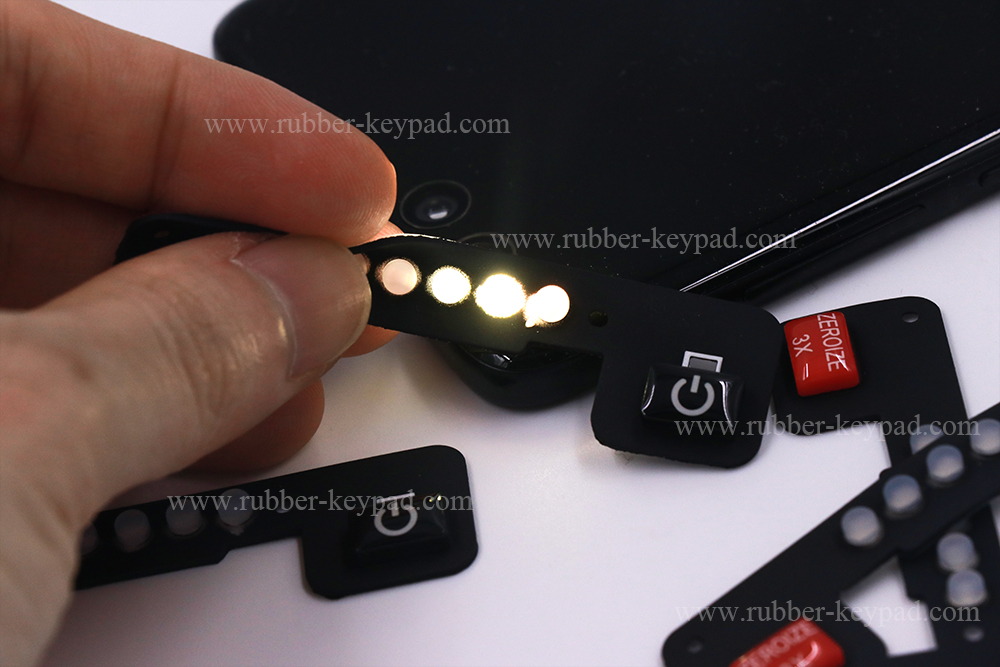

Silicone Button Membrane with non-conduction function, customer put LED under the silicone rubber button pad, which achieve ligh illumination. Another way to achieve backlight effect is laser etching & laser engraved.

silicone rubber buttons

led 4x4

Silicone Button Membrane Surface Protection

1.  Epoxy coating & Epoxy Coated

2. PU polyurethane coating

3. Matt Oil Coating

4. Silicone Rubber Pad with Plastic Key Caps

This silicone button membrane with two different protective coating:PU polyurethane coating &  Epoxy Coated.

waterproof push button switch

Silicone Button Membrane with 3M adhesive layer,which can stick on the PCB.

adhesive silicone keypad

Xiamen Better Silicone Rubber Co.,ltd has rich experience on producing silicone button membrane,silicone rubber membrane keypad,silicone button pad with all kinds of technology and surface protective treatments. For instance, silk screen, laser etching, epoxy, dual durometers/colors, plastic rubber, metal dome and PU coating, etc.

Contact us for the best price.
