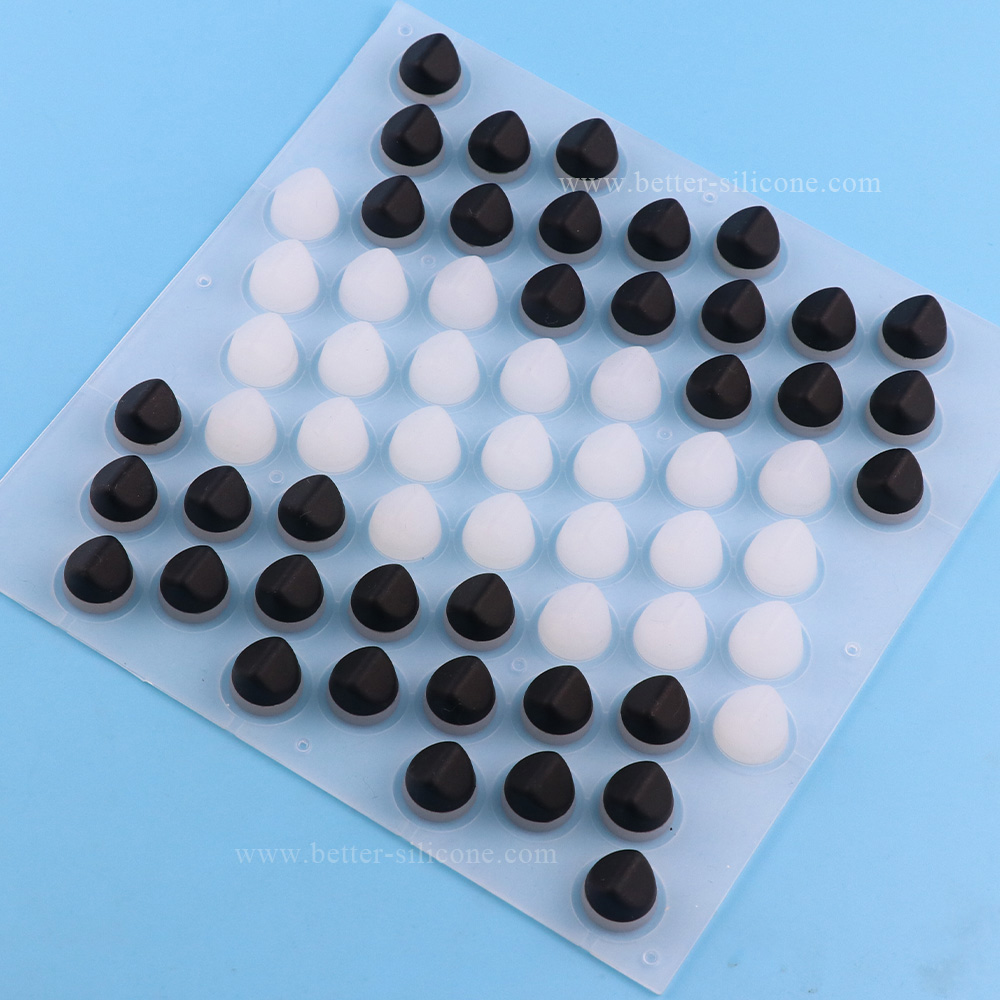

Silicone Conductive Buttons Pad MIDI Keyboard Controller

MIDI Keyboard Controller, also called Silicone Keyboard MIDI Pad, MIDI Controller Silicone Keypad. Common MIDI Controller Silicone Buttons are translucent Silicone Button Pad, which are now some of the most important devices in music production and performance. MIDI Buttons are made of soft elastomer silicone to be with good resilience, to achieve a comfortable feeling.

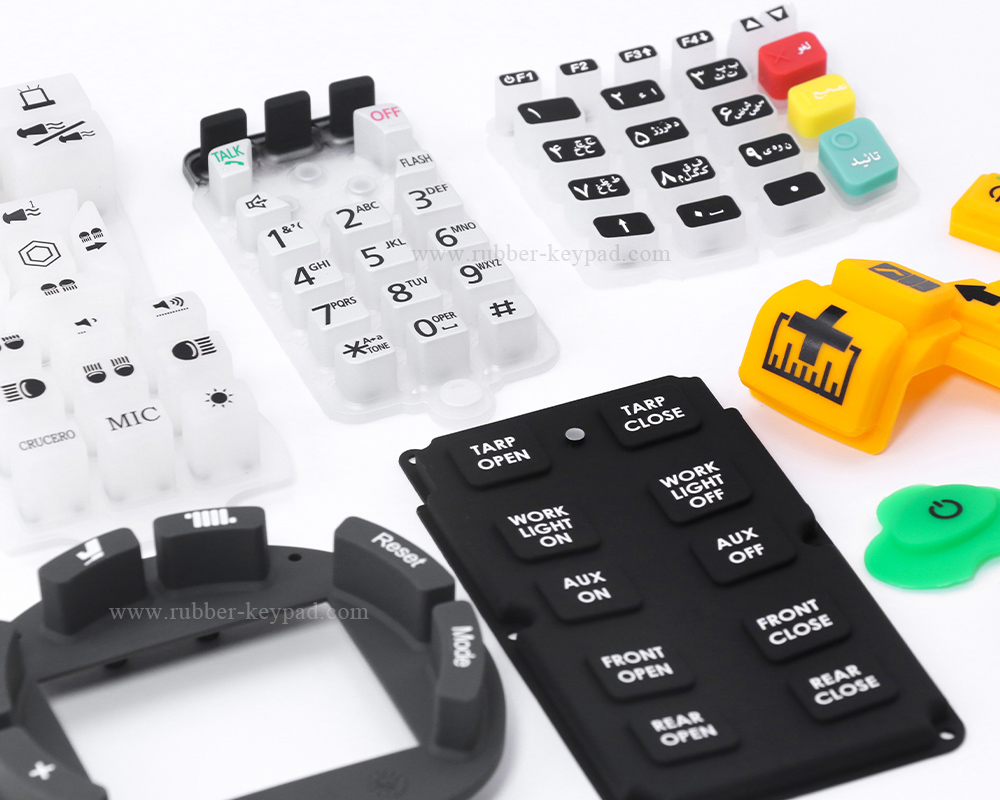

Apart from MIDI controllers, we also have various Rubber Keypads including POS keypad, P+R keyboard, digital piano, used in remote controls for TV, video and HIFI units, electronic toys & games, access control, medical device and industrial control equipment, etc. Silicone keypads have excellent heat resistance, cold resistance, environmental resistance, electrical insulation, fatigue resistance and other characteristics.

Conductive Methods of MIDI Silicone Pad

The interior of the MIDI Pad Keyboard is filled with sensors that produce different timbres, rhythms, and beats depending on the user's gestures and pressure, using conductive carbon pills or conductive ink as sensitive conductors.

Surface Treatment of MIDI Controller Silicone Buttons

In order to prevent the printing legends & icons on the surface of Silicone MIDI Keypad Button from wearing off, most printed silicone buttons require surface treatment such as Matte Smoothing Coating, PU Coating, Epoxy Coating, Plastic Button Covers or Metal keycap.

MIDI Controller Button with Oil Coating

Oil coating is a kind of protection for rubber keypad surfaces. The oil is sprayed on the rubber keyboard surface after the icons or graphics are printed. Oil coating is mostly used in silk screen printing Silicone MIDI Keypad Buttons to protect surface logos, symbols & characters from abrasion, scratches and wear. It provides good wear protection and a smooth touch feeling that help reduce dirt attraction. It can prolong the service life of silicone button.

MIDI Buttons Keyboard with PU Coating

Polyurethane is a protective coating applied to rubber keymat. It provides protection for MIDI Buttons used at high frequencies in harsh environments. It has strong adhesion and can adhere firmly to the surface of silicone and not fall off easily. It has excellent wear resistance, so silicone button pad can withstand multiple presses during use without easy wear, maintaining good appearance and service life. PU coating has a good dust-proof effect and the surface dirt is easy to clean.

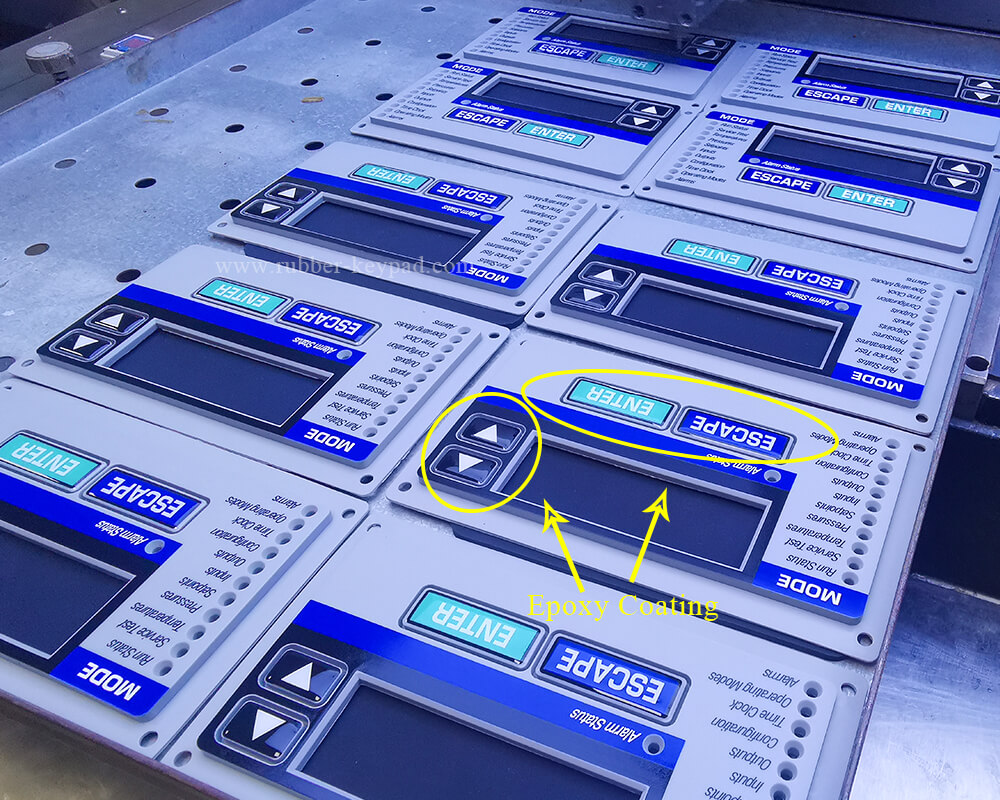

Silicone MIDI Buttons with Epoxy Coating

Epoxy coating is composed of resin and curing agent. It is a protective transparent epoxy resin coating, which is commonly applied to key top in MIDI Keyboard Controller. This thick epoxy coating also has the characteristics of low viscosity, high transparency, yellowing resistance and good bending resistance, giving the silicone keypad a hard plastic feel and shiny look. 100% wear resistant thick coating for high use applications.

Elastomer Keypad with Plastic Button Caps

Plastic rubber keyboard, also called P+R keyboard, take full advantage of plastic keycap with elastomer and sealing function of rubber keypads in aim to improve keypad surface's wear resistance, dust free, oil proof surface for long life, and also have good aesthetic & backlighting effects.
