Self Adhesive Rubber Gasket

Share to:

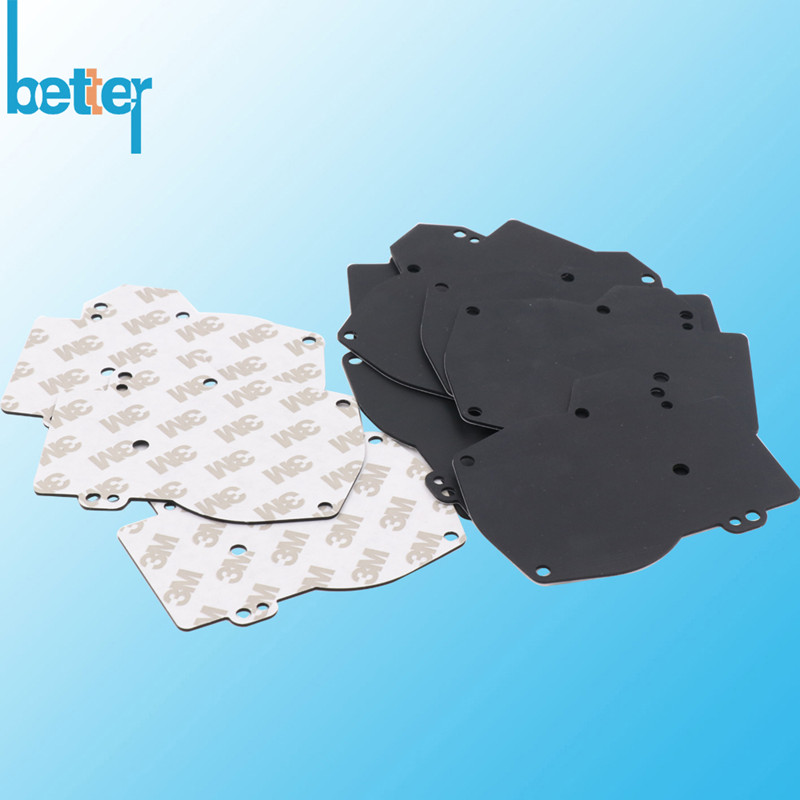

Self Adhesive Rubber Seal & Gasket, also called Adhesive Backed Rubber Sheets & Backing Adhesive Pads, which is made of elastomeric silicone rubber materials with backed double side tapes & films by die-cutting. One of popluar adhesive tape is 3M backed adhesive tape & film.

Quantity:

Self Adhesive Rubber Gasket & Seal

Self Adhesive Rubber Seal & Gasket, also called Adhesive Backed Rubber Sheets & Backing Adhesive Pads, which is made of elastomeric silicone rubber materials with backed double side tapes & films by die-cutting. One of popluar adhesive tape is 3M backed adhesive tape & film.

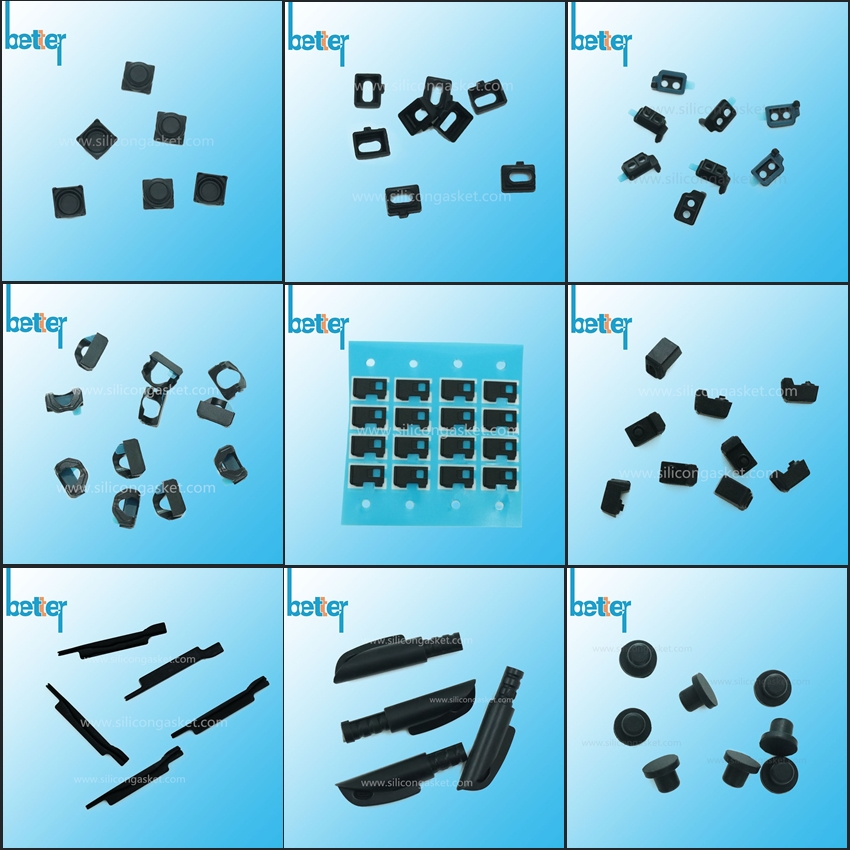

Self Adhesive Rubber Seal.jpg

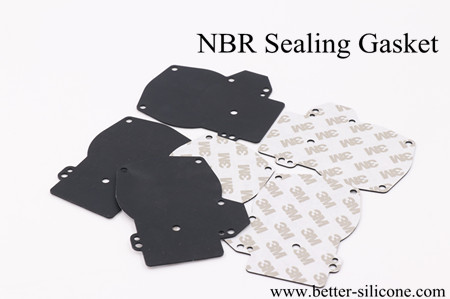

self adhesive rubber seal.jpgAdhesive Backed Rubber Materials:  EPDM, Nitrile & Buna-n, Neoprene, Silicone, Natural Rubber, SBR etc. Like backed ahesive EPDM  stripes & gasket, self adhesive neoprene sheets & cushions, adhesive backed buna a sealing gaskets, Adhesive Natural Rubber & Silicone Mats etc

Notes: Some rubber materials is not suit to sticky & backing adhesive tape & gum


Adhesive Backed Silicone Rubber Sealing Gasket Usage:

Silicone Rubber Gasket with backed adhesive tape, in aim to improve electronic products or & device dustproof & water-proof functions. Waterproof and anti-dust grade like: IP55, IP56, IP57, IP65, IP66, IP 67 etc.

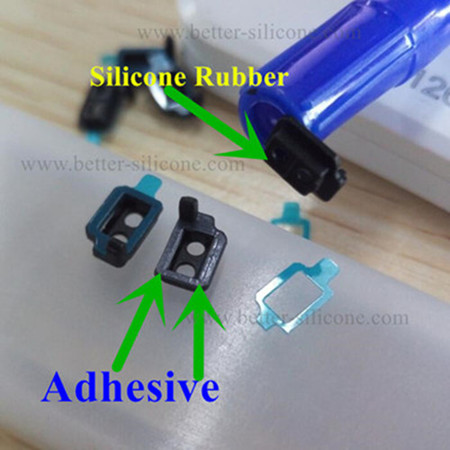

Self Adhesive Silicone Seal.jpgSelf Adhesive Conductive (Cloth) Rubber Gasket & Sheets, which stick to electronic' PCB, in aim to reduces or eliminates the EMI & RFI (electro magnetic interference or Radio Frequency Interference) noise which is often associated with electronics.

Self Adhesive Pads & Cushions (Sheets), can be printed and used as silicone rubber lables or tags.

Self Adhesive Silicone Sleeves & Covers, as a electronic shell skins or housing protective covers with matte smooth coating, can improve electronics or remote controller level, and also have good touch feels, ant-dust & water proof functions. Like Adhesive Backing Handle Grips, Backed Adhesive Electronic Shell & Housing Cover & Sleeves, Silicone Card Telephone Holder, Membrane Silicone Keyboard Cover, Self Adhesive Silicone Keyboards, Membrane Switches.

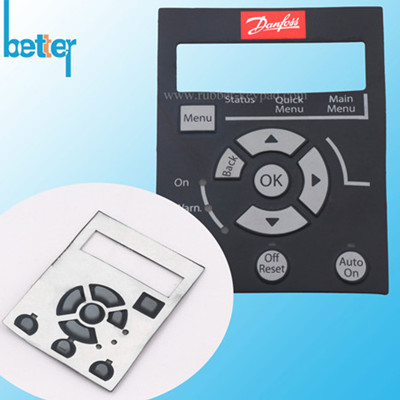

Self Adhesive Rubber Gasket.jpgSelf Adhesive Rubber Sheets.jpg



Backed Self Adhesive Silicone Rubber Sealing Gasket Manufacturing Process:

1. Making Silicone Rubber Compression Mold.


2. After finishing mold-making, producing silicone rubber samples for test. If dimensions are ok, sending the whole piece of silicone products to factory for dealing with silicone glue & tapes.

Notes:
If big silicone rubber products, burring firstly, and then deal with  silicone glue.
If small silicone rubber parts, generally dealing with silicone glue firstly, and then choose fixture tooling ( die-cutting) to burring. Or removing the big barbs, and then deal with the silicone glue, finally fixture tooling (die-cutting) to de-burring.

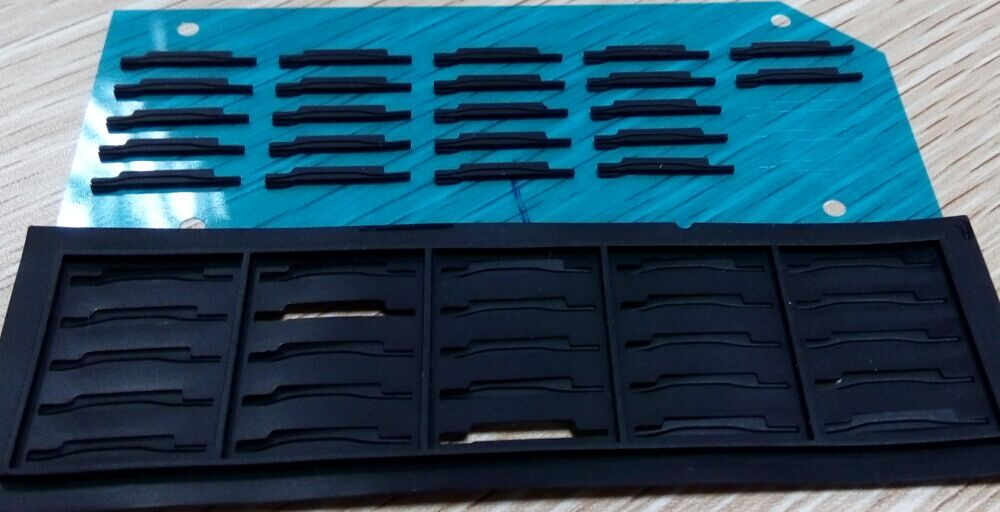

Self Adhesive Rubber Seal.jpg

3. Knowledge of Self Adhesive Backed Tape Process

a. Paste double sided silicone 3m tape with the anti-adhesive sides of anti-adhesive paper;


b. Cutting the inner round holes by cutting die;

c. Silicone products are coated with silica gel treatment agent; (Notes: silica gel treatment agent should be even/ well-distributed; and should not coat on the surface of silicone products)

d. Accurate placed stick double sides silicone 3m tape, the surface of 3m tepe should be even.

 (Notes: should not be a little off; and should not have bubble.)

e. Next Die Cutting for dis-burring & remove silicone rubber flashing

f. After finishing die cutting, check if have less materials or not clear cutting.

g. Test the finished products by 3D projects and amplification instrument

h. Before packaging, check the silicone glue one by one.

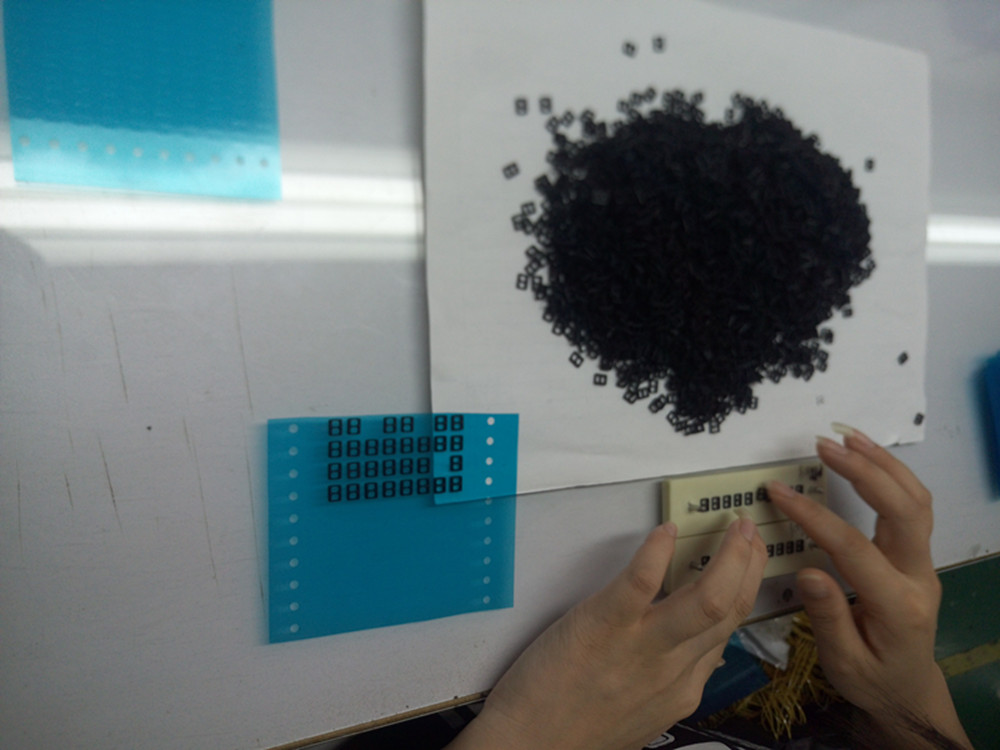

Adhesive Backed Tape Rubber Gasket.jpg
