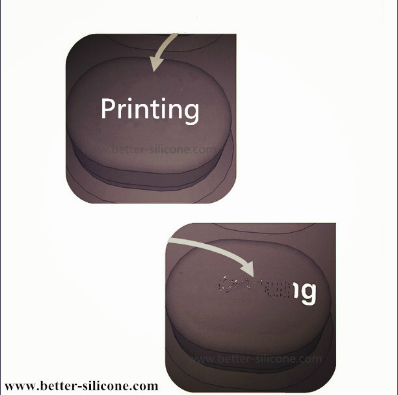

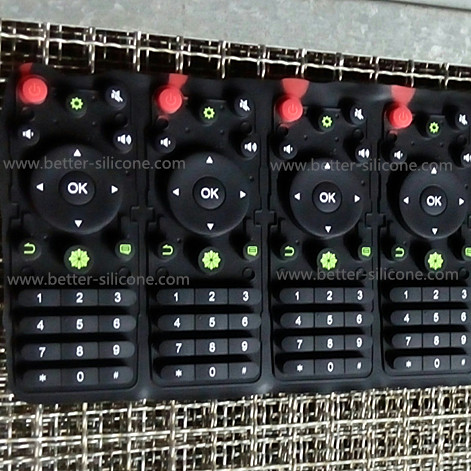

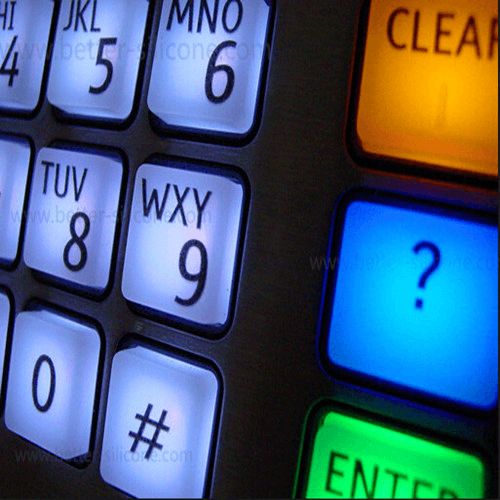

Silk Screen Silicone Rubber Keypad Silk Screen Silicone Rubber Keypad, which have two kinds. One is Surface silk screen keypad, the other Bottom Silkscreen Keypad. Surface Silkscreen keypad: The keypad need spray painted before do font or symbol printing, and the do PU coating process to protect the legends. Bottom Silkscreen Keypad is generally for transparent backlight silicone keypad.
Notes: If the surface keypad radian is high, the best choose pad printing (transfer printing).
Silkscreen Keypad Abrasion and Protection
Font or symbol on the surface of silicon rubber keypads and spray paint is easy to wear off if without do PU coating, UV+PU coating, Epoxy Coating or plastic covers etc.
1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples 2. Include number of legend and silicone colors, Of need silicone light guide. 3. With or without carbon pills 4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc. 5. Quantities to be quoted
These are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.
