Silkscreen Laser Etching Rubber Keyboard

Share to:
sharethis sharing button
Material: Silicone Rubber, FVMQ Fluoro Silicone, and Liquid Silicone Rubber
Legends: Screen Printing or Laser Etching & Engraving
Molded Way: Compression Molded & Injection Molded
Conductive Way: Carbon Pills, Conductive Ink Printing, Metal Domes, Metal Pills
Surface Protective: PU Coating, Matte Smooth Coating, Epoxy Coating, Plastic & Metal
  • SL-03

  • Better-Silicone

  • 3923500000


Silkscreen Printing or Laser Etching Engraving Silicone Rubber Keyboard

Silicone rubber keyboard, is also known as rubber keypad. Common applications of silicone rubber keypads include remote controls for TV, video and HIFI units, electronic toys and games, and industrial control equipment.

In most cases, making symbols or legends or fonts is necessary for rubber keyboard. Our company can help customers make symbols according to customer's needs, even we can provide design guide for customers.

There are two main silicone rubber keypads surface symbols or legends & icons ways:

1. Silkscreen printing

2. Laser etching & Engraving & Cutting with backlight effect

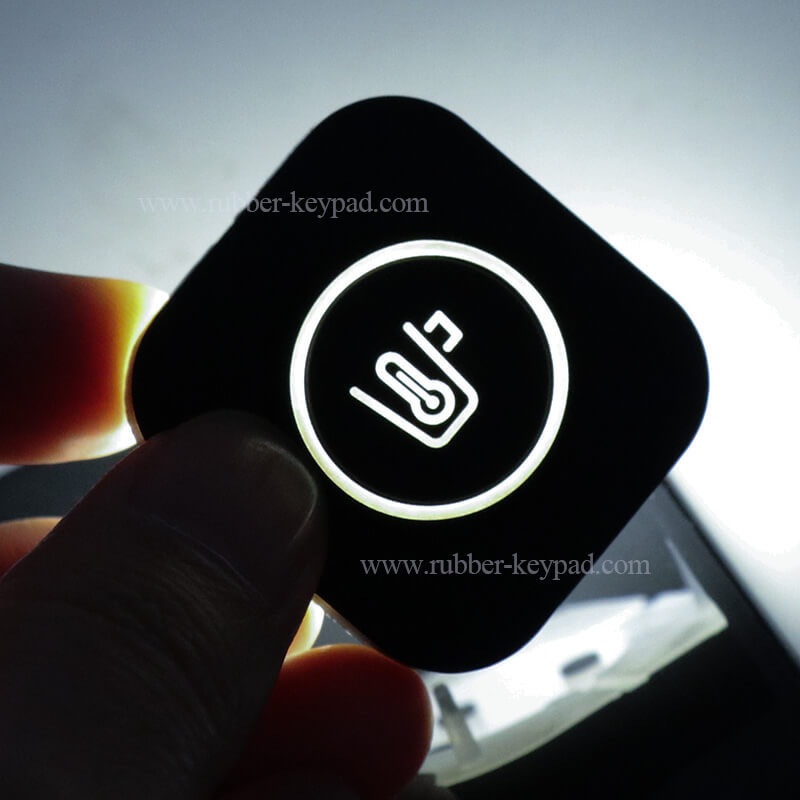

Rubber Push Button

Silicone Rubber Keypad Design Structure

1. Silicone Button & Key
2. Silicone Button Pads,
3. Button & Key flexible webbing
4. Button & Key Travel
5. Button Conductive: Carbon Pills & Graphite Pads etc.


Silicone Keyboard Designers or Manufacturers, not only in consideration of actuation force and silicone rubber keypads structure like silicone buttons travels, keypad conductive materials, silicone rubber buttons webbing, but also should in view of silicone surface & materials demands, like symbols & icons, protective keyboard cover, silicone keypads materials choice &transparency, hardness, color spraying coating etc.


Silicone Keypads Surface Symbols (Legends) & Icons
1. Silkscreen Printing
2. Laser Etching (LED backlight)

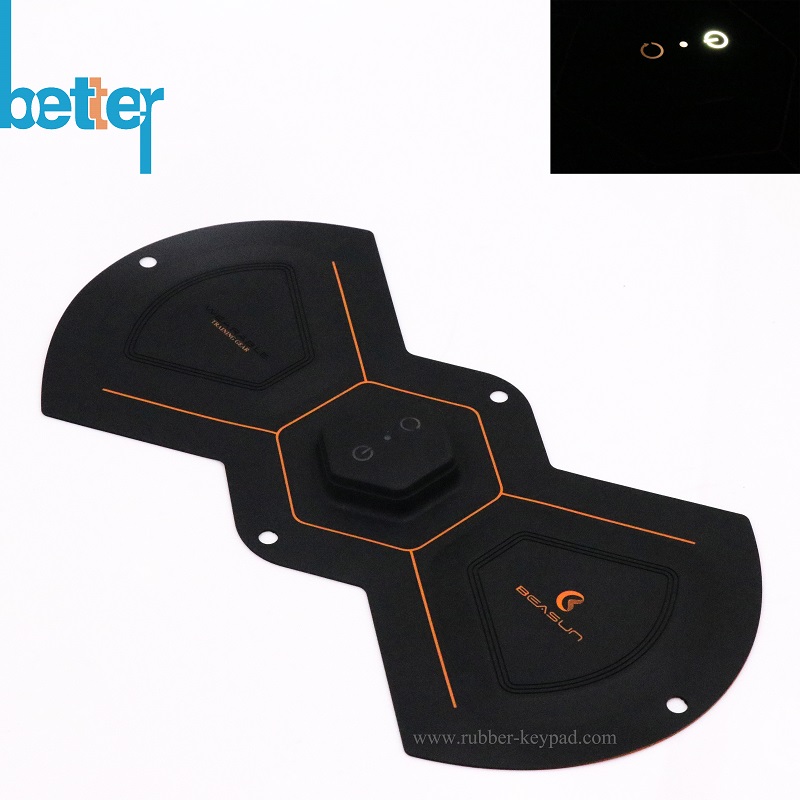

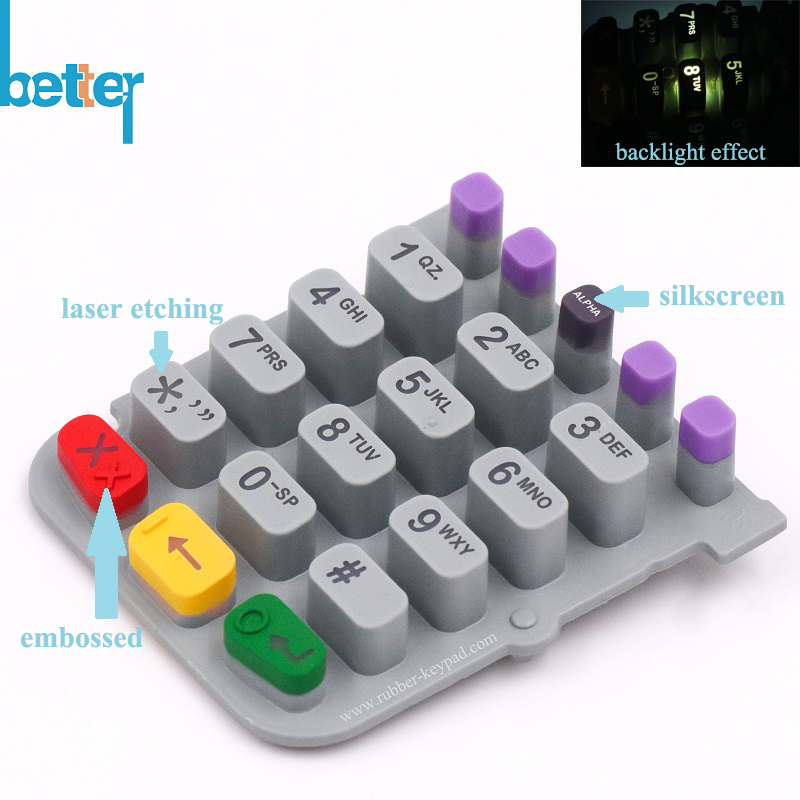

laser and silkscreen3

Silkscreen printing

Printing keyboard, means keyboard’s surface, which need symbol or font printing process by silkscreen tooling or transfer machines etc.

A stencil is placed over the keypad. The stencil exposes only the key tops that are to receive ink on this screen printing pass. Each screen print color will have a stencil.

There are two process ways of silkscreen printing: surface silkscreen printing keyboard and bottom silkscreen printing keyboard.

Surface silkscreen printing keyboard: the keyboard need to spray painted before do font or symbol printing, and then do PU coating process to protect the legends.

Bottom silkscreen printing keyboard: this process is generally for transparent silicone keypad.

rubber keyboard 8

rubber keyboard 7..

bottom silkscreen printing

silkscreen ..

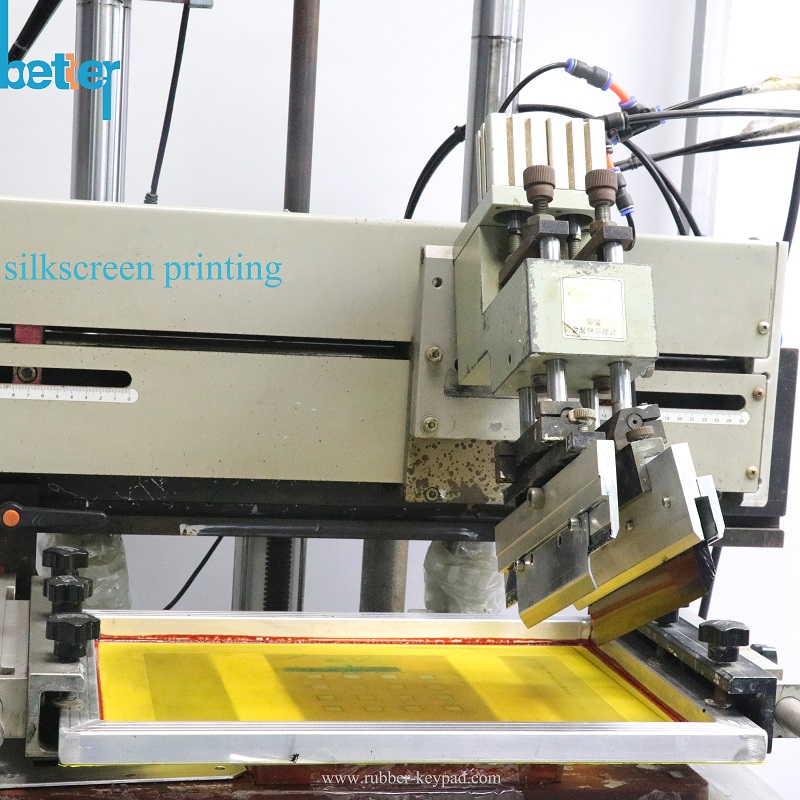

silkscreen printing2

Laser etching is the laser controlled process of removing the top coat layer of a painted keypad (usually black in color) to reveal lighter colored layer below (usually white).

The effect is to produce an enhanced backlight effect by only lighting the legends on a keypad.

By combining laser etching with either Electroluminescence (EL) or LED backlighting in a range of color options it is possible to produce an interesting range of effects.

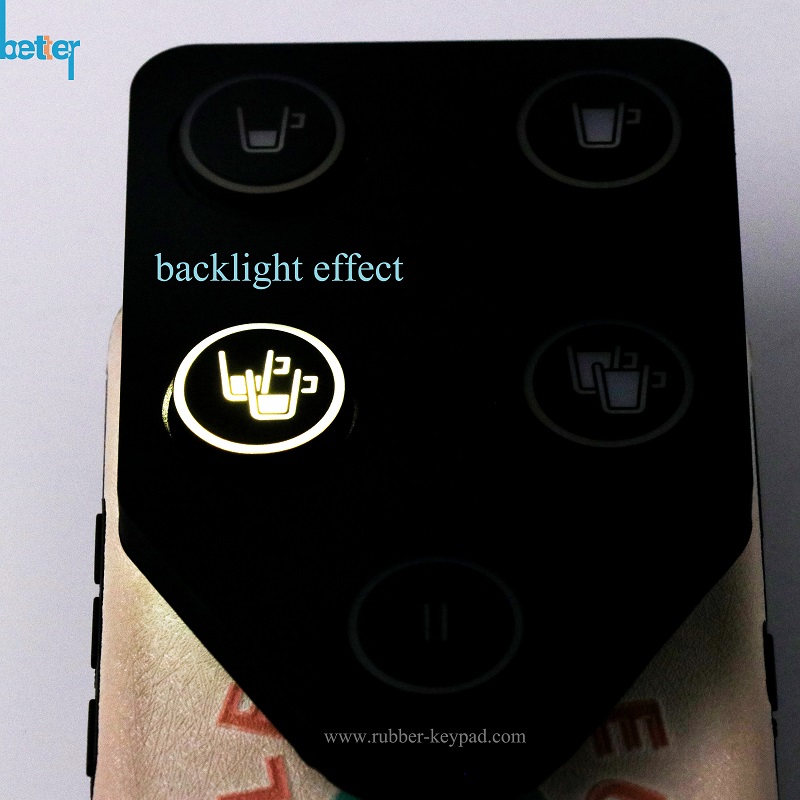

rubber keyboard laser 1

rubber keyboard laser 4

rubber keyboard laser 2

rubber keyboard laser 3

Xiamen Better Silicone Rubber Co.,Ltd is your reliable and professional keypads & keyboards manufacturer and supplier.

Silicone rubber keyboards production technology and professional service are our advantages: Save your money and time.

HTB18vdyH3aTBuNjSszfq6xgfpXaR.jpg_350x350 HTB15Aq9mbZnBKNjSZFKq6AGOVXal.jpg_350x350

Better Silicone Rubber


Better Silicone Keypad

Xiamen Better Silicone Rubber Co., Ltd is specialized in designing and manufacturing all kinds and configurations of Silicone Rubber Keypads for a wide range of applications....
