Epoxy Protecting Silicone Keyboard has waterproof, corrosion-resistant, wear-resistant, decorative and other characteristics, decorative mainly embodied in crystal clear effect of epoxy, but also can increase the gloss of the keypads, the most important one is Epoxy can increase the service life.so epoxy silicone rubber keyboard is widely used.
  • EK-5

  • Better

  • 3926901000

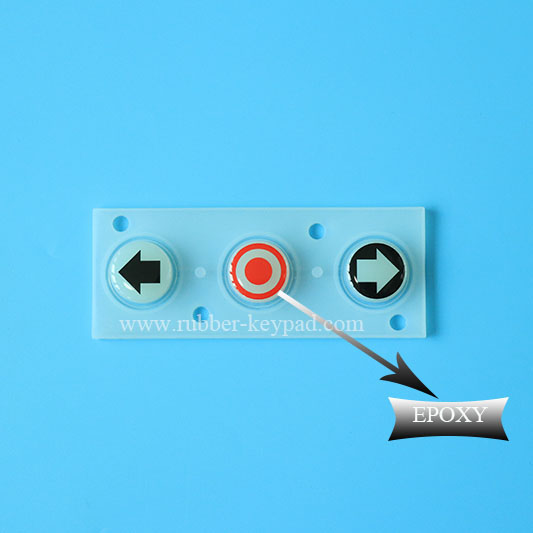

Epoxy Resin Keyboard

Epoxy Resin Keyboard is also called Epoxy Resin Keypad and Epoxy Resin Coated Keyboards & Buttons — the silicone keypad top is coated by epoxy resin, which has abrasion resistance function to resist chemical or oil.

Epoxy resin coating is one kind of silicone rubber keypads surface protective & cover coated process.

Epoxy Resin Keyboard uses mixed epoxy resin and curing agent material, and then drops on the the surface of silicone keypads, for a period of time after placement of epoxy resin and curing agent can be dried into effect like crystal. Epoxy Protecting can be applied to conductive rubber keypads to give the keypad a hard plastic feel. T he key top of Epoxy keypad has ornate-crystal beauty and also have a good transparent effects like hard PC PMMA plastic keypad cap.

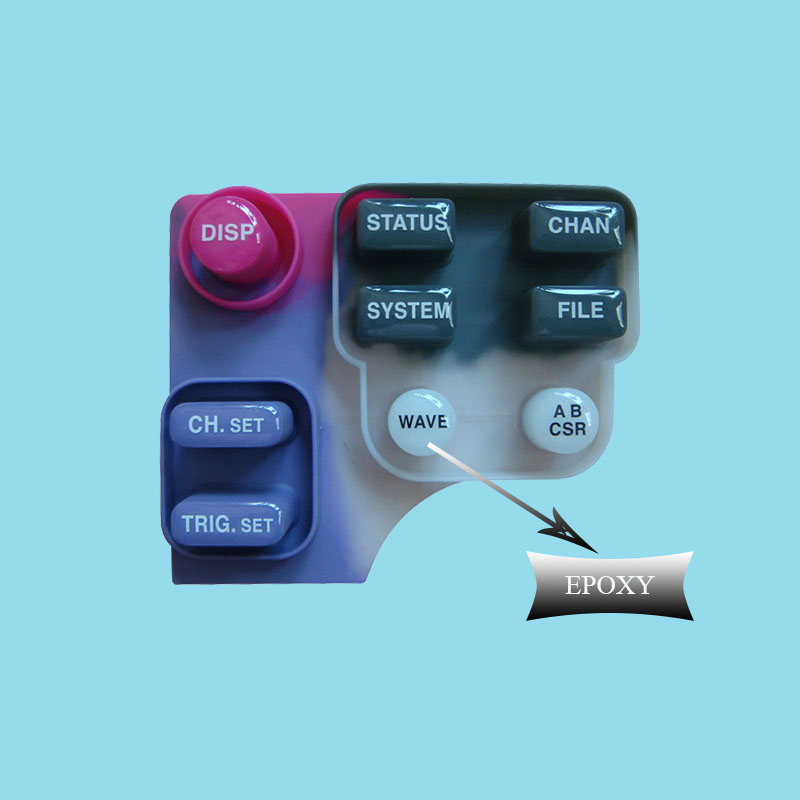

Epoxy Menbrane Keypad
Epoxy Resin Keyboard technology can not only make silicone keypads beautiful , but also can protect the surface from damage of silicone keypads. This method is used as an alternative to producing custom keypads with plastic keycaps.
Epoxy Resin Coating
Note: the costs of producing a custom keypad with an epoxy coating are significantly less than the costs of producing a custom keypad with plastic keycaps. Applying an epoxy crown on keytops is visually appealing and economic. We can help you incorporate the application of epoxy crowns into the design and manufacture of custom silicone rubber keypads.

Epoxy Protecting Silicone Button has waterproof, corrosion-resistant, wear-resistant, decorative and other characteristics, decorative mainly embodied in crystal clear effect of epoxy, Epoxy can increase the gloss of the keypads, the most important one is Epoxy can increase the service life.so epoxy  rubber keyboard is widely used.
Epoxy Resin Protecting

Silicone Rubber /plastic Keypads Custom-Made Types:

1. Silicone Rubber Keypads with Epoxy Keypad
2. Laser etched silicone rubber keypad
3. Plastic Keypads with Plastic Keycaps ( protect ive transparent PC, PMMA  acrylic   key cap) / Keypad Cover
4Double -color button pad without Coating / Printing
5. Silicone Electronic Conductive Printing / Coating control button 5.Phosphorescent/   Fluorescent Silicone Rubber Keypad
6. Elastomeric (silicon gel, elastomer, elastosil) Silicone Rubber Keypad with Dual  Durometer / Hardness Keys
7. Custom Rubber Keypads with In-Mold Graphics
8. Translucent silicon rubber button pad.
Pls do not hesitate to choose us, provide your designs and your needs, we will do best for you.

Quick quotation required details

1. 2D, 3D design design drawings in PDF, CAD, STEP, IGS or slprt. format;
2. legend number and colors. If it needs silicone light guide;
3. With or without carbon pills, carbon ink printing
4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc.;
5. Buying quantity.

Our advantages

1. Precision Own Mold-Making Technology since 1998, one stop service for silicone rubber compression

molded components, plastic injection molded and liquid silicone rubber molding components.

2. In-depth knowledge of elastomeric materials molded

3. In-depth knowledge of silicone and Liquid silicone tubing mold-making

technology and mask molded technology.

4. Mature Experience of avoid out of shape and damage from Production to Shipment: Materials Choice,

    Design Improvement and Packing Information.
5. Rapid prototyping with full sizes production equipment and production materials.
6. Experienced clean room and precision manufacturing technology.
7. Competitive Price: Original Manufacturer;
   1.) Mold-Making Plant
   2.) Silicone Rubber Compression Plant
   3.) Plastic Injection Plant
   4.) Liquid Silicone Rubber Injecton Plant (LSR)
   5.) Assembly Plant.
8. Five Experienced Designers and Engineers;
9. Production and Test is in strict conformance with ISO9001;
    Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.
10. Rapid Reaction Organization: Support Customer at short time
