Silicone Rubber Keypad with Gold Pills

Share to:

Silicone Rubber Keypad with Gold Plated Pills, which is known as metal pills, copper pill and metal gold pills. Gold plated pills are used to support extremely low contact resistance requirement for keypad applied to electrical appliances and medical/health care products.
Silicone rubber keypad with gold plated pills can also be applied to products with voltage as high as 24 volts.

  • MPK-3
  • Better
  • 3926901000
Quantity:

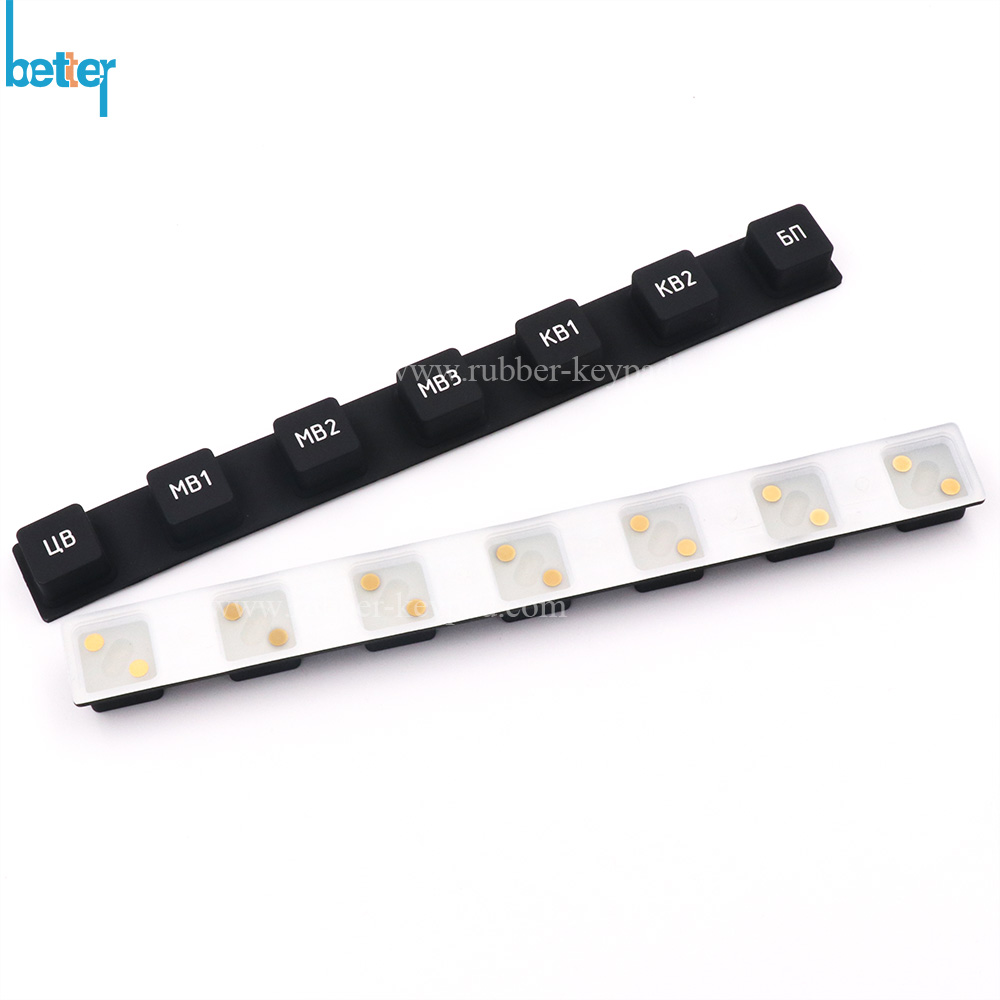

Silicone Rubber Keypad with Gold Plated Pills

Silicone Rubber Keypad with Gold Plated Pills, which is known as metal pills, copper pills and metal gold pills. Gold plated pills are used to support extremely low contact resistance requirement for keypad applied to electrical appliances and medical/health care products.

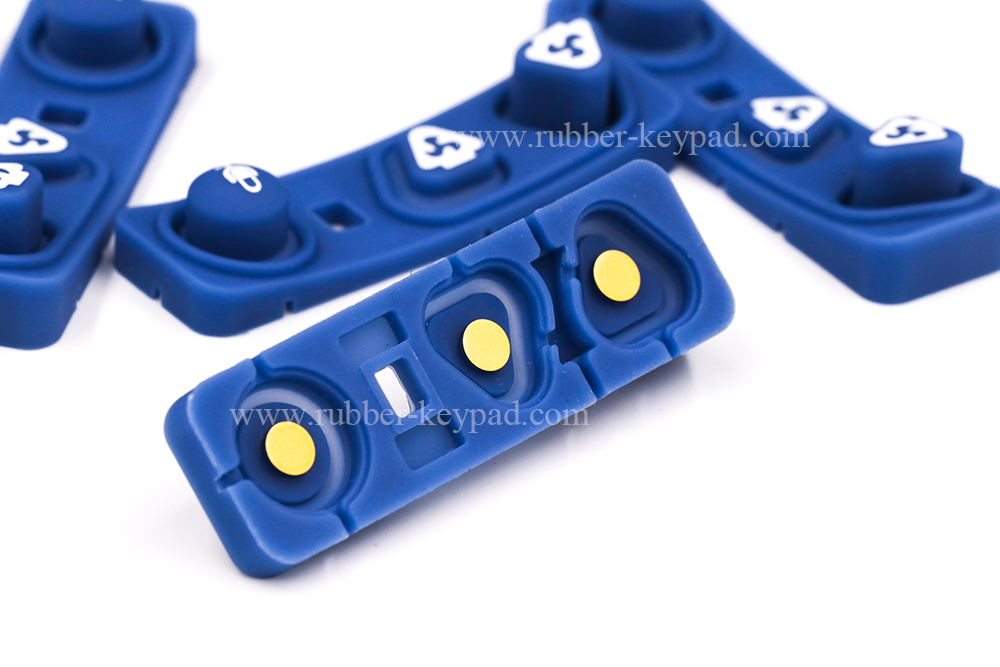

conductive silicone button pad

Silicone rubber keypad with gold plated pills can also be applied to products with voltage as high as 24 volts.
Conductive Metal Keypad

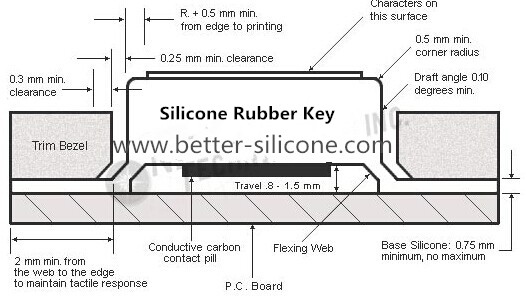

Gold plated pills are placed on the base of the button center, which are activated with Printed Circuit Board when the key webs are pressed.

Silicone Rubber Keypad with Gold Plated Pills has different types according to keypad surface legends demands, color demands, functional requirements, key cover demands and material property demands etc.

Silicone Screen Print Keypad with Gold Plated Pills
Rubber Color Spraying Keypads with Metal Pills
Rubber Laser Etching Keypad with Copper Pills

Rubber Epoxy Keypad with Gold Plated Pills
Plastic + Rubber Keypad ( P+R) with Conductive Pills

Rubber PU Coating Keypad with Gold Plated Pills



Quickly  Quotation Requirements

1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples
2. Include number of legend and silicone colors, Of need silicone light guide.
3. With or without carbon pills
4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc.
5. Quantities to be quoted

These are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.
Our Advantage:
1. Precision Own Mold-Making Technology (Since 1998)
2. Competitive Price: Origin Manufacturer.

  1.) Mold-Making Plant
   2.) Silicone Rubber Compression Plant
   3.) Plastic Injection Plant
   4.) Liquid Silicone Rubber Injecton Plant (LSR)
   5.) Assembly Plant.


3. Five Experienced Designers and Engineers

4.Production and Test strictly according to ISO9001.


Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.

5. Production Environment

6. Rapid Reaction OrganizationSupport Customer at short time


Better Silicone Keypad

Xiamen Better Silicone Rubber Co., Ltd is specialized in designing and manufacturing all kinds and configurations of Silicone Rubber Keypads for a wide range of applications....
