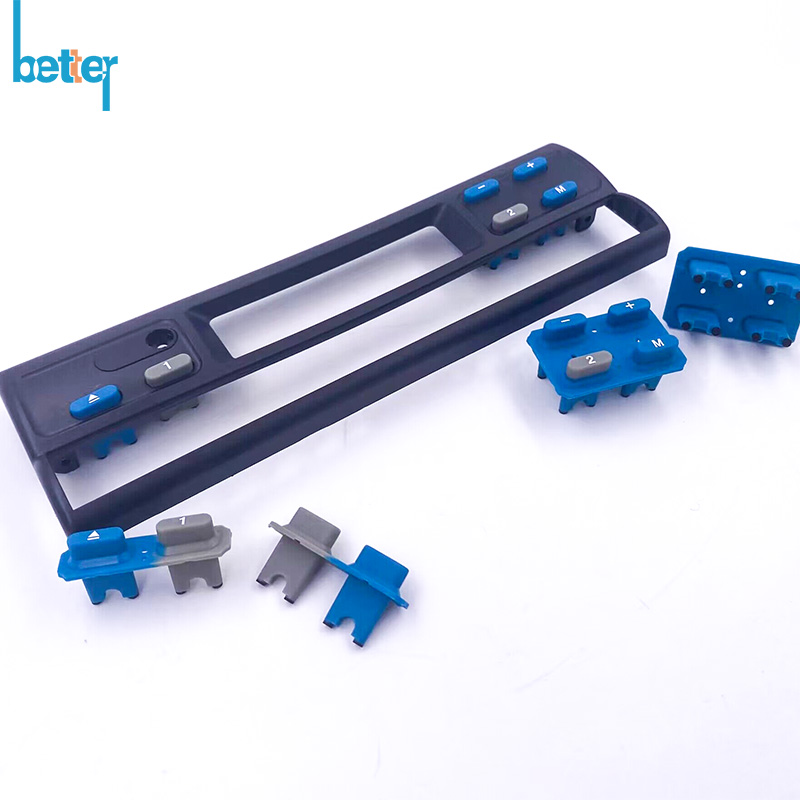

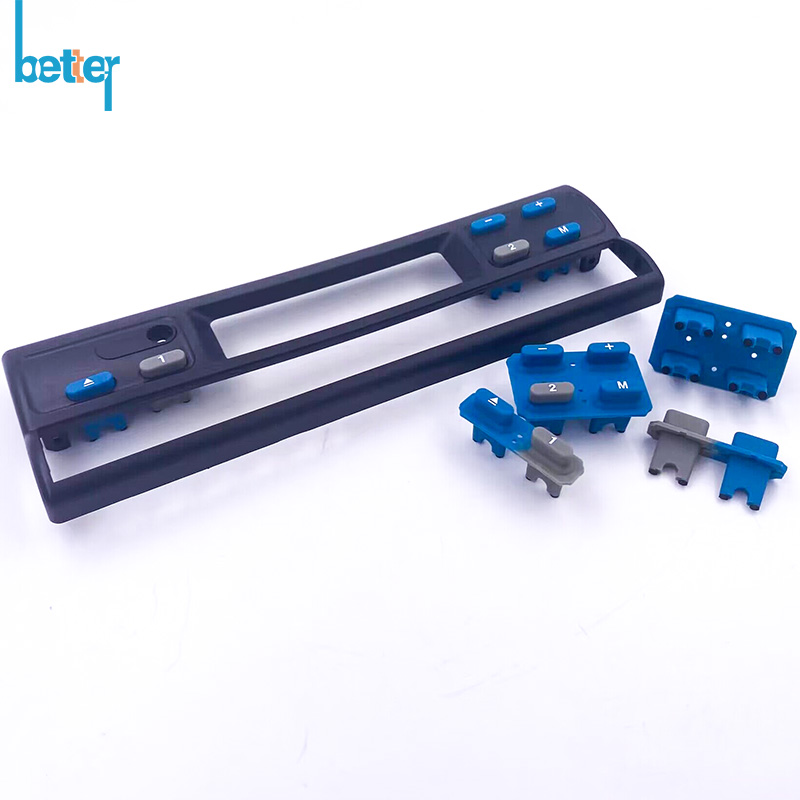

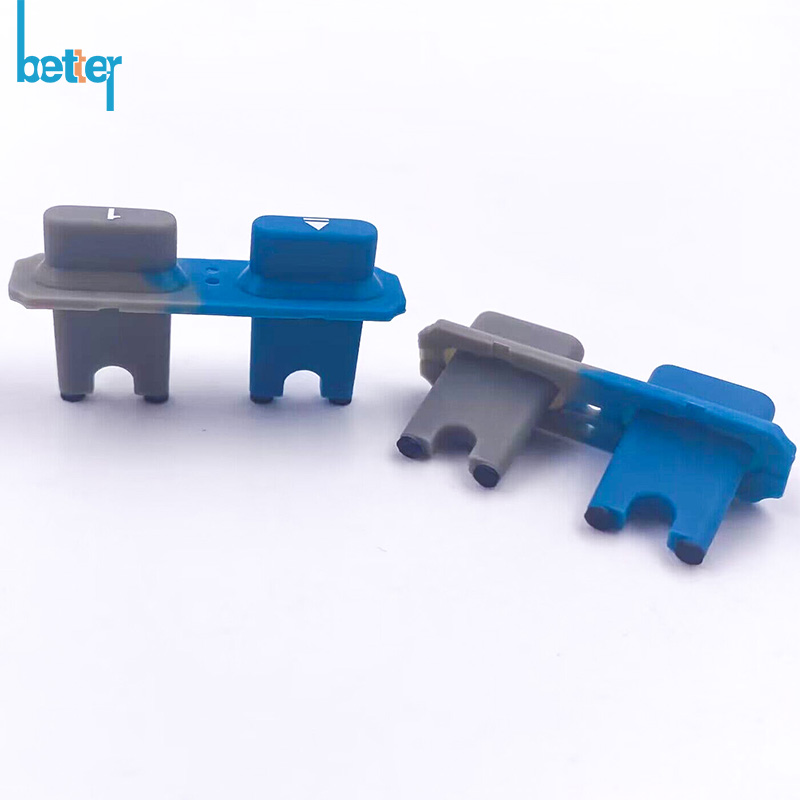

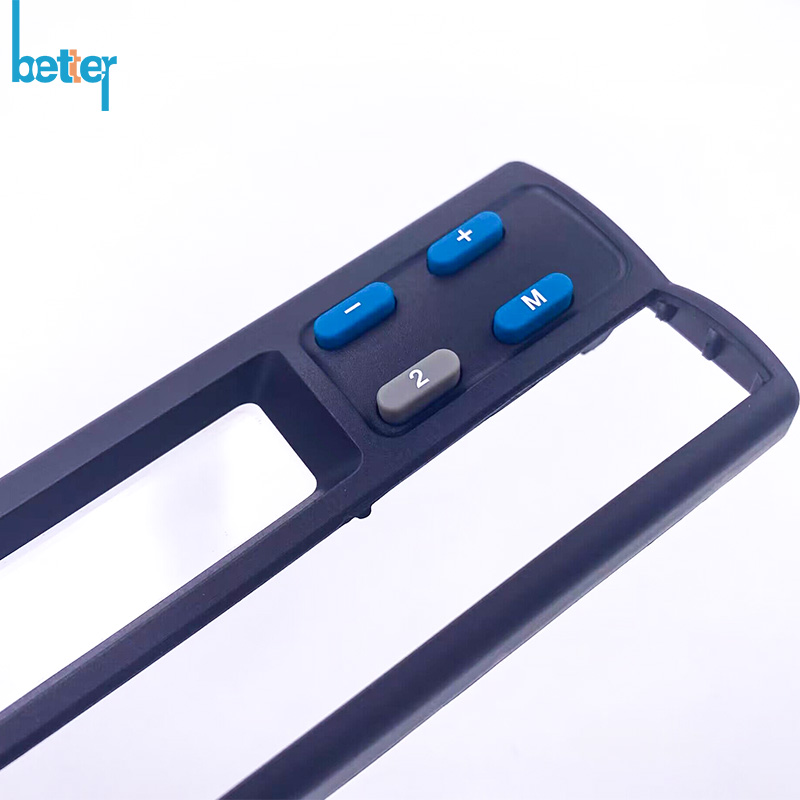

Dual&Double Color Rubber Switch Button

Dual&Double Color Rubber Switch Button

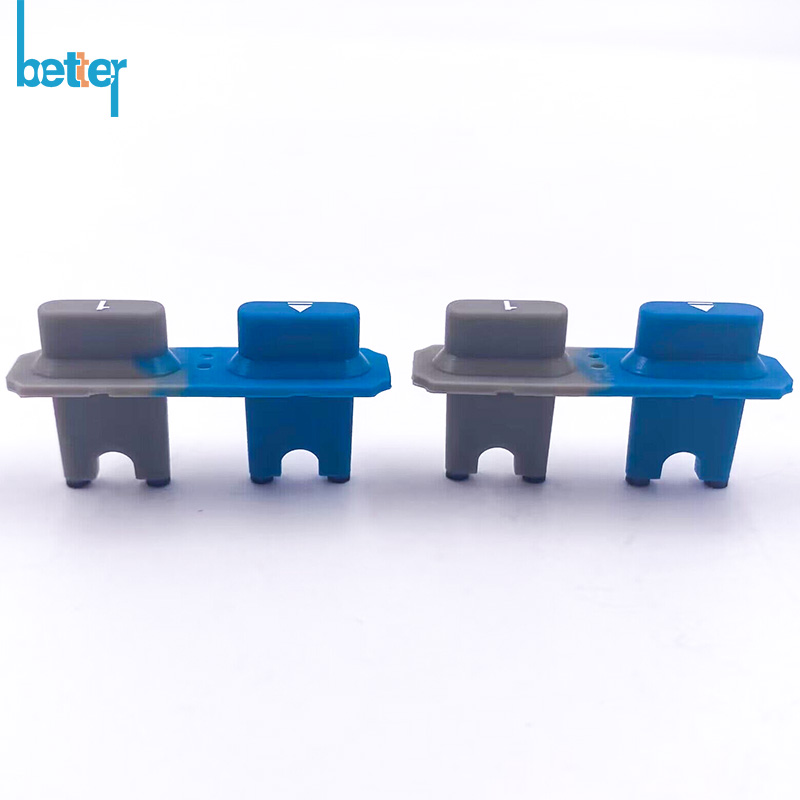

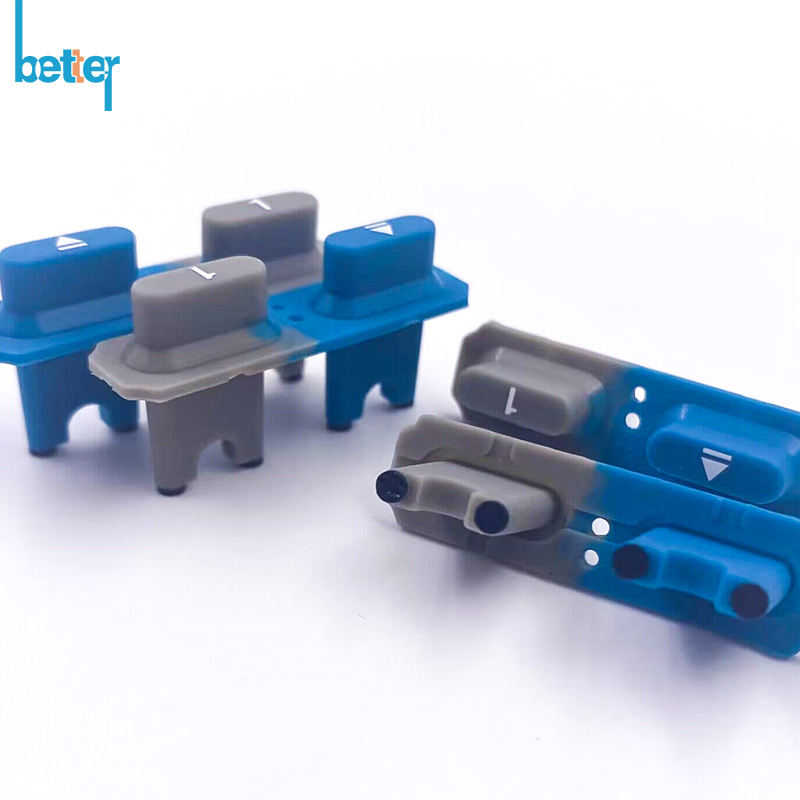

Dual&Double Color Rubber Switch Button, also known as the silicone multicolor keyboard or colorful button pad, double color silicone switch button etc., which will improve the beauty of the keypad and not affect the button actuaction force.

There are two ways to mold the dual&double color rubber switch button. If need different color keys, but don’t want color-mixing, overmolding neatness and complete color keys process is a good choice. But if don’t mind color bleeding and color flow slightly to the bottom of the switch button, we can choose to made by key setting flow molding.

Dual&Double Color Rubber Switch Button Manufacturing Process

Overmolded & key setting molding of dual&double color rubber switch button -

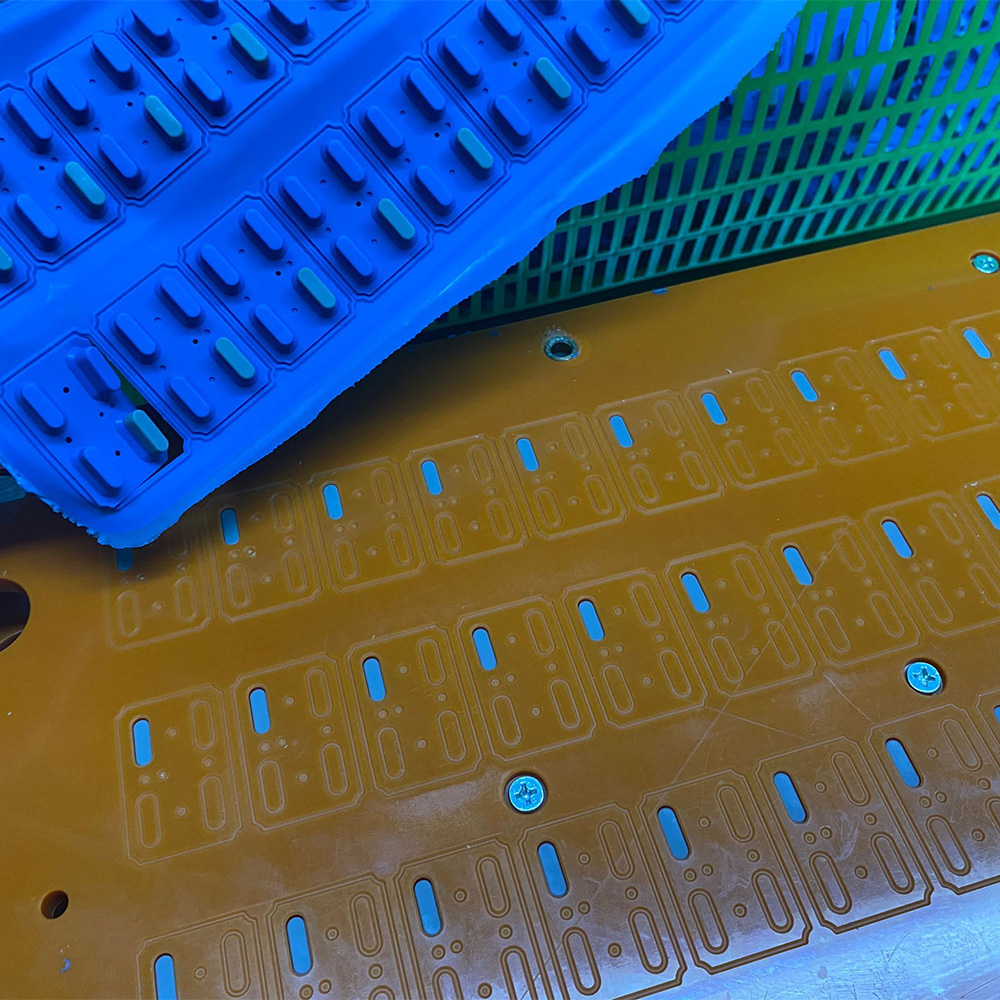

Firstly, for overmolded dual color switch button, it has to mold the small part of the desired colorful silicone rubber switch button keys in one compression mold. Generally it will require harder hardness than the main switch button parts.

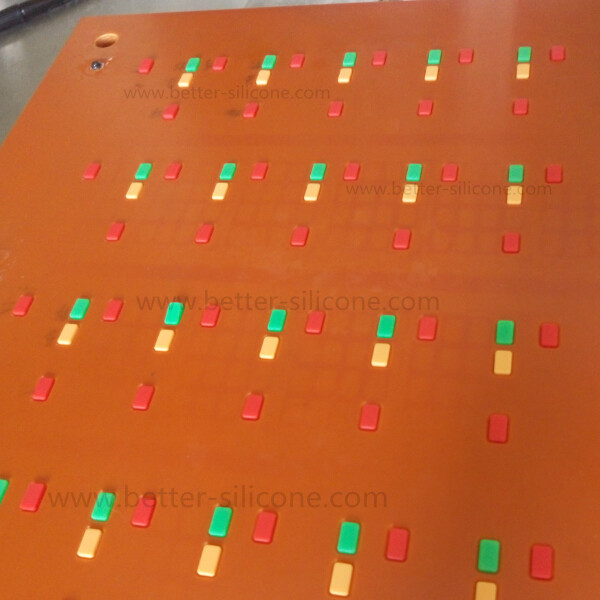

Secondly, insert the small colour keys to the key positioning tool. The key insertion tool will be used to push the insert rubber buttons into the main mold tool.

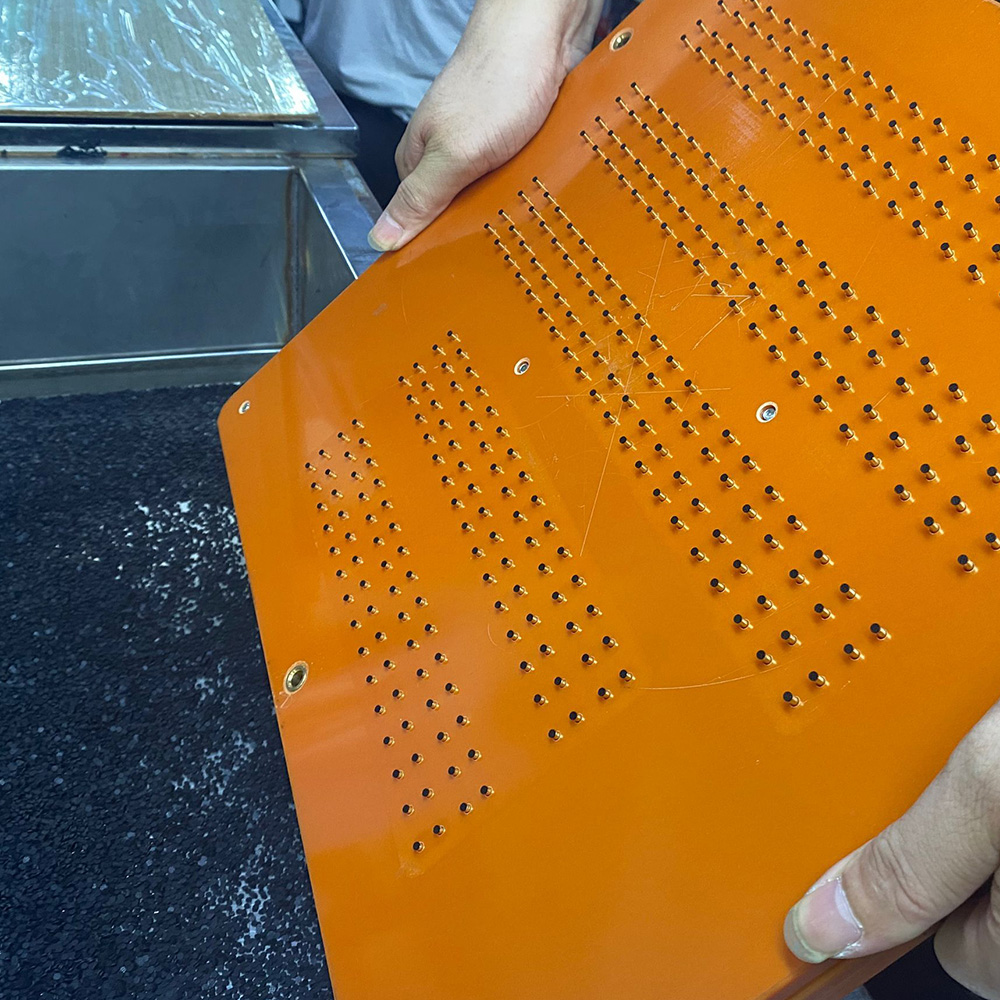

Thirdly, if need the conductive pills under the bottom of the keypad, such as conductive carbon pills, golden pills, nickle pilss ect, need to use pills positioning tool to absorbed the pills then put into the related main mold tool postion.

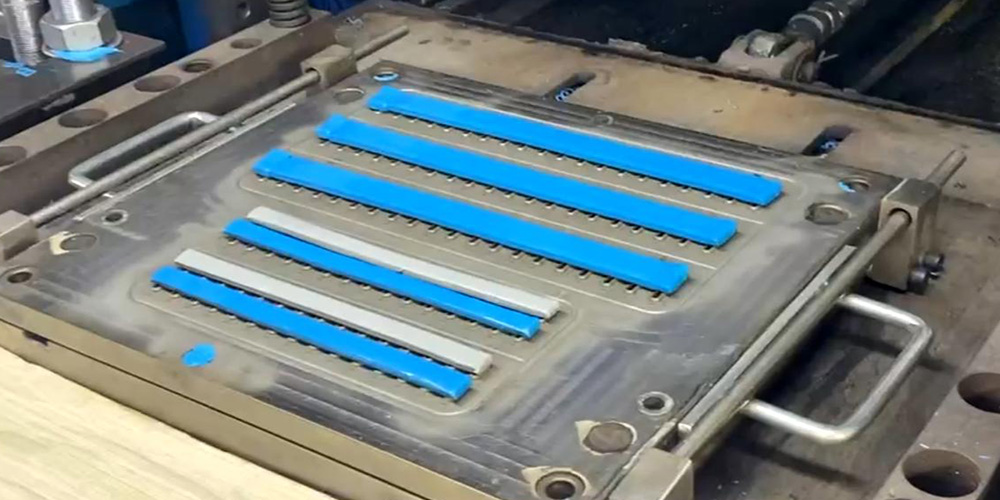

Forthly, for key setting flow molding part, put the cut-pieces of the colorful raw material into the pre-heated main mold. The vocanization process will cured and bond the dual&double color&hardness silicone in the mold, with such overmolded&key setting flow molding process, we can produce one silicone rubber keypads with variant in hardness and colors.

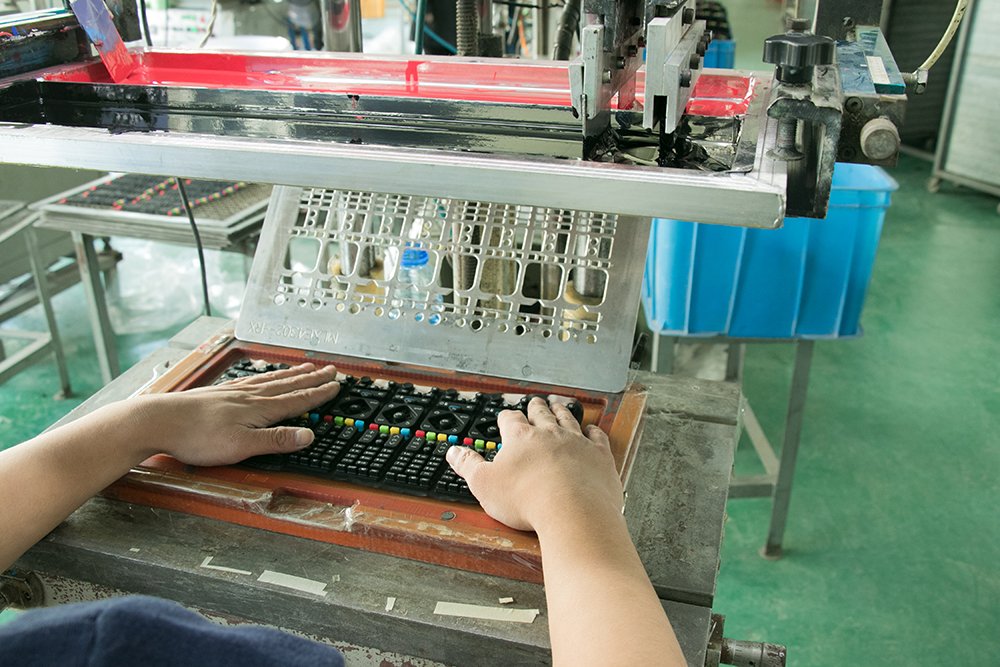

Fifthly, screenprinting colorful legends&symbols&characters on the switch button’s surface. Screen printing has strong adhension on the screen printing switch button pad, its ink coating is thick and solid which with a strong force, long shelf life and strong three dimensional sense.

Finally, spray protective coating, such as PU coating, matt smooth coating, epoxy coating etc., the protective coating can help to increase the lifecycle of the switch button by enhencing wear resistance, it also can prevent the dust and provide good tactile feelings of the keypad surface.

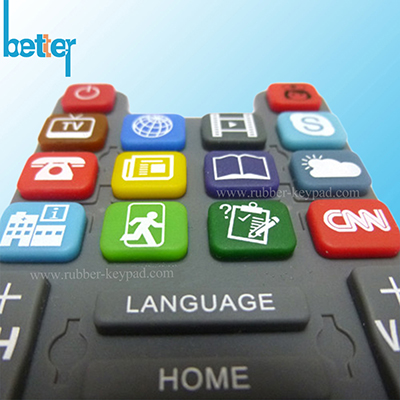

Overmold Dual&Double Color Rubber Switch Button process allows to produce the silicone rubber keypad top keys very hard and then the keypad bottom to the lower hardness. This is a popular design because it allows for a plastic feeling while avoiding the cost associated with plastic injection mold. The overmolding can improve the silicone rubber keyboard in functionality, the visual sense and the bond strength.

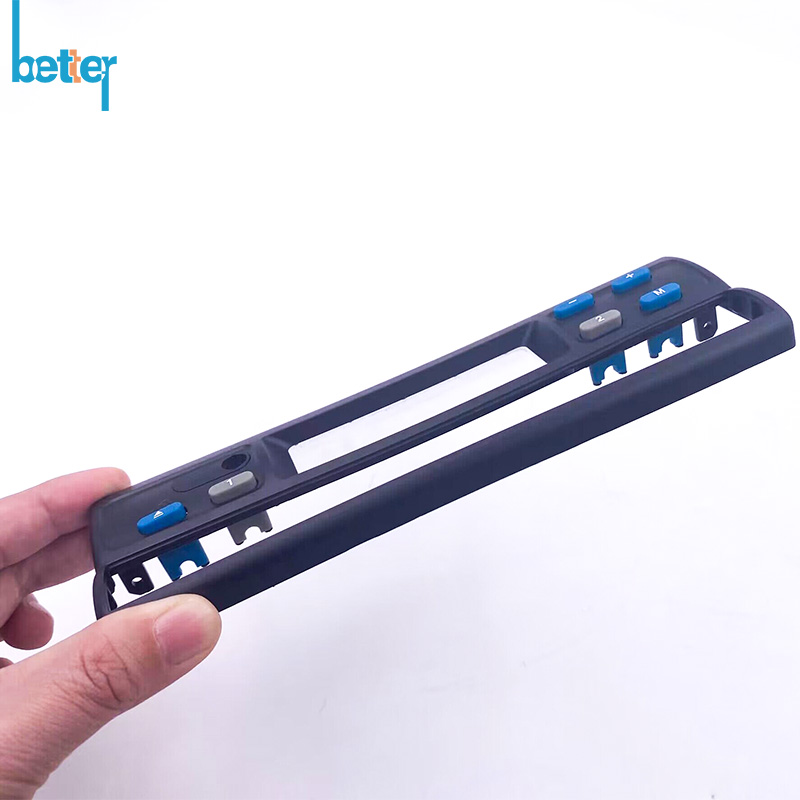

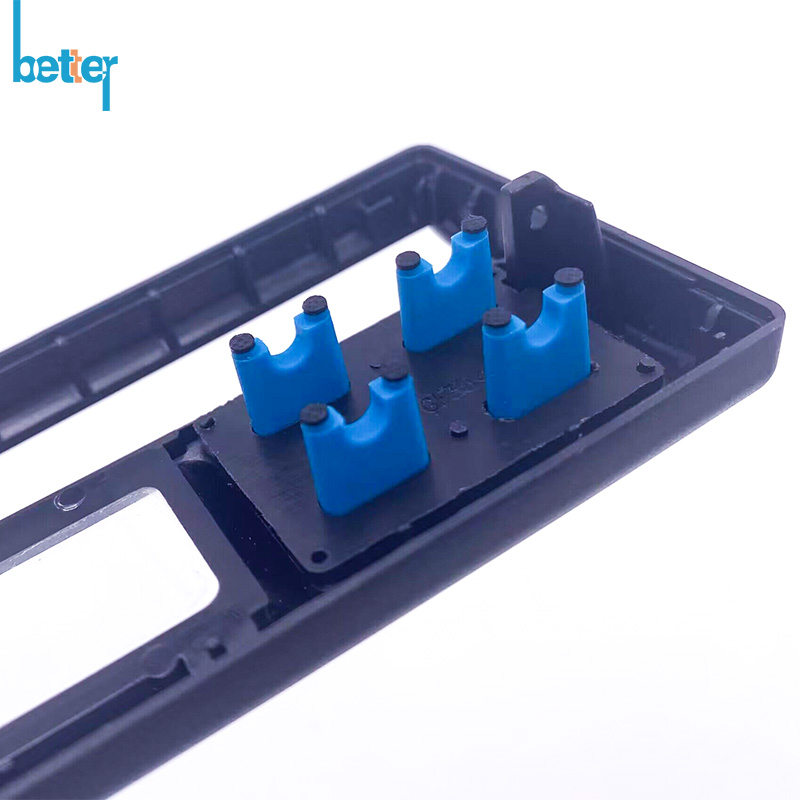

Overmold Dual&Double Color Rubber Switch Button usually will assembly with plastic or metal housing shell and applied in electronic products. Generally when engineer evaluate the carbon pills rubber keypad, we will ask customers to send us the assmbly housing shell and PCB drawing to make analysis together, then they will provide the suggestions and DFM report for the whole assembly structure.

Xiamen Better Silicone Rubber Co.,ltd provides customized development and production services for overmold dula&double rubber switch button.

You only need to provide samples or 2D&3D design drawings, we can according to your requirements to produce satisfactory products. Even if you do not have ready-made samples and drawings, just need to give us the structure information of your product, we can also help you complete the whole design and prototype-making.
