Xiamen Better Silicone Rubber Co., Ltd

Silicone Rubber Buttons

Share to:

As a China rubber keypad manufacturer, we have accumulated over ten-year experience in producing all kinds of keypads according to customers' demands and 3D drawings or samples. Our technology and factory equipments enable us to provide customers with competitive silicone rubber buttons&keypads.

  • SR-01
  • Better-Silicone
  • 3917310000
Quantity:

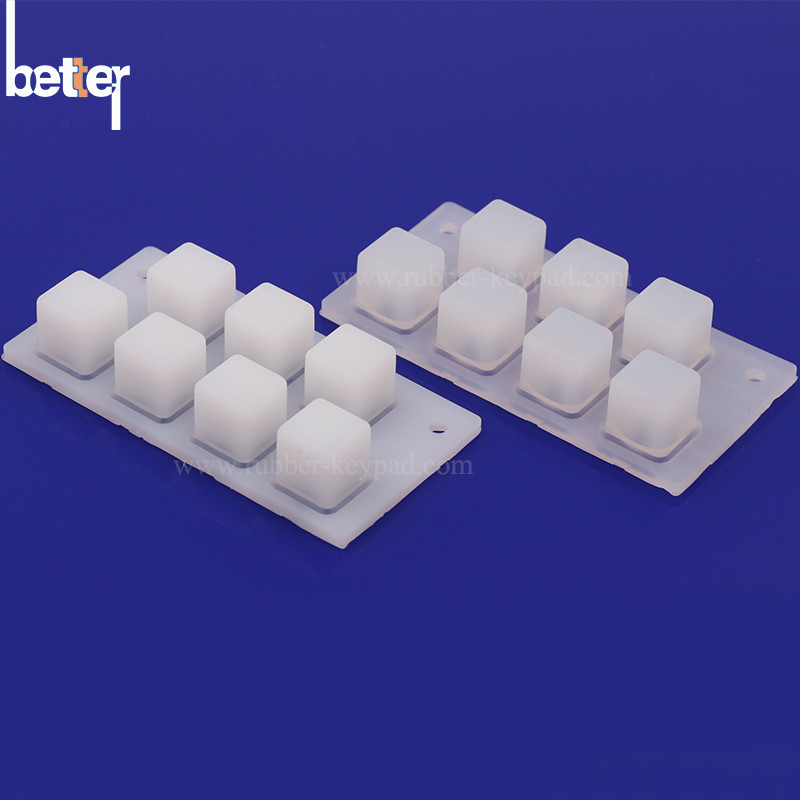

Silicone Rubber Buttons

Silicone Rubber Buttons & Elastomer Buttons, also called Silicone Buttons Pad or Rubber Keypad, as a elastomer switches components, which made from transparent & translucent silicone materials by compression molding & LSR injection moulding, is widely used in electronics, remote controller, medical device and machines etc. As a reliable switches components, silicone buttons have two different functions.

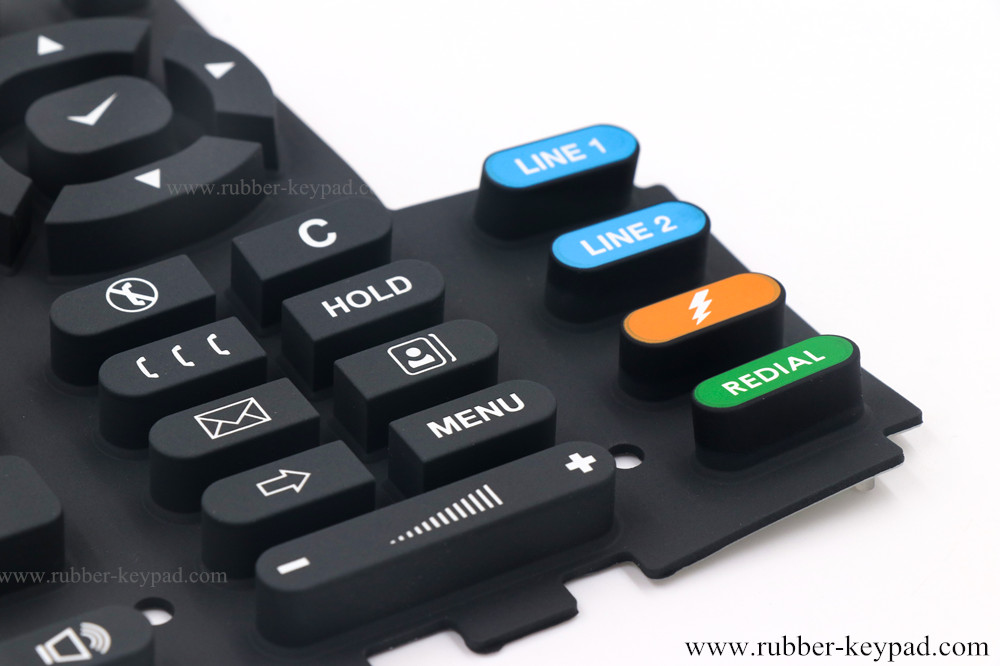

Silicone Rubber Buttons

Silicone Rubber Buttons without conductive pills, which also called button cover or button cap, as a switches keyboard cover, also have dust proof and decorative effects.

Silicone Buttons with conductive pills and buttons webbing, which also called silicone buttons pads & silicone keypads, not only as button cover, but also  as a switch & on-off.

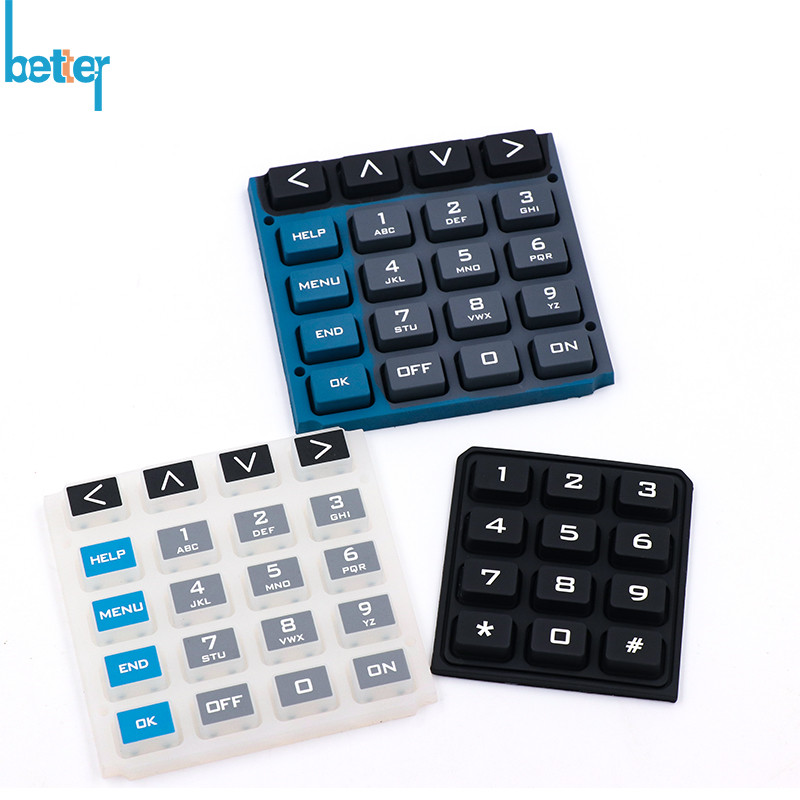

Rubber Buttons for electronicssilicone buttons for electronic

rubber push buttonsilicone button pads



Silicone Rubber Buttons Conductors,

As a push button, like conductive keyboard which mainly have five conductive ways

1. Black Carbon Pills

2. Conductive Ink Printing

3. Metal Domes

4. Gold Pill

5. Nickel Pills

Notes: Nickel Pills, is one kinds of conductive pills, more information, please surf: conductive keypads

Rubber Buttons with Conductive Gold PillsSilicone Buttons with nickel pills

Push Button with Black Carbon PillsConductive Ink Printing Silicone Button Pads

push buttons switches


Life Time Resistance Diameter Thickness Advantage Disavantage
Carbon Pills Above 10 Millions 10-100 Ohms 1.5-8 mm 0.2-0.6 mm Lower Resistance
Stable Life Time
Shape Limited
Conductive Ink Printing Above 10 Millions 50-350 Ohms Available 10-20 Microns Any Shape is Available Resistance Limited
Metal Domes Above 10 Millions 0-10 Ohms Available 0.05-0.1mm Lower Resistance

Bad Tactile Feel

Without Dust Free  Functions

Metal Pills Above 10 Millions 0-10 Ohms Available 0.05-2mm Lower Resistance

Low Production

Efficiency

High Unit Price

Tranparent Silicone Buttons Pads


Silicone Buttons Characters & Text

Silicone Rubber Buttons Legends & Icons have two main types:  Silkscreen Printed and Laser Etched & Engraved

Screen Printed Silicone Button Pads

Silkscreen Printing Silicone Rubber Push Buttons

silicone button pads

rubber push button

Backlight Silicone Push Button


Silicone Rubber Buttons Cover & Protective Coating

For more durable, after silkscreen printing or laser cutting, silicone rubber buttons also need protective coating manufacturing process, or need with plastic & metal buttons cover & caps

That have three kinds of protective coated ways for silicone ruber buttons

1. Silicone Oil Coating ( also called matte smooth coating)

2. PU Coating

3. Epoxy Coating

Notes: silicone oil & matte smooth coating have good touch feel and dust proof, and more economical than PU coating.

PU coating is a little more durable than silicone matte smooth coating, and mainly used in outdoor electrical products, but expensive.

Epoxy Coating Silicone Buttons

Better Silicone Keypad

Xiamen Better Silicone Rubber Co., Ltd is specialized in designing and manufacturing all kinds and configurations of Silicone Rubber Keypads for a wide range of applications....
