Silicone Keypad & Silicone Keyboard

Silicone Keypad & Silicone Keyboard, knowns as Rubber Keypad & Keyboard, Silicone Rubber Buttons, Silicone Keymats, which is made from elastomeric translucent silicone rubber materials by compression moldingis widely used in industrial electronic products, medical device, machinery, consumer products as a reliable silicone switches.
silicone keypad.jpg

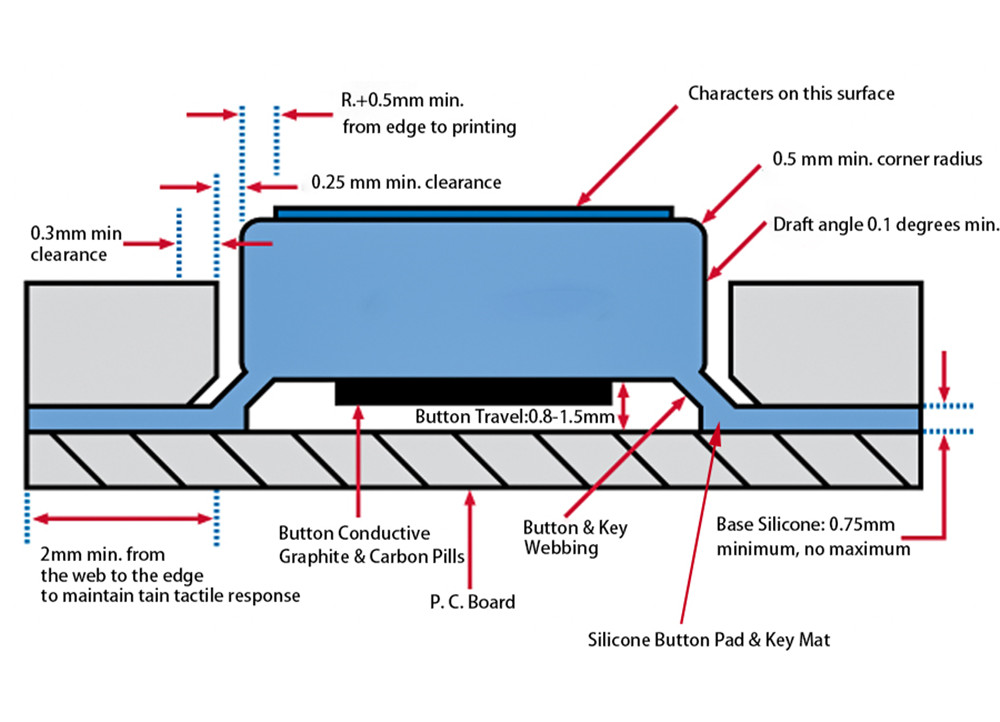

Silicone Keypad Design Structure
Silicone button, button pads, silicon key & button webbing, button travel, and keypad conduction
.


Silicone Rubber Keypad
Silicone Keypad Surface Symbols & Icons:
Screen Printing, Laser Etched & Cutting for backlight & backlit legends, Embossed or Debossed Molded Legends, Spraying Coating etc.
Silicone Keyboard
Silicone Keypad & Keyboard Cover, or Surface Cover:

Matte Smooth Coating

PU Coating

Epoxy Coating

Plastic Button Cap,

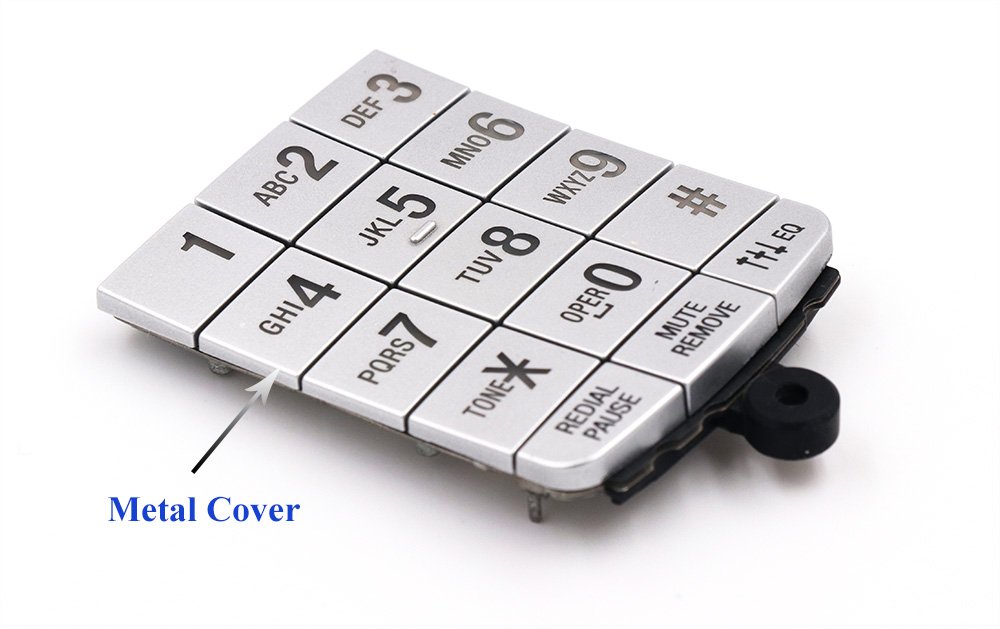

P+R keypad .jpg                    Metal Key Cover                                                      Transparent Silicone Button Cover etc.

metal key cover keypad.jpgtransparent silicone button cover.jpg

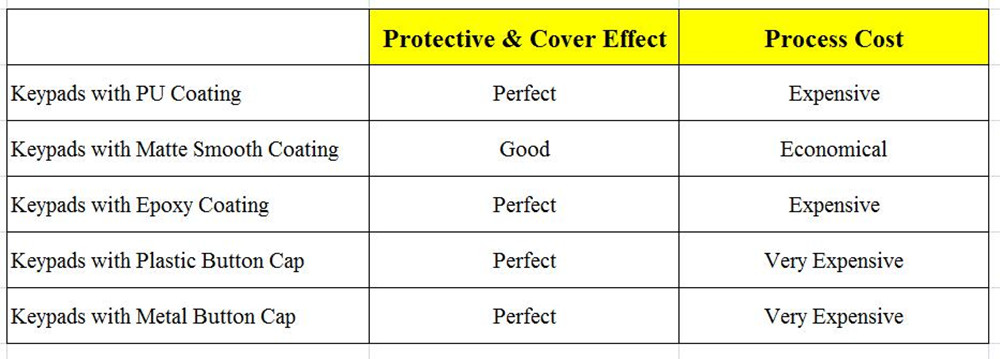

Silicone Keyboard Cover

Silicone Rubber Keypad Conductive & Conduction Materials or Ways:
1. Carbon Pills & Graphite Pads,

2. Electrically Conductive Printing Ink,
3. Metal Domes
4.
Golden Pills & Copper Pads,
5. Nickle Pills

Silicone Rubber Keypad conduction

Silicone Keypad & Button Travels:
The distance between silicone button's conduction tand PCB conductive layers
Commer Silicone Keypad Travel choose: 0.9mm - 1.2mm


Silicone Keypad Actuation Force:
Mainly choose 90grams - 180 grams for good tactile feel & sense

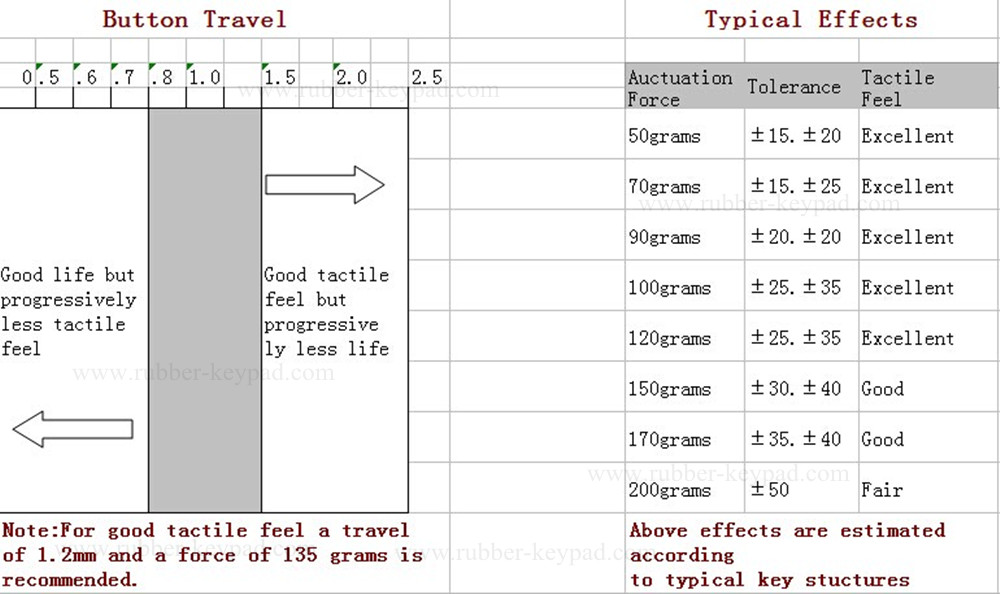

Rubber Button Travel
Silicone Keypad Stroke Curve


Silicone Rubber Keypads Design or Manufacturing Process
Not only in consideration of actuation force and silicone rubber keypads structure like silicone buttons travels, keypad conductive materials, silicone rubber buttons webbing, but also should in view of silicone surface & materials demands, like symbols & icons, protective keyboard cover, silicone keypads materials choice & transparency, hardness, color spraying coating.
Rubber Keypad
What is Silicone Rubber Keypad common quality problems
1. Silicone Keypads & Keyboard protective cover will affect keypads actuation force and tactile feelings.
Like PU coating layers or uniformity, not only increase silicone keyads actuation force, but also will affect tactile feels.


2. Right Actuation force or within the limits of actuaction force telorance is not equal to good tactile feeling.

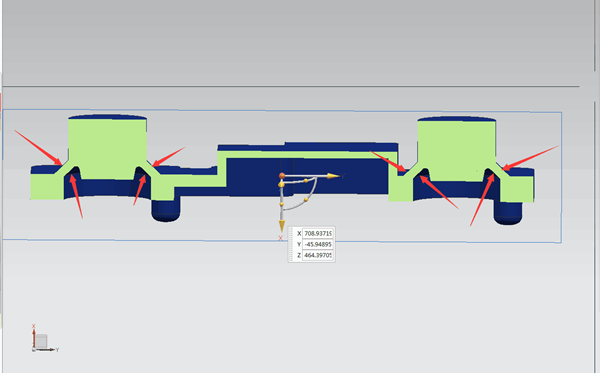

Silicone keypads have good tactile feels: one need right buttons travels, the other need buttons & keys webbing thickness should be same or harmonious.

Notes: silicone button and test the buttons webbing thickness is same.
Silicone Keypads Webbing


3. Silicone Keyads & Buttons spraying color coating will affect actuation force and tactile feels.
This is one of button keypads technical difficulty for silicone keypads manufacturers. Like silicone keypads PU coating, silicone keypads color coating layer thickness and uniformity will affect silicone keyboards actuation force and tactile & touch feelings.
Suggest: Color coating keyboards, choose metal domes for stable actuation force.

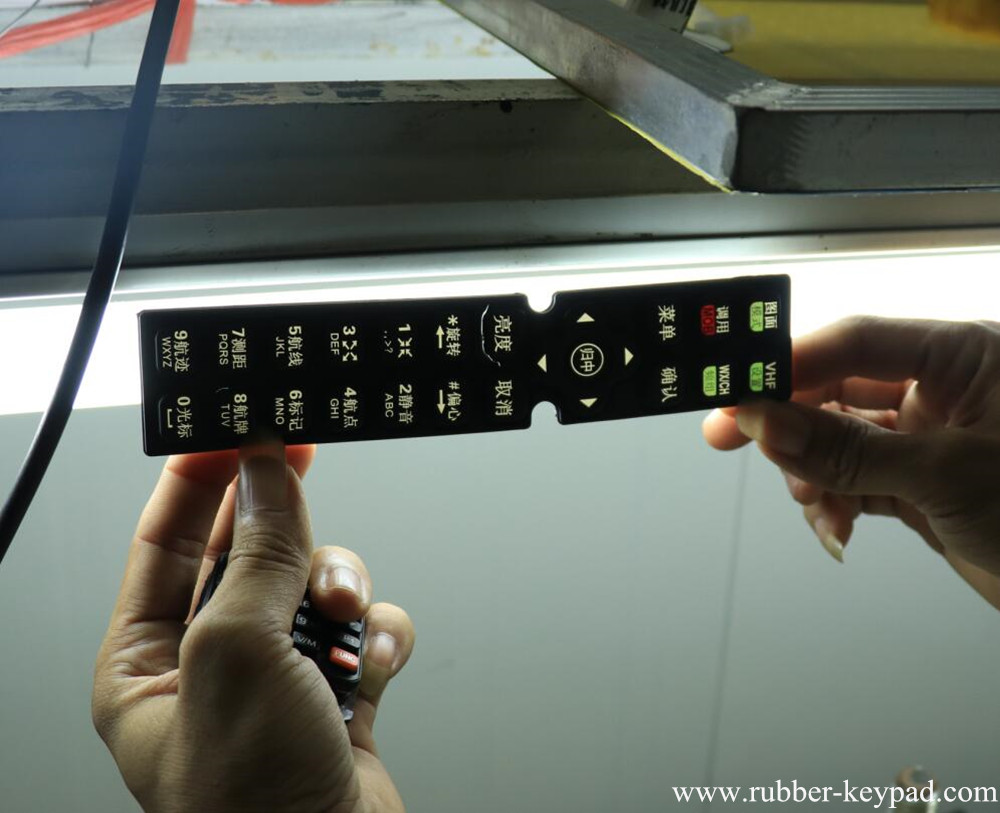

4. The distance betweem silicone buttons distance or silicone button height  will affect color coating effects.
Silicone rubber buttons distance if too short buttons height is too high, can't make sure whole silicone keyboards will be coated and easy to cause light leak.
This kinds silicone rubber keyboards should do color spraying coating by handwork, not by automatic spraing machines.

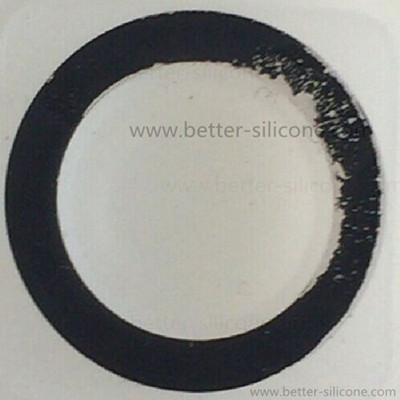

5. Conductive ink printing and screen printing is easy to wear off if conductive ink & screen printing ink  is not drying enough,  thickness is too thin.
conductive printing inkPrinting Silicone Keypad



Silicone Rubber Keypad Features

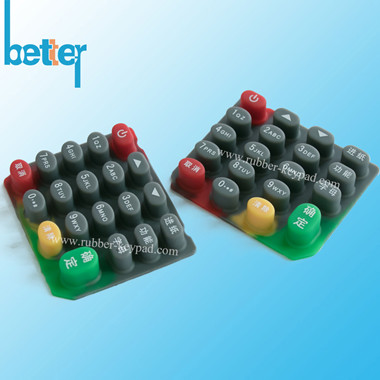

Rubber Keypad    Silicone Membrane Keyboard
Silk Scree
n Printing
Rubber Keypad                 Self Adhesive Silicone Keyboard & Keypad

Printted Characters or symbols on silicon keypad’s surface       Silicone Keypads with self adhesive tape & film

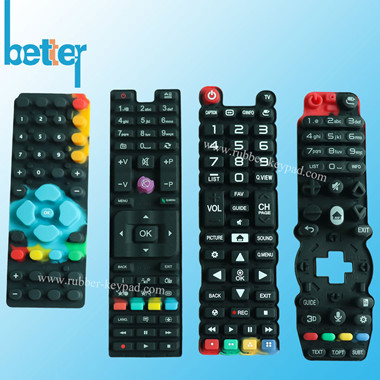

Laser Engraving Keypad    Remote Control Keypad
Laser Cutting Silicone Keypad & Keymat        Remote Control Silicon Keypad & Keyboard

Laser Etched Process for Desired Backlight Symbols               Multi-Process for TV Set, Air Condition & Fan Remote Controller

Epoxy Coating Rubber Keymat    Conductive Keyboard

Epoxy Coating Silicone Keyboard                     Electrically Conductive Ink Printing Keypad

Epoxy Resin Coating for Keypad's Surface Protection             Transfer Conductive Printing for Keyboard Conduction

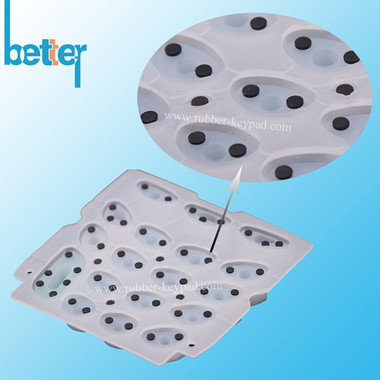

PU Coating Silicon Keypad    graphite rubber keypad

PU Coating Silicone Keyboard                           Graphite Pads & Carbon Pill Silicone Keypad

PU ink Coating for Button & Silicone Icons Protection                       Black Carbon Pills for Keypads Conduction

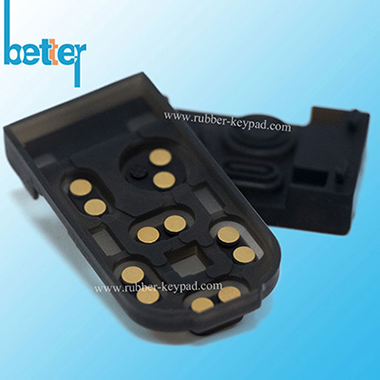

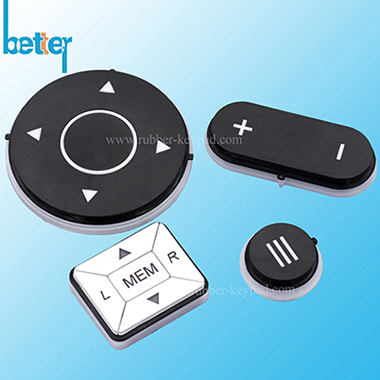

P+R Rubber Keypad    Metal Pill Rubber Keypad

Plastic Rubber (P + R) Keypad                          Silicone Keyboard with Metal Pills

Silicone Rubber Keypad Glued Plastic Button Caps                Copper & Golden Pills for Keypads Conductive

Overmoulding Rubber Keypad    nickel pill rubber keypad
Different Hardness Silicone Keyboard              Silicon Keypad with Conductive Nickle Pills

Overmolding buttons + pads, Dual durometer Keypad          Keyboard Pill which mixed with conductive Nickle Powder

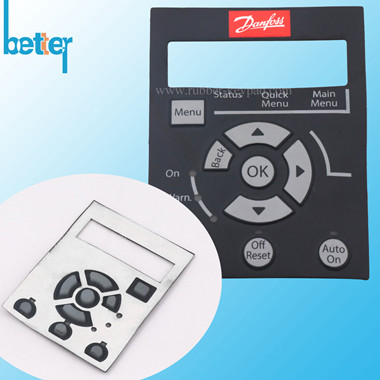

fluorescent silicone keyboard    Silicone Membrane Keyboard

Fluorescent & Glow-in-Dark Keypad                Silicone Keypads with Metal Domes

Mixed Fluorescent powder with silicone before molded            Backing Adhesive Metal Domes + Silicone Rubber Keyboar
Membrane Keyboard    Silicone Button Pad

Membrane Keyboard & Switches                      Silicone  Rubber Buttons

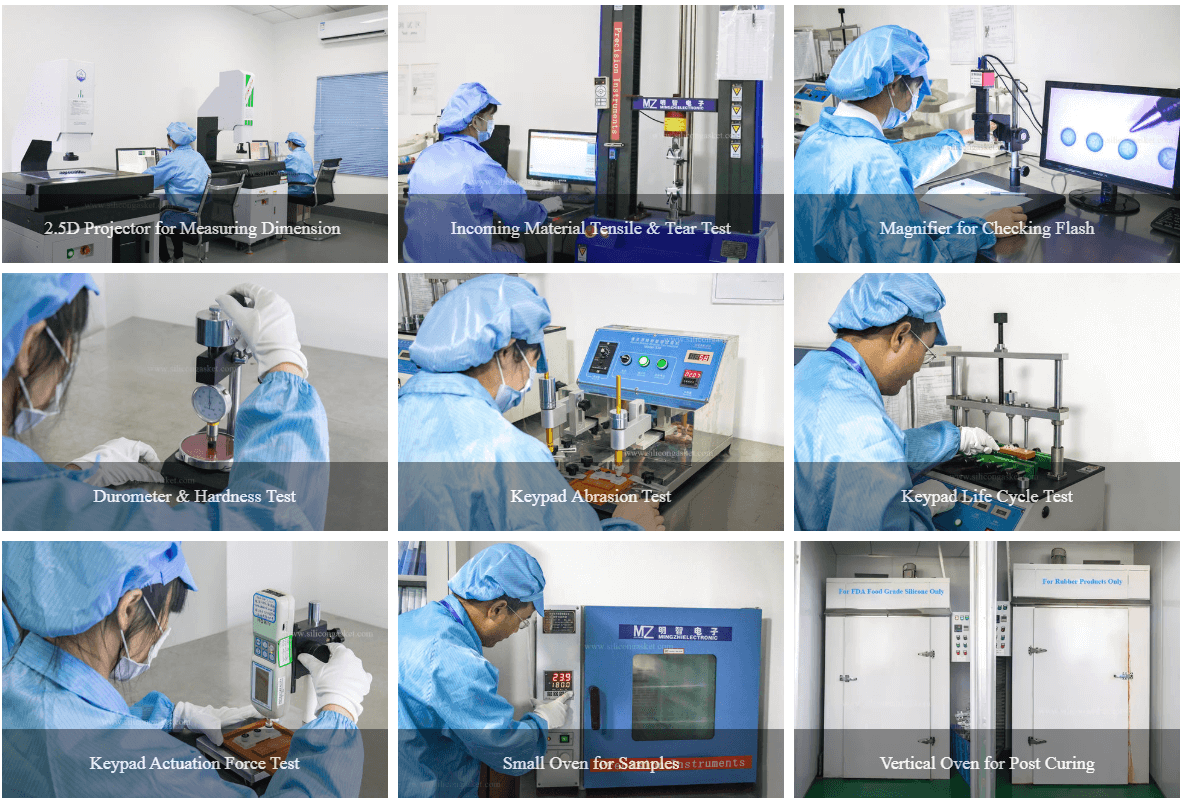

Keypad Processes


Our Company

Xiamen Better Silicone Co., Ltd is specialized in designing and manufacturing all kinds and configurations of Silicone Rubber Products for a wide range of applications. Our  silicone rubber keypad solutions combine excellent conductivity, reliability and long life span, which can meet all the environment's requirements and fit your individual needs.

Our company also make Silicone Rubber Compression Molding, Plastic Injection Molding, LSR injection Molding, and produce different kinds of elastomers silicone rubber components, plastic & liquid silicone rubber injection parts etc according to customers 2D & 3D design drawings or samples.






Silicone Rubber Keypad Quick Quotation Requirements

1. Offer 2D & 3D Design drawings or samples

2. Keypads Legends demands.

3.Keypad's Surface Protective Coating Demands.

4. Keypad's Conduction Ways or Resistance Demands

5. Quantity Demands
