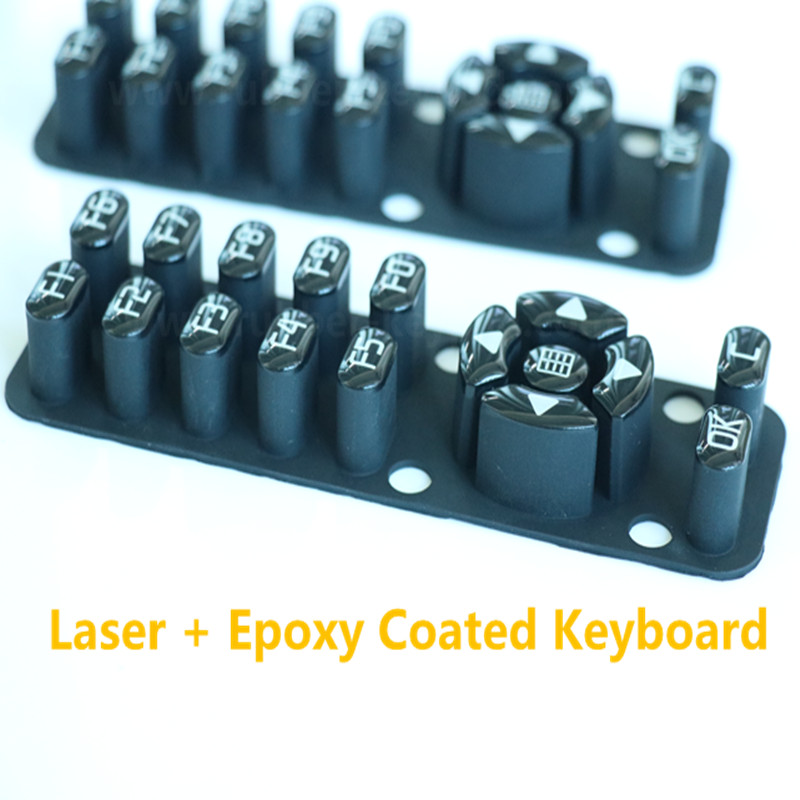

Elastomeric Epoxy Keypad
Epoxy Coating Keypad is also called Epoxy Coated Keyboards & Buttons — the silicone keypad top is coated by epoxy resin, which has abrasion resistance function to resist chemical or oil.
Epoxy coating is one kind of silicone rubber keypads surface protective & cover coated process.

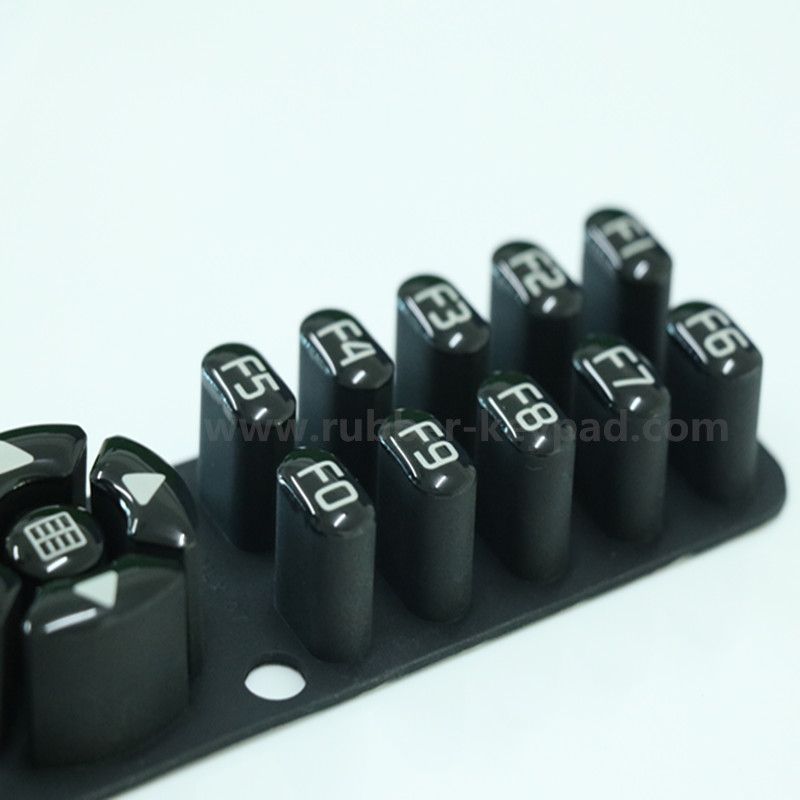

Epoxy Coating Silicone Rubber Keypad, the key top of Epoxy keypad have ornate-crystal beauty and also have a good transparent effects like hard PC PMMA plastic keypad cap. Compared with plastic + silicone rubber keypad ( P+R keypad ), the production cost of silicone epoxy keypad is significantly less, and also more flexible.
Elastomeric Epoxy Silicone Keyboards have beautiful and good transparent surface, the same as plastic button cover.
Applying an epoxy crown to keytops is visually appealing as an economical processing.
Quickly Quotation Requirements
We can help you in incorporating the application of epoxy crowns into the design and manufacture of custom silicone rubber switches.

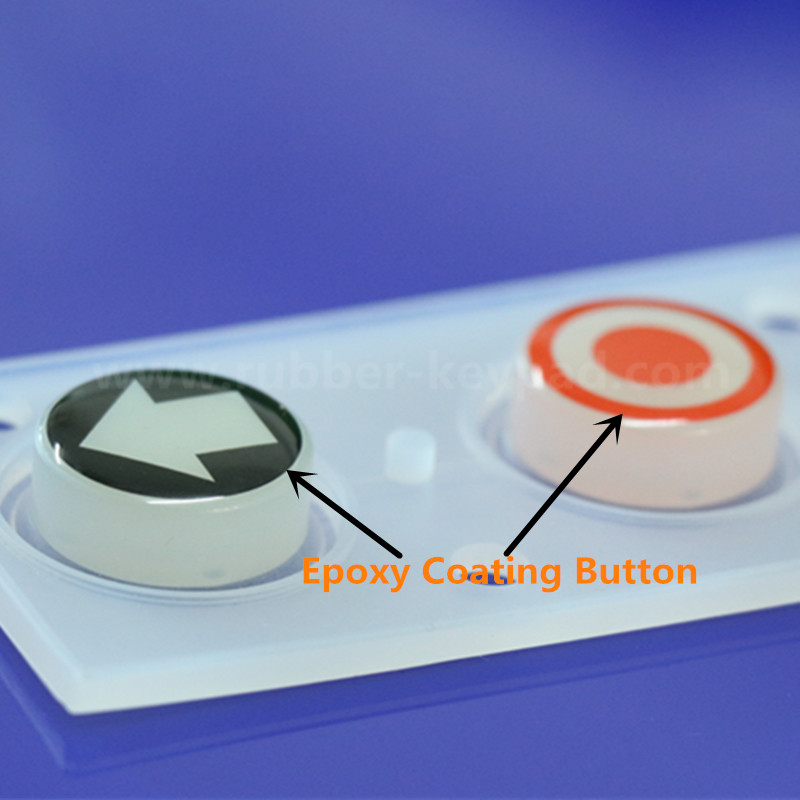

An Epoxy Coating can be applied to conductive rubber keypads to give the keypad a hard plastic feel. This method is used as an alternative to custom keypads with plastic keytops.
Compared with silicone rubber keypad with button caps, the production cost of epoxy coated silicone rubber keypads is significantly less and also more flexiable.
1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples
2. Include number of legend and silicone colors, Of need silicone light guide.
3. With or without carbon pills
4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc.
5. Quantities to be quoted
These are the primary elements for a quotation.

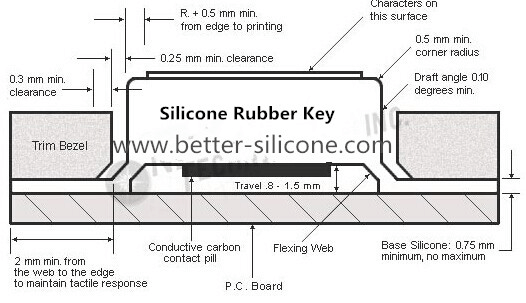

Other details such as travel, force, durometer and tactile response can be determined at the time of order.
Specialty features such as protective coatings, laser etching, light pipes, etc.
should be included.
1. Precision Own Mold-Making Technology (Since 1998)
2. Competitive Price: Origin Manufacturer.
1.) Mold-Making Plant
2.) Silicone Rubber Compression Plant
3.) Plastic Injection Plant
4.) Liquid Silicone Rubber Injecton Plant (LSR)
5.) Assembly Plant.
3. Five Experienced Designers and Engineers
4.Production and Test strictly according to ISO9001.
Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.
5. Production Environment
6. Rapid Reaction Organization: Support Customer at short time
