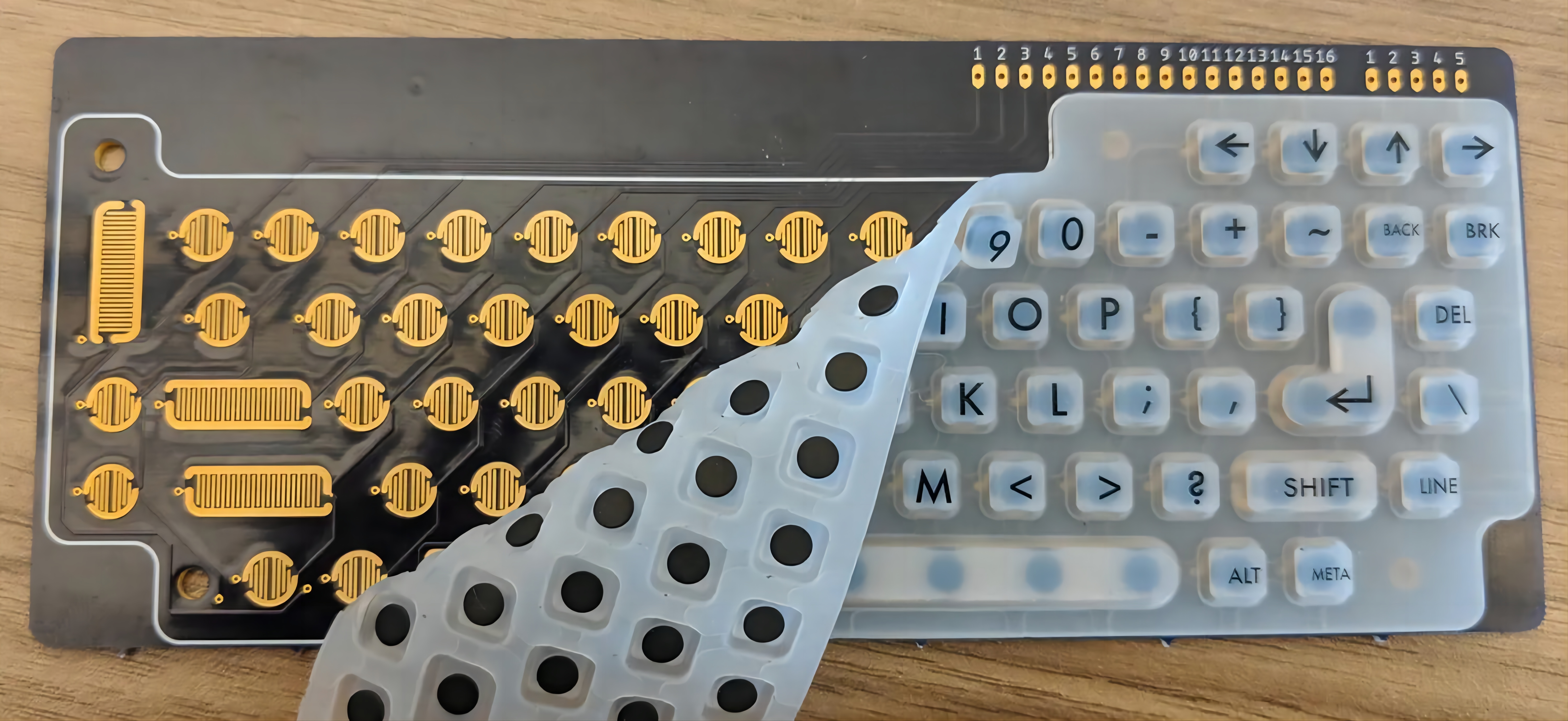

Conductive Silicone Keyboard

Tactile silicone keyboard designed with conductive carbon pill or conductive ink printing.The principle is to use the conductive properties of the conductive rubber to conduct electricity for the keyboard.When we use the keyboard, while pressing it, the conductive rubber will contact with the contacts of the circuit board below, then the conductive silicone keyboard work.And if it is released, it will automatically pop out.

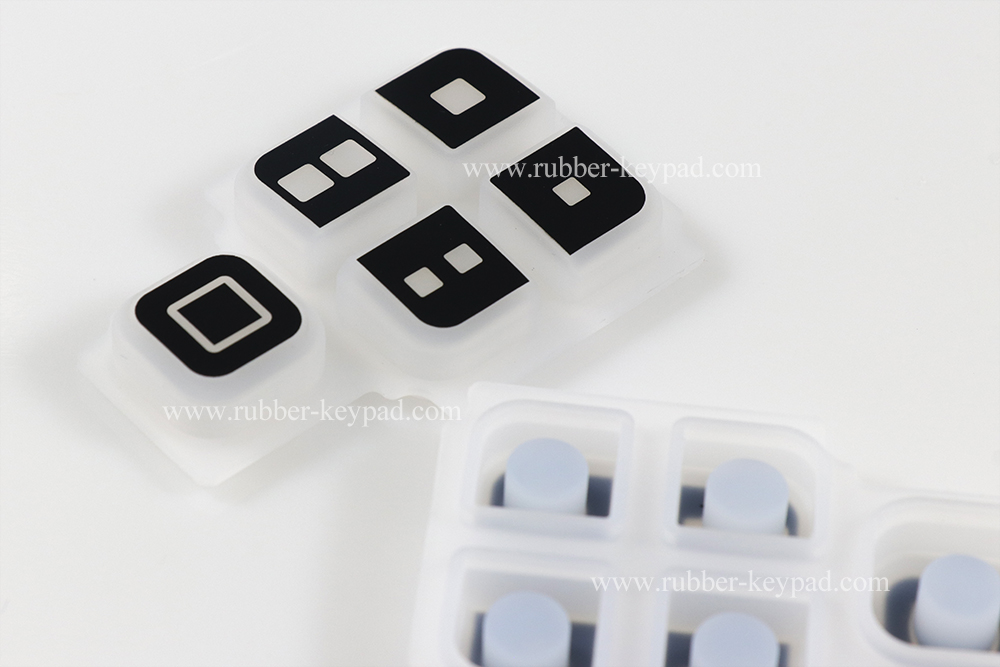

Non-conductive Silicone Keyboard

Non-conductive silicone keyboard that presses against a metal snap dome switch or tact switch.Metal snap dome switches, known as snap domes, are open momentary contacts. They are made of stainless steel. When used with a PCB, they provide a feeling of touch as soon as the user presses the button.The dome gives an audible sound and a feeling of resistance when pressed. The perceived sense of touch is known as the tactile feel.

Silkscreen Printed Silicone Keyboard

It is the most common way to do decorating symbols for silicone keyboard.Multiple printing color is available.Screen printing is a process that uses a woven mesh stencil to transfer ink to the material underneath or substrate.

Laser Etched Silicone Keyboard

Silicone keyboard with laser etched symbols for backlit purposes.It is a process of surface treatment using optical principles.The position of the character would be free of ink, then to achieve light transmitting. Only the characters have backlight effect.

Molded Multiple Color Silicone Keyboard

Requires two sets of compression molding, one for different color buttons, one for whole set silicone keyboard overmolding and key positioning tool.The purpose of key positioning tool is to fix different color buttons into mold cavities for overmolding.Therefore, overmolding rubber contact is also two-shot molding.

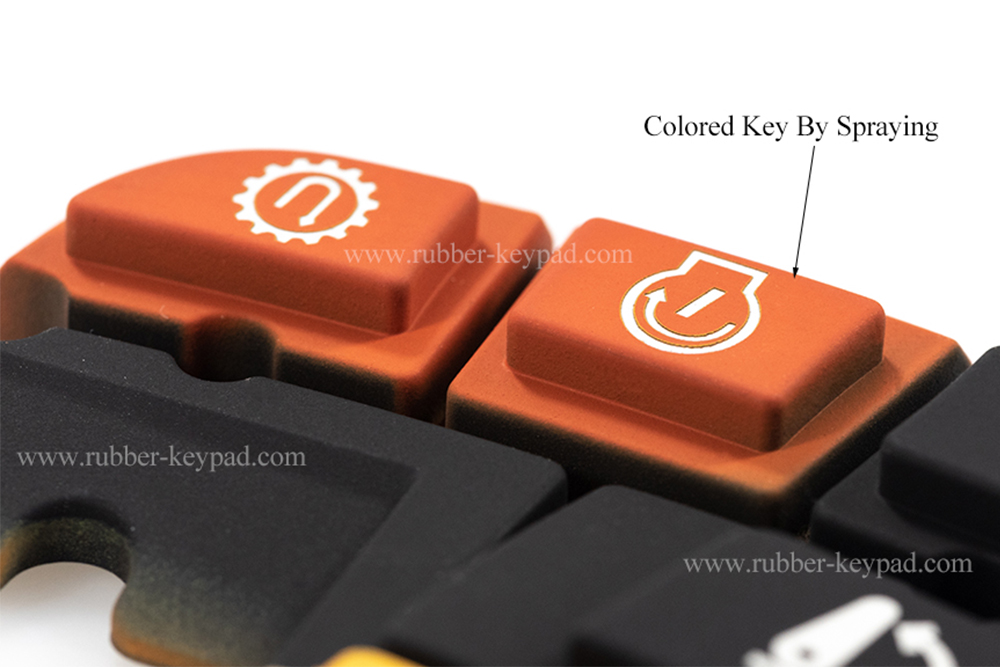

Multiple Color Silicone Keyboard By Spraying

The multiple color sachieved by spraying is usually used for silicone keyboard which need laser etched symbols.By this option, the unit price is hight, because of the higher defect rate of spraying.

Epoxy Coated Silicone Keyboard

Epoxy coating is made up with resin and curing agent. Epoxy coating is a protective transparent epoxy resin coating, which is commonly used in silicone keypad to protect the key surface.This thick epoxy coating gives the silicone keypad a hard plastic feel and shiny look.

UV Resistant Silicone Keyboard

PU coating is UV resistant.It has high resistance to wear for high use applications.The best coating that is 100% applied to keypads and provides resistance to most chemicals.It is widely used in outdoor or  harsh working environment silicone  keyboard.

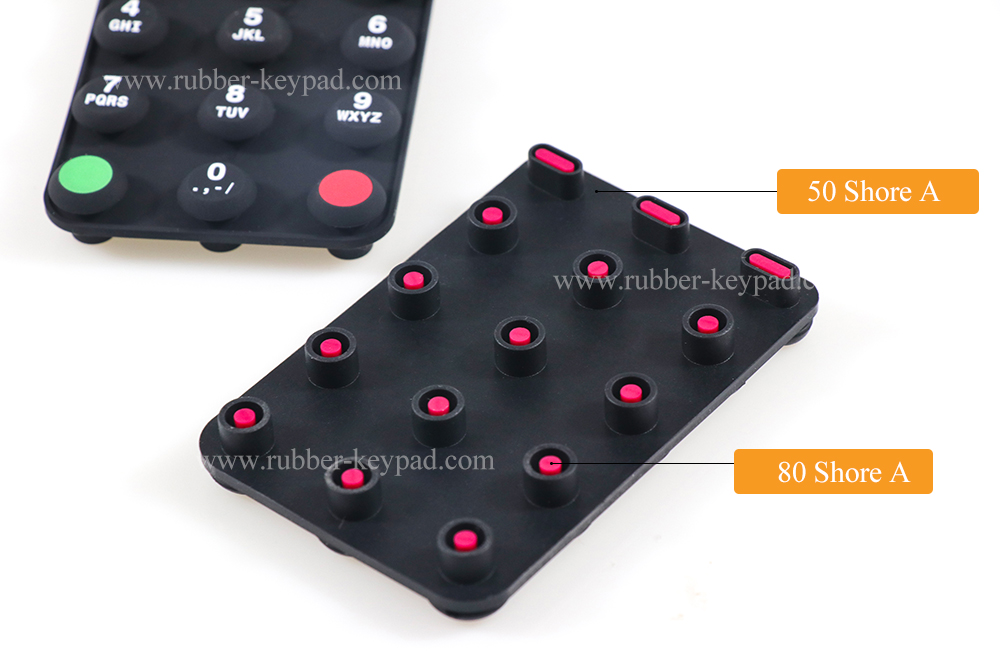

Dual Hardness Actuator Silicone Keyboard

In order to achieve better tactile feeling, customer can choose a harder hardness of the actuator.

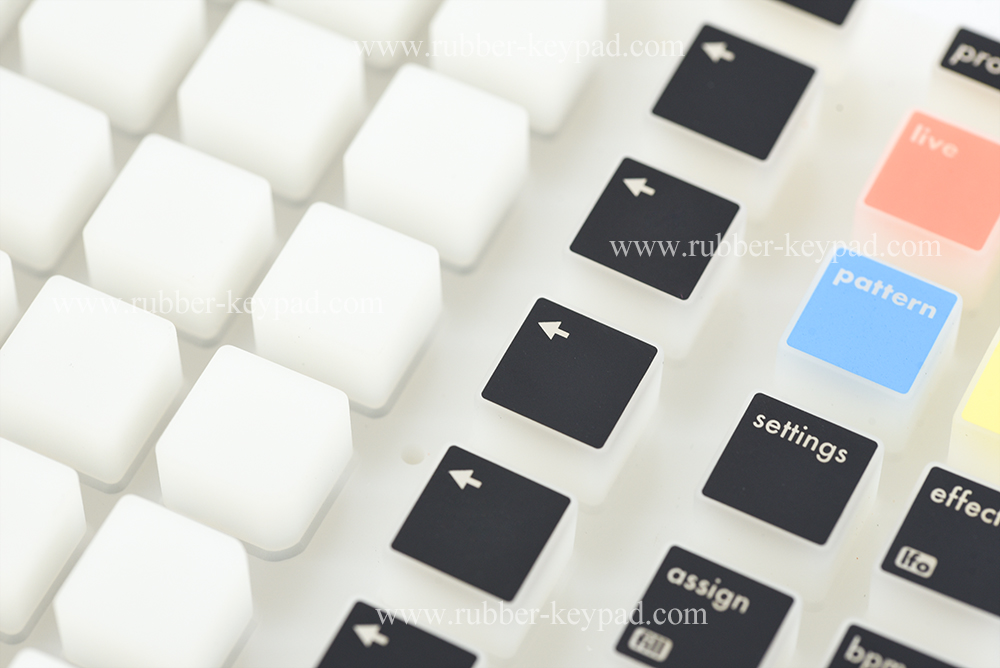

Overmolded Dual Hardness Silicone Keyboard

Dual hardness silicone keyboard is used in musical board, which has softer feeling on the top.

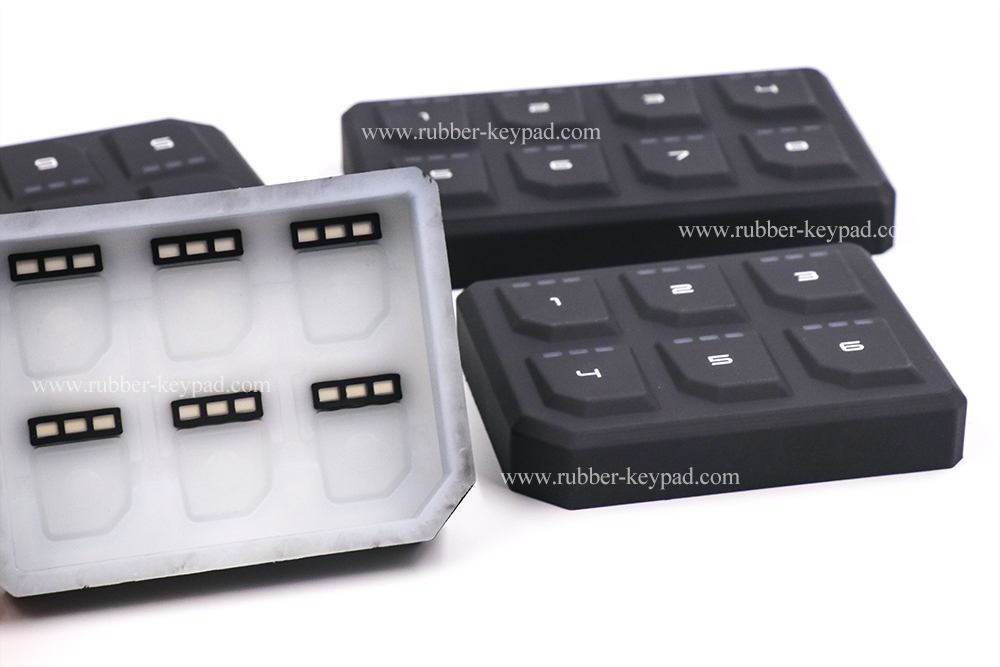

Light Block Silicone Keyboard for Automobile

The light block is processed by insert molding.When a silicone keyboard need different color LED to illuminate the surface, the light block not only can prevent light from bleeding into other portions of the keyboard but also focus the light source to indicate the indicators.

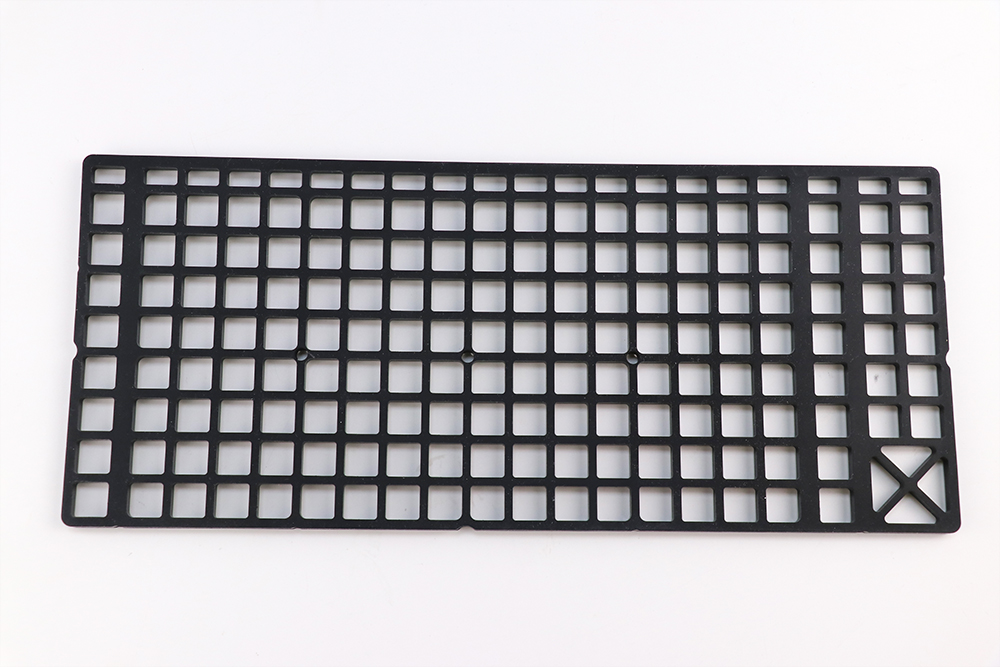

Silicone Keyboard Grid Separator

Design and produce a grid to match with the silicone keyboard.It effectively prevents light from passing through the bottom of the keyboard.When choose silicone grid, the hardness is suggested to do higher, more than 60A.And the color to be black.

Metal Stainless Steel Keycaps Silicone Keyboard

The material of metal keycaps for silicone keyboard can be aluminum or copper or other metals.They are molded by die-cutting or CNC processing. Of course, the price is

most expensive.

PMMA Acrylic Plastic Rubber Silicone Keyboard

P + R rubber keypad also called as P+R keypad and plastic rubber keypad.It is a keypad made of plastic and rubber.Plastic keycaps can be ABS / PC / PMMA / ABS+PC.

Silicone Keyboard With Light Pipe By Spraying

Clear light pipes,without mixed colors of other silicone material.But need extra keycaps tool to mask the light pipes, which cause higher unit price.

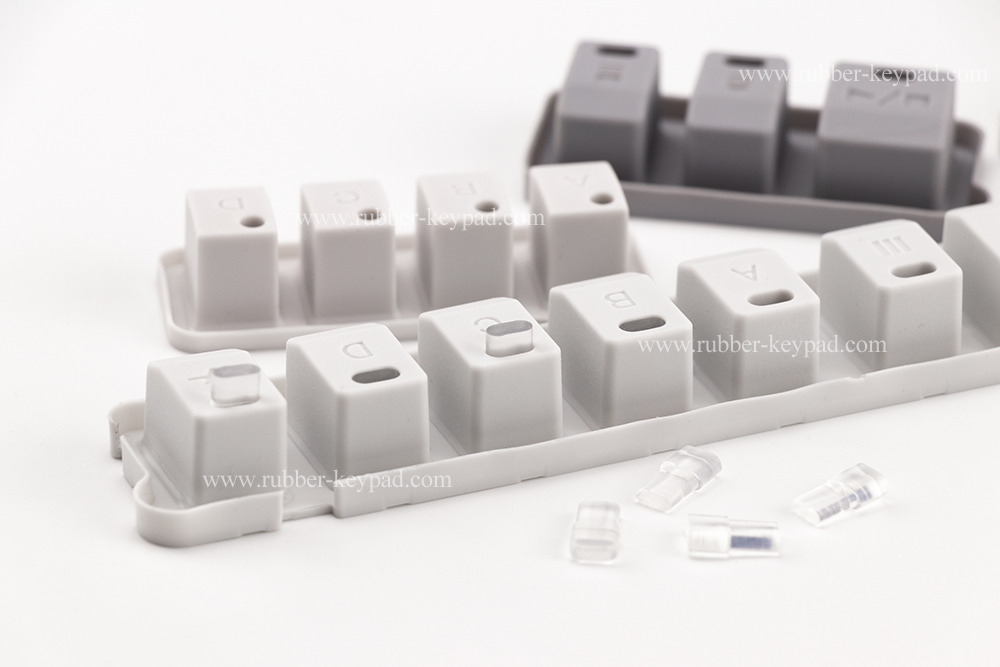

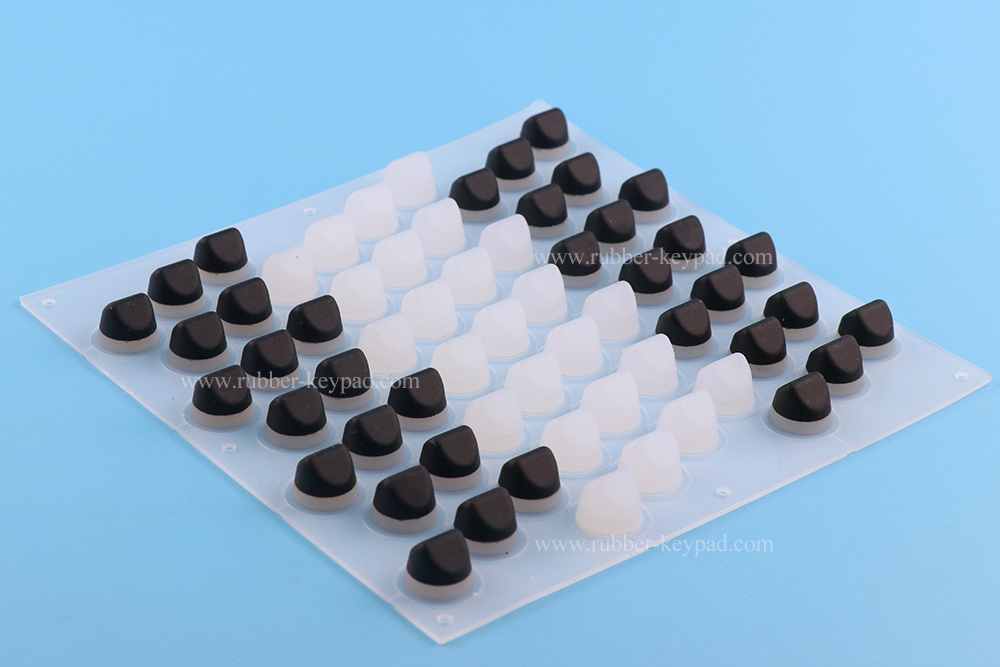

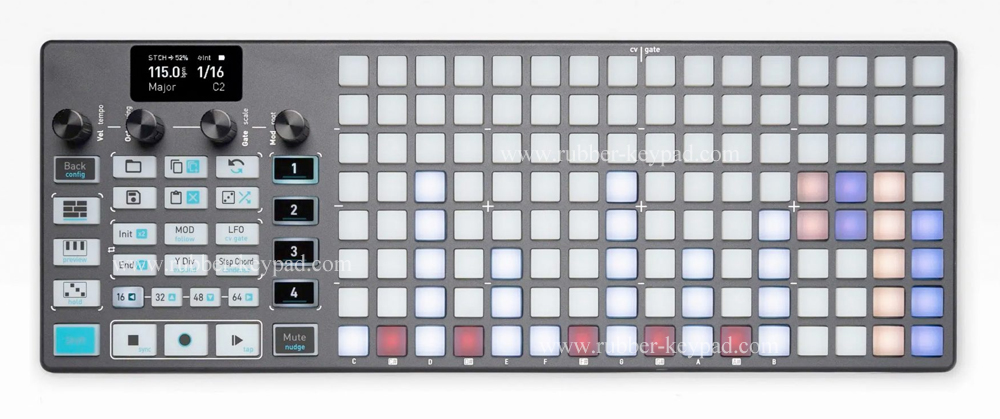

MIDI Silicone Keyboard With Light Up Keys

Mold the clear light pipes separately and then       assemble them with silicone keyboard.

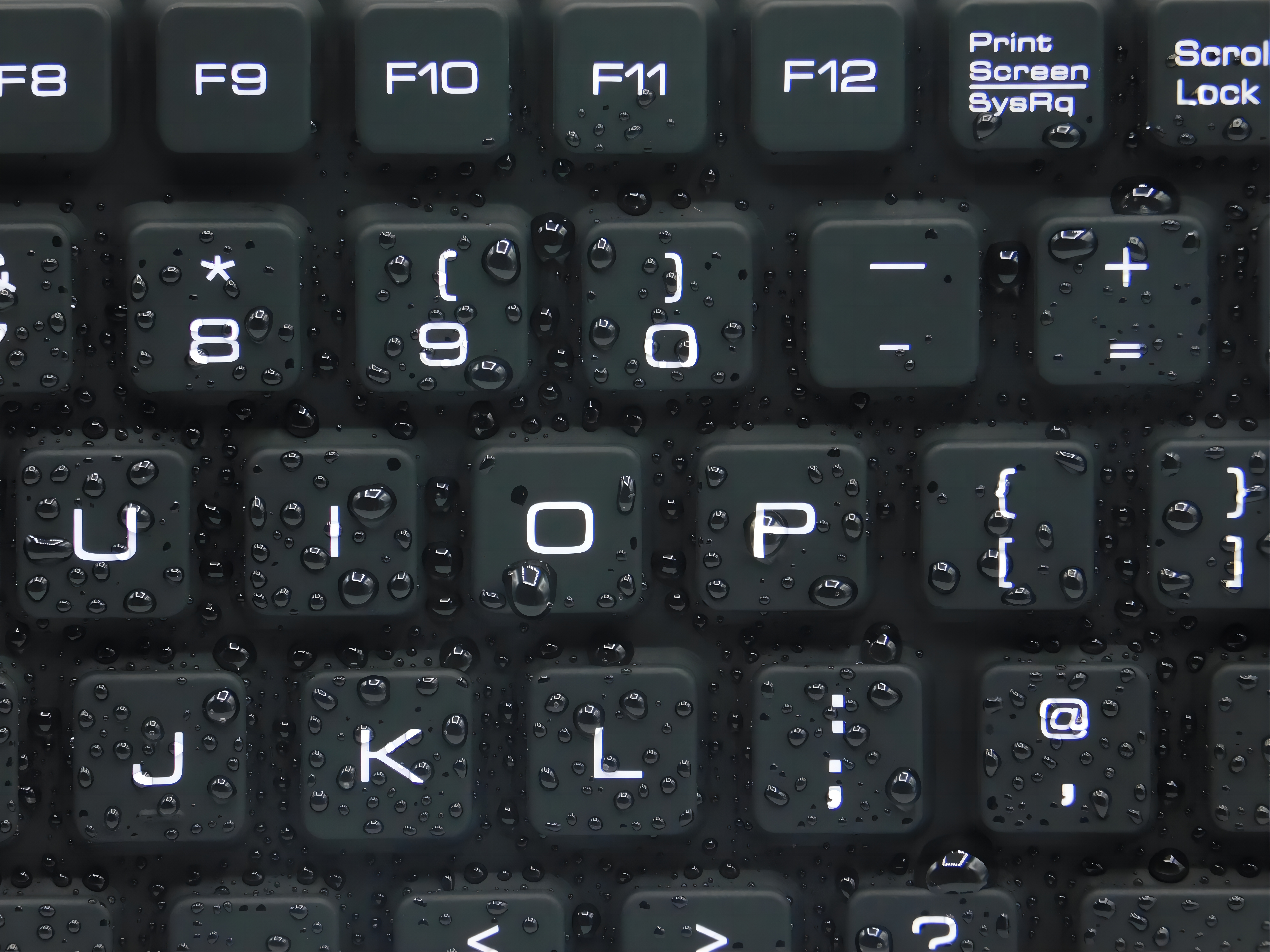

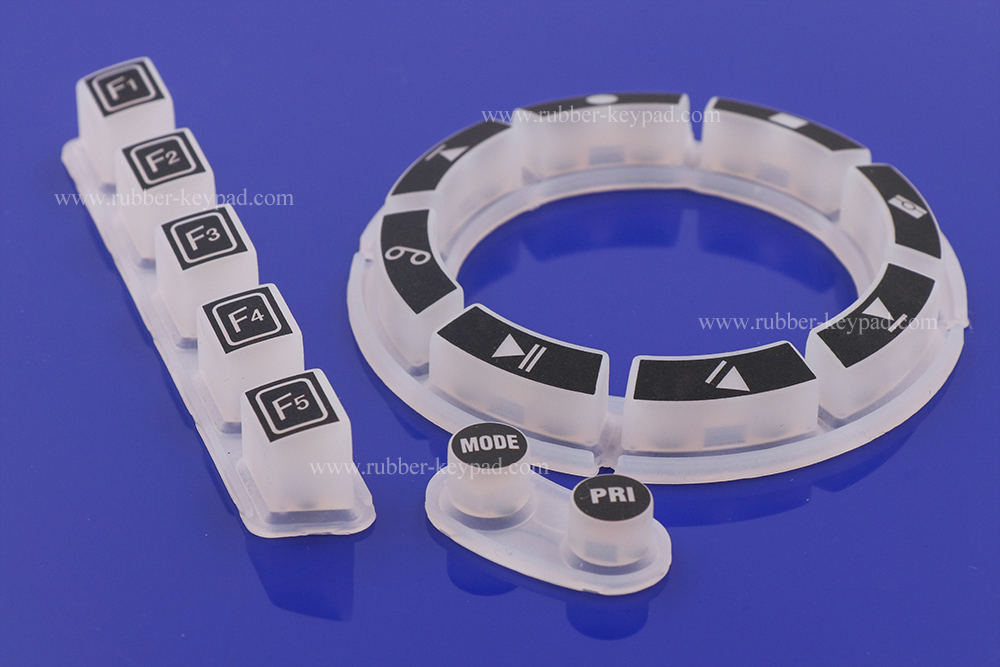

Waterproof Silicone Keyboard

Creat the waterproof wall/groove around the silicone keyboard base that is higher than bottom base, which is the most simple way to do By this way, it can prevent the water or dust from entering into the PCB.

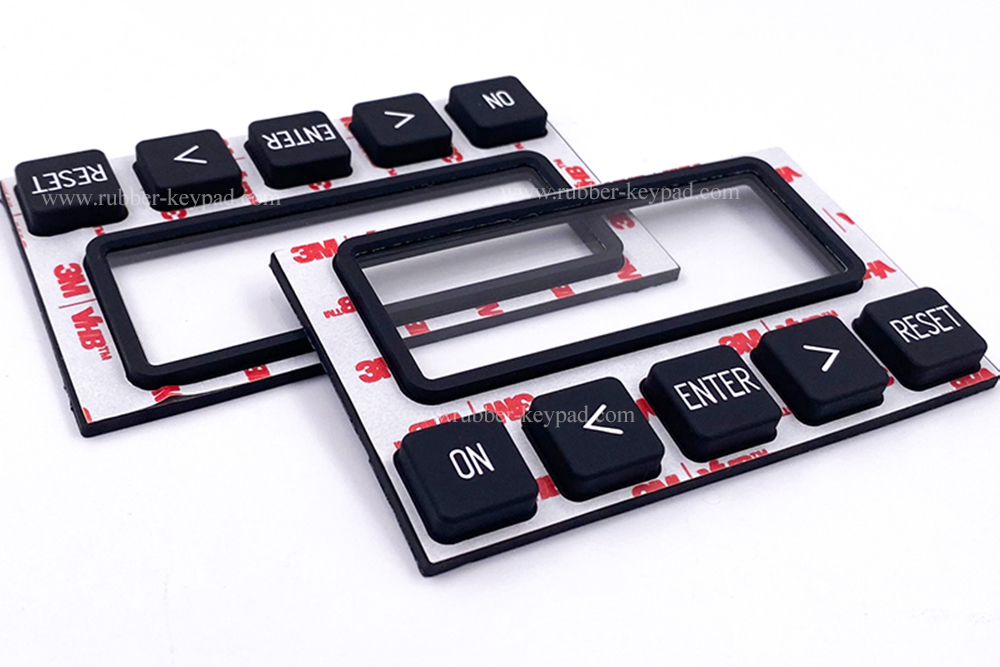

3M Self-Adhesive Silicone Keyboard

Silicone keyboard with 3D self-adhesive layer is also a common processing way to achieve waterproof function of silicone keyboard.It need extra die-cutting tool and positioning tool.Unit price is not cheap.
